27

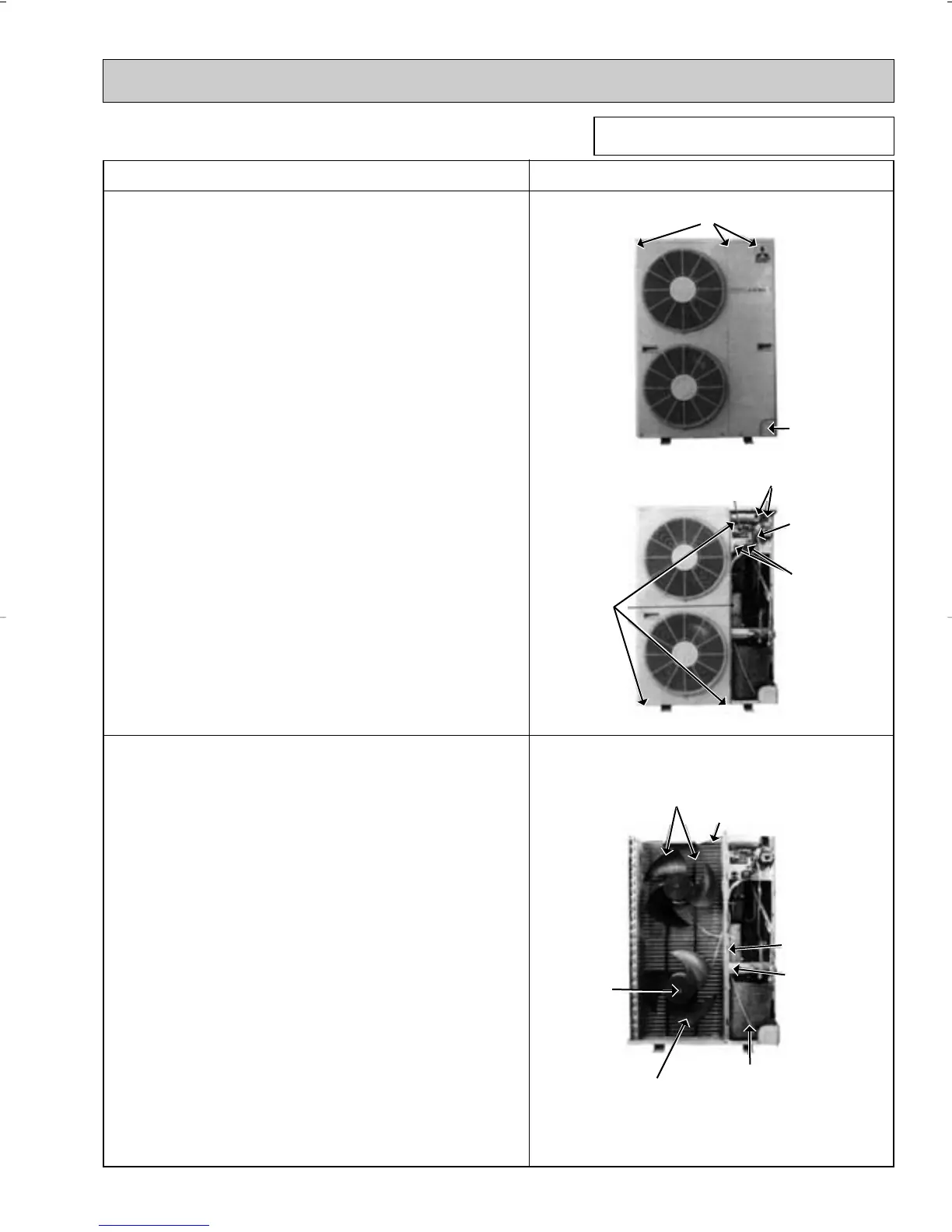

OPERATING PROCEDURE PHOTOS
1. Electrical parts
(1) Remove top panel (3 screws in front, 2 screws in rear)
(2) Remove cover panel (1 screw).
The panel is anchored by clicks to the side panel.
Remove by pulling towards you.
(3) Remove cover panel (1 screw).
The panel is clasped on the right and left sides. After remov-
ing the screw, pull the panel down and remove it by pulling
towards you.
2. Fan motor
(1) Remove front panel (3 screws).
Open the panel to a 45 degree angle and lift to remove. The
panel is clasped at three points on the left side.
(2) Remove propeller (1 set nut).
(3) Remove fan motor (3 screws).
Remove lead connector.
Outdoor unit (PU24EK)
Photo 1
Photo 2
Motor support
Separator support place
High-pressure
switch
Valve bed
Crank case heater
Propeller fan
Propeller
nut
Photo 3
NOTE : All panels are clasped, and should be
removed by shifting up and down.
Screws
Terminal block
52C contactor
Fan motor
capacitor
OC247-E--1.qxp 04.8.11 4:25 PM Page 27
