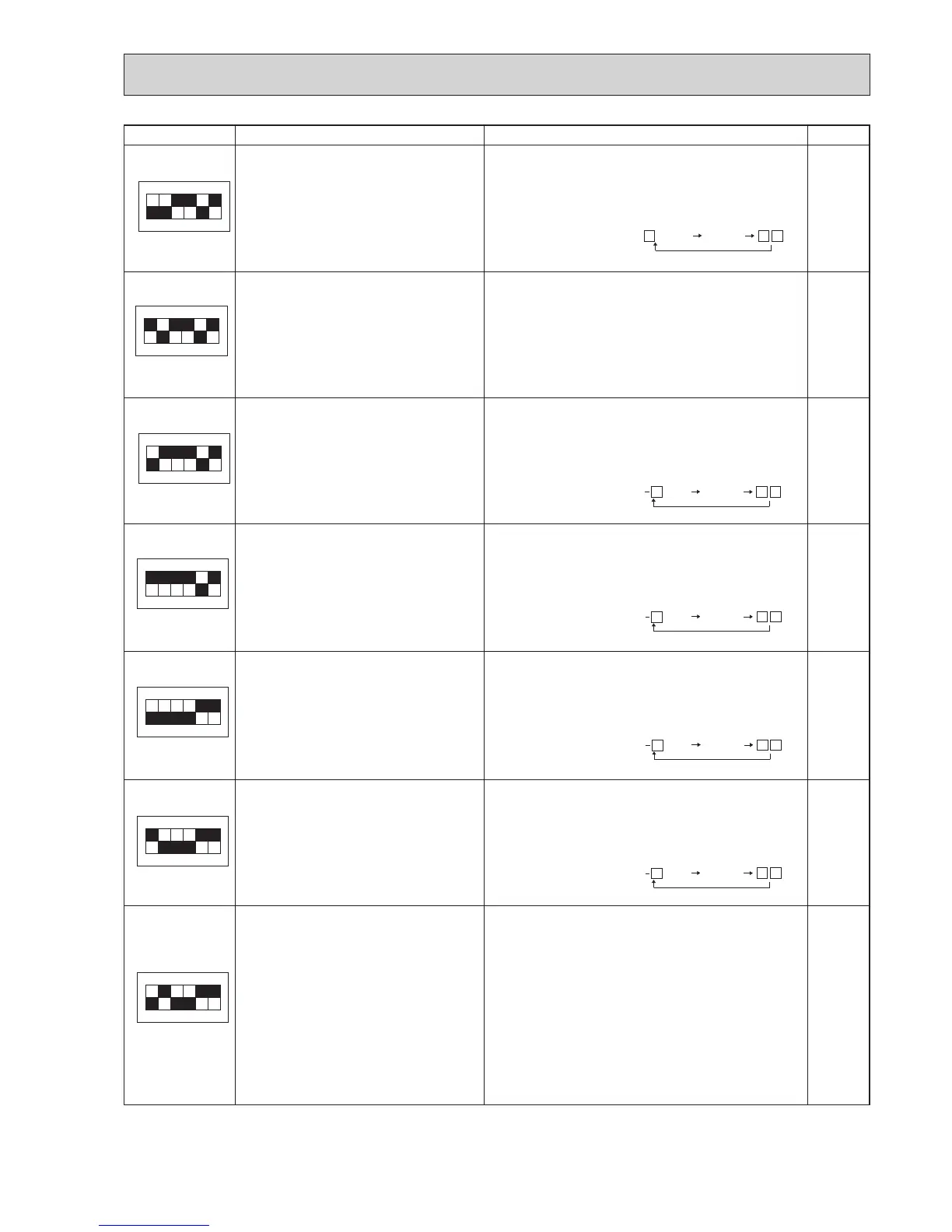

79
SW2 setting
Display detail
Explanation for display Unit
1
ON
2 3 4 5 6
Pulse
LEV-A opening pulse on error occurring
0 to 480
0 to 480
(When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.)
(Example) When 130 pulse;
0.5 s 0.5 s 2 s
:
Indoor intake temperature (TH1) on error
occurring
8 to 39
8 to 39
:
Indoor liquid pipe temperature (TH2) on
error occurring
−39 to 88
−39 to 88
(When the temperature is 0 °C or less, “-” and
temperature are displayed by turns.)
(Example) When - 15 °C;
0.5 s 0.5 s 2 s
Indoor cond./eva. temperature (TH5) on
error occurring
−39 to 88
−39 to 88
(When the temperature is 0°C or less, “–” and
temperature are displayed by turns.)
(Example) When −15°C;
0.5 s 0.5 s 2 s
Outdoor 2-phase pipe temperature (TH6)
on error occurring
−39 to 88
−39 to 88
(When the temperature is 0°C or less, “-” and
temperature are displayed by turns.)
(Example) When −15°C;
0.5 s 0.5 s 2 s
Outdoor air temperature (TH7) on error
occurring
−39 to 88
−39 to 88
(When the temperature is 0°C or less, “-” and
temperature are displayed by turns.)
(Example) When −15°C;
0.5 s 0.5 s 2 s
Outdoor heatsink temperature (TH8) on
error occurring
−40 to 200
−40 to 200
(When the temperature is 0°C or less, “-” and
temperature are displayed by turns.)
(When the temperature is 100°C or more, hundreds
digit, tens digit and ones digit are displayed by
turns.)
30
1
1
ON
2 3 4 5 6
1
ON
2 3 4 5 6
1
ON
2 3 4 5 6
1
ON
2 3 4 5 6
1
ON
2 3 4 5 6
1
ON
2 3 4 5 6
15
15
15
15
:
:
:
:
The black square (■) indicates a switch position.
