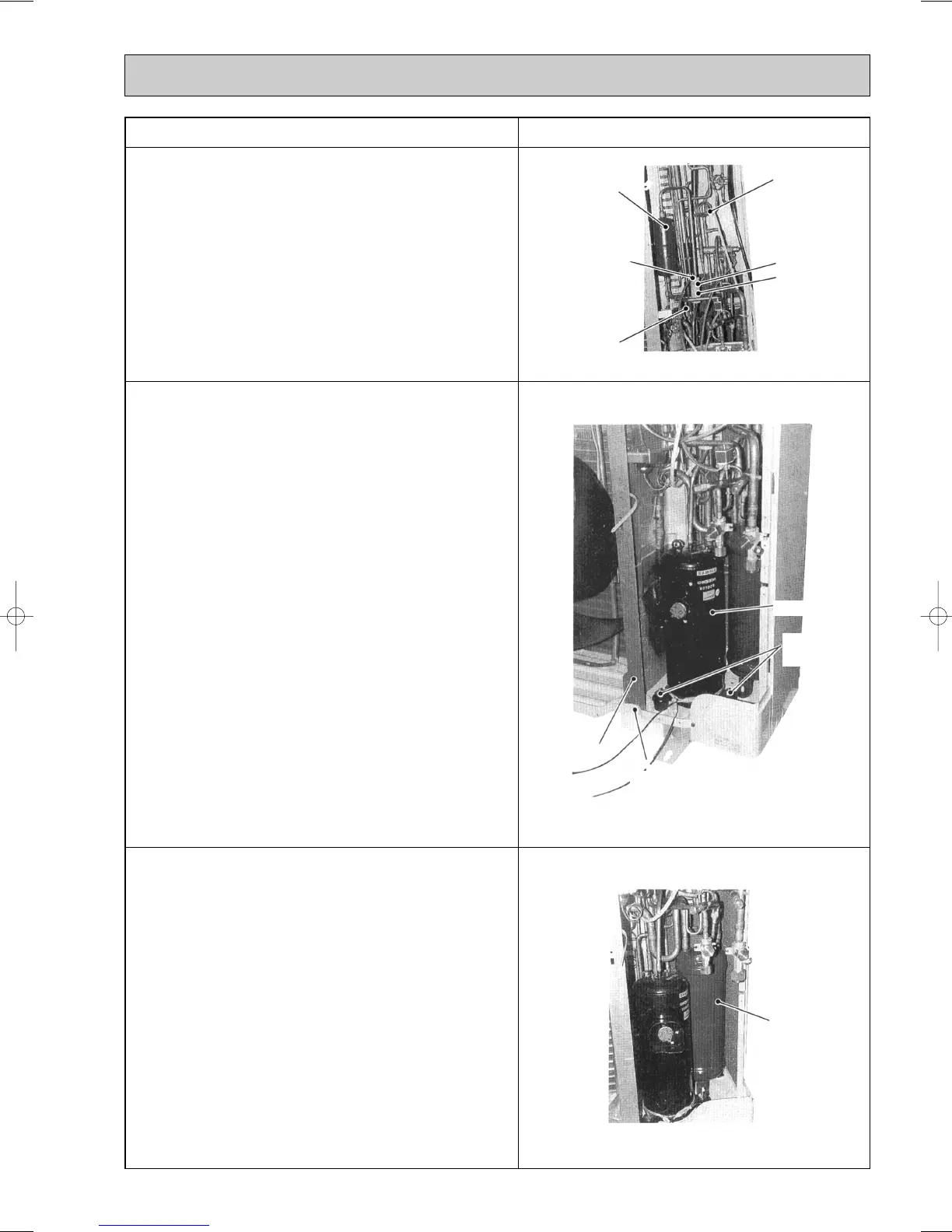

OPERATING PROCEDURE PHOTOS
6. Thermistor disassembly procedures:
(1) Remove the side panel (Refer to 1)
(2) Remove the top panel (Refer to 1)
(3) Remove the electric box (Refer to 4)
(4) Remove the Thermistor (discharge temperature
detection: TH1), (Low saturated pressure temperature
sensor: TH2), (Pipe temperature, detection,
judging defrost: TH5).
✻
To remove TH1, cut the band holding it and remove
the piping cover.
Photo 6
7. Compressor disassembly procedures:
(1) Remove the side panel (Refer to 1)
(2) Remove the top panel (Refer to 1)
(3) Remove the screws (2 pcs : 5o10, 1 pc : 4o10) and the
front panel.
(4) Remove the electrical box (see 4 above).
(5) Remove screws (3 pcs : 4o10, 4 pcs : 5o16) and the
valve bed (including the ball valve mounting portion).
(6) Remove the separator screws. (1 pc : 4o10)
(7) Remove the welded portions of the compressor
discharge and intake pipes.
(8) Remove the side of the separator and the compressor
leg cover. (1 pc : 4o10 screw)
(9) Remove the compressor leg mounting nuts (3 pcs).
(use an adjustable wrench)
(10)Move the separator to the left and remove the com-
presser.
8. Accumulator disassembly procedures:
(1) Remove the compressor (Refer to 7).
(2) Remove the welded portions of the accumulator.
(take care not to strike the rear panel)
(3) Lift up the accumulator and pull it out from the rear.
Photo 7
Photo 8
Oil separator
Thermistor (TH2)
Thermistor
(TH5)
Thermistor
(TH1)
Band
Piping cover
Accumulator
Compressor
Separator
Installation
nuts
Separator installation screw
