Mitsubishi PUMY-71VM - Page 97

97

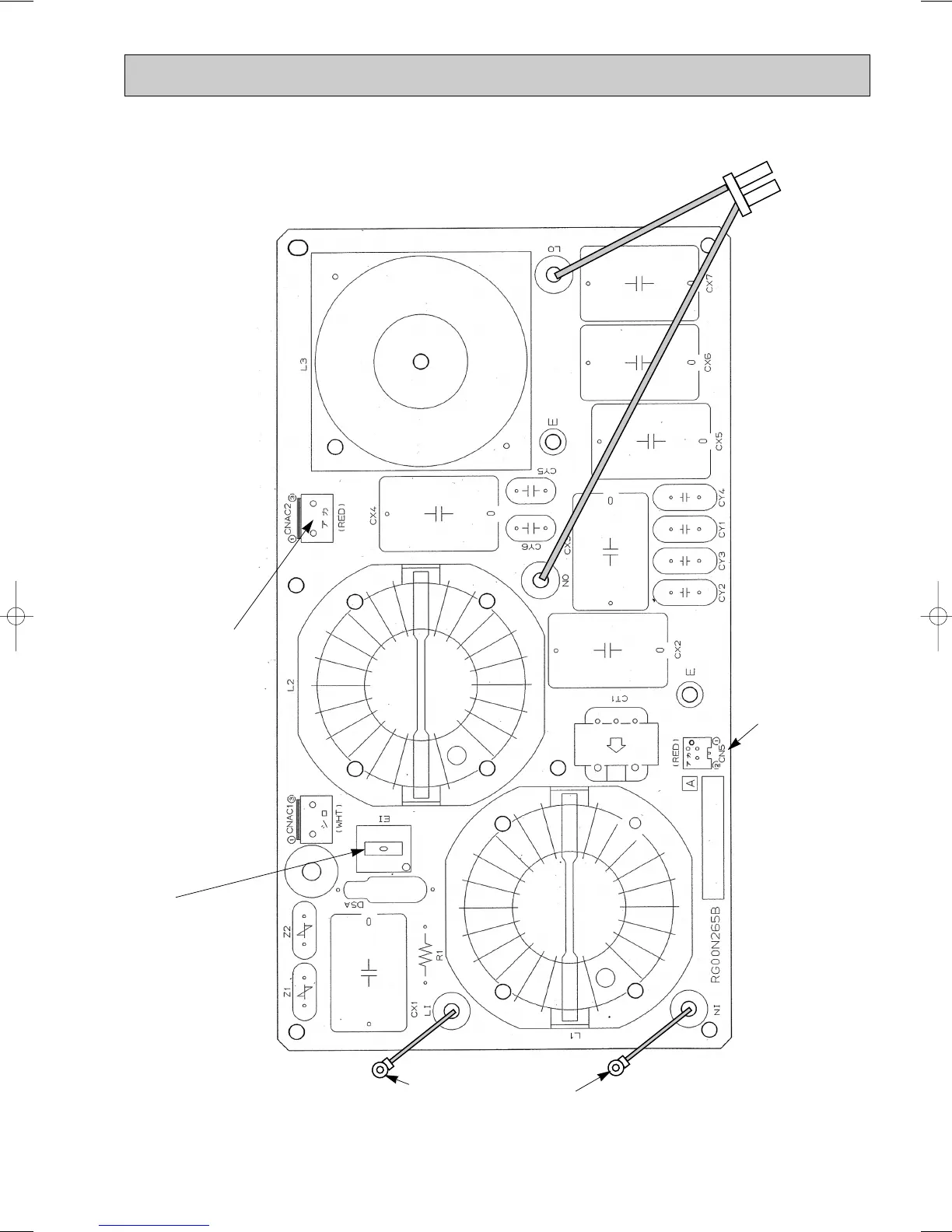

8-8-7. Outdoor noise filter circuit board
PUMY-125VMA
PUMY-125VMA1
CNAC1, CNAC2
220-240V AC
(Connect to the
outdoor multi circuit
board (CNAC))
EI
Connect to
the earth
LI, NI
Voltage of 220-240V AC is input
(Connect to the terminal block(TB1))
CN5
Primary current
(Connect to the
outdoor power
circuit board
(CN5))
LO, NO
Voltage of 220-240V AC is output
(Connect to the outdoor power
circuit board (SC-R, SC-S))
OC183E--4.qxp 10.5.6 0:54 PM Page 97
