9.1 PLC Parameters
9.1.1 Basic model QCPU
9 - 5
9
Parameters
10
Device Explanation
11
CPU Module Processing Time
12
Procedure for Writing Program to CPU ModuleAppendicesIndex
(4) PLC RAS
Make the various settings for the RAS function.
* 1: The Extended instruction error is setting for future extension.
* 2: For details of errors, refer to Self-diagnostics list in Section 6.17 (7).

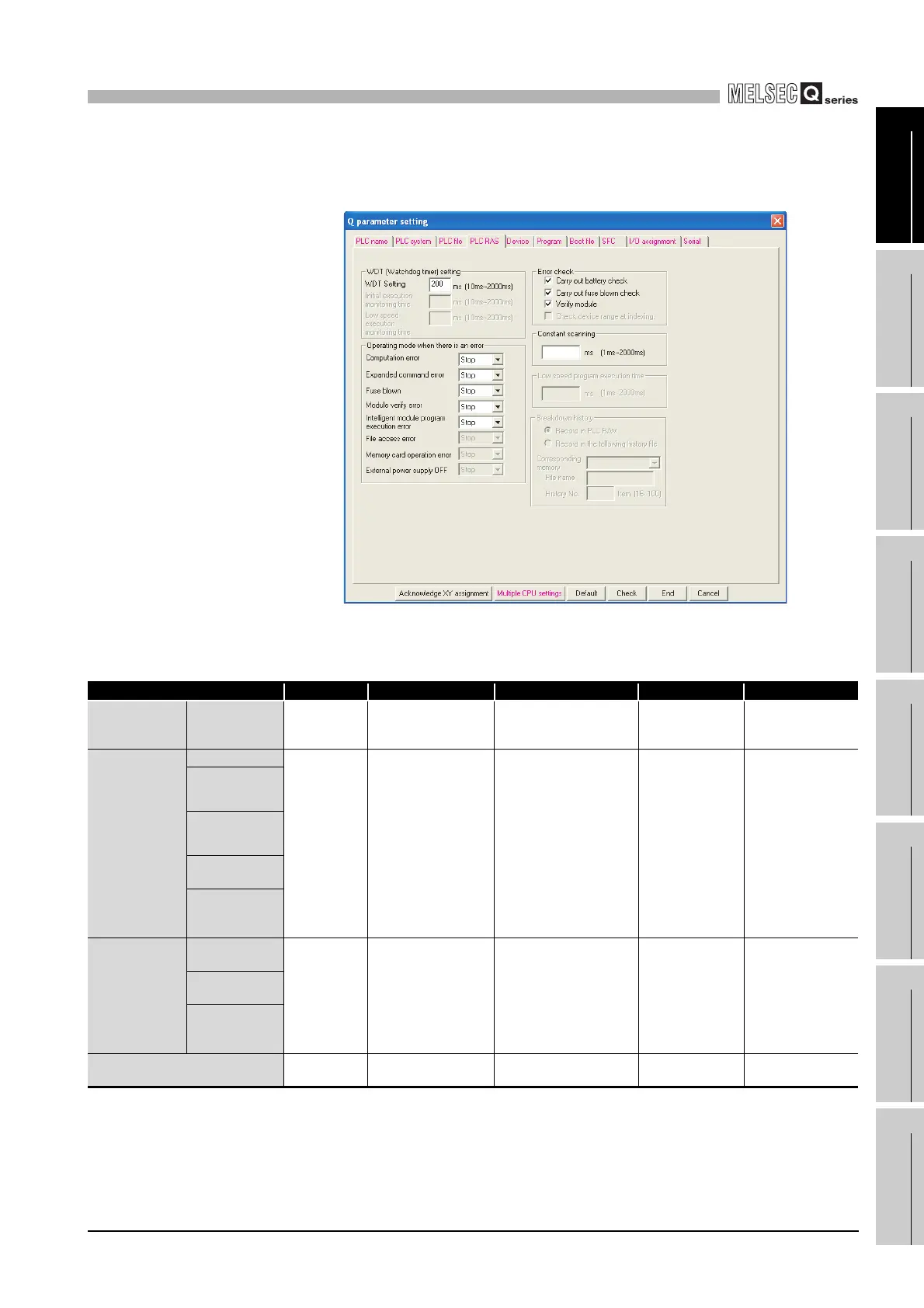

Figure 9.4 PLC RAS
Table9.4 PLC RAS list
Item Parameter No. Description Setting range Default value Reference
WDT (watchdog
timer) setting
WDT setting 3000H
Set the watchdog timer
value of the CPU
module.
10ms to 2000ms
(10ms unit)
200ms Section 3.2
Operating mode
when there is an
error
Computation error
3002H
Set the operation mode
of the CPU module at
error detection.
*2
Stop/Continue Stop Section 6.17
Extended
instruction error
*1
Fuse blown
I/O module
comparison error
Intelligent module
program
execution error
Error check
Carry out battery
check
3001
H
Set whether the
specified error will be
checked or not.
Check/Do not check Check Section 6.17
Carry out fuse
blown check
Carry out
I/O module com-
parison
Constant scanning 3003H
Set the constant scan
time.
1ms to 2000ms (1ms unit) No setting Section 6.2
