5 - 52
5.2 High Performance Model QCPU, Process CPU, Redundant CPU, Universal Model QCPU
5.2.9 Execution of standard ROM/memory card programs (boot run)
5
MEMORIES AND FILES USED IN CPU MODULE
(4) Operation for stopping boot run
To stop boot run and execute operation using the parameters and program files
written to the program memory, perform the following operation by GX Developer.
(a) High Performance model QCPU, Process CPU, or Redundant CPU
1) Write the parameters, which are not set as a boot file, to the program memory.
2) Set the parameter-valid drive DIP switches of the CPU module to the "program
memory". (SW2: OFF, SW3: OFF)
3) Power on the PLC again or reset the CPU module.
(b) Universal model QCPU
1) Remove the memory card and write the parameters for which boot file is not
set to the program memory.
2) Power on the PLC again or reset the CPU module.

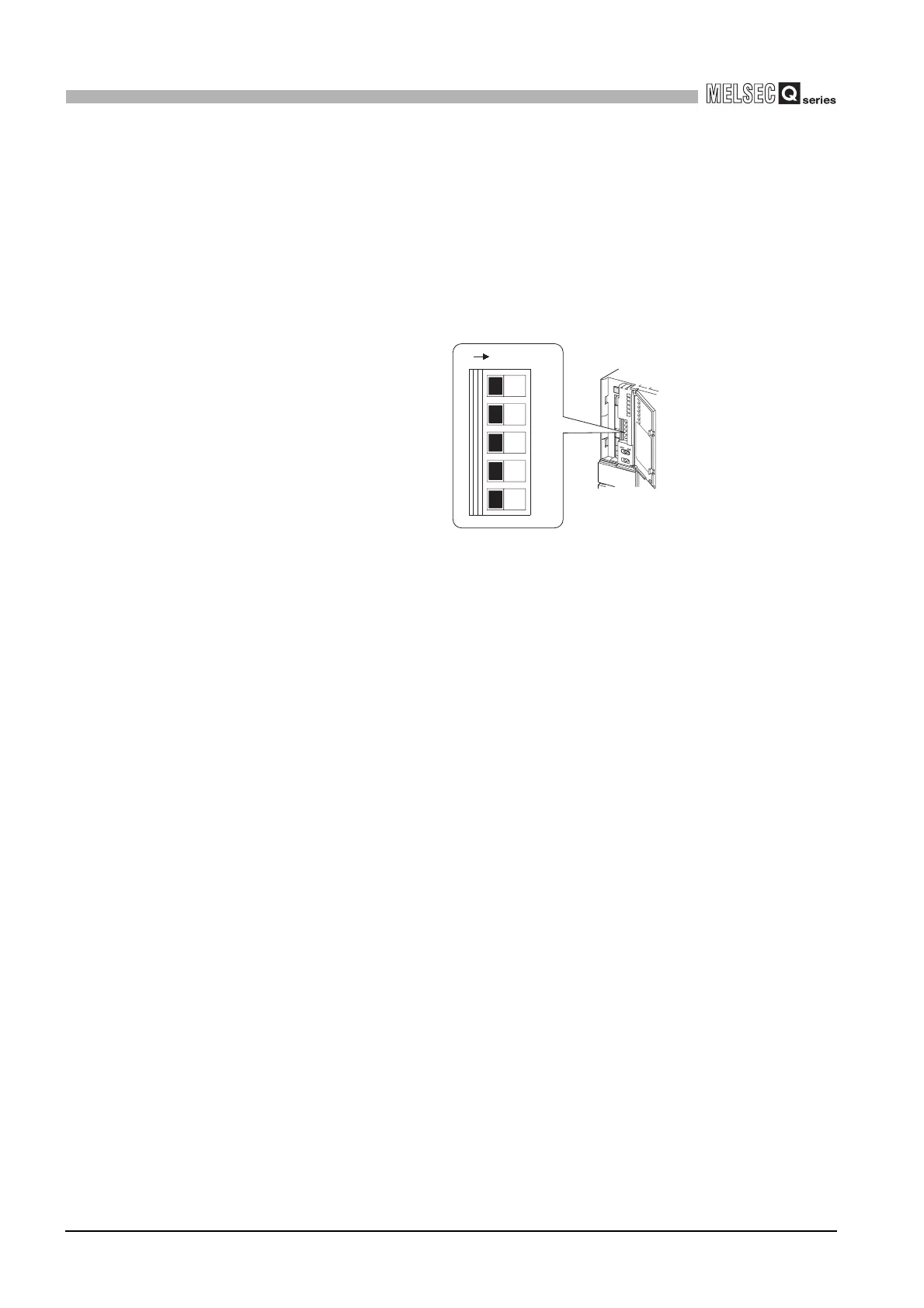

Figure 5.39 When parameter-valid drive DIP switches are set to program memory
1
2
3
4
5
ON SW
