4 - 6 4 - 6
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE OPERATION

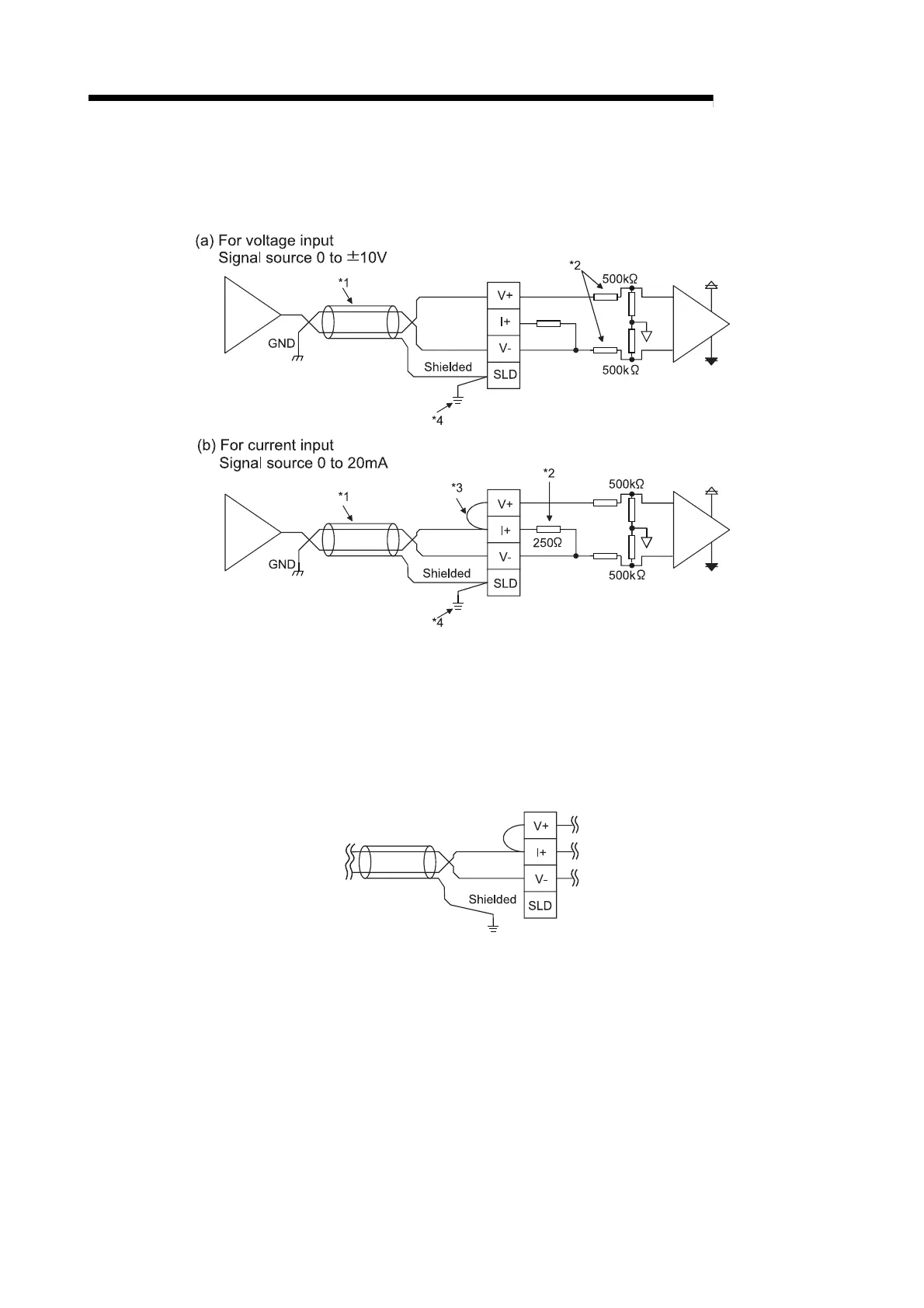

4.4.2 External wiring
(1) Q64AD-GH
*1: Use a 2-core twisted shielded wire for the power wire.
*2: Shows input resistance.
*3: For current input, be sure to connect to (V+) and (I+) terminals.
*4: Be sure to ground the shield wire of each channel.
The SLD terminal can be used when grounding, however it has not been
wired inside the board.
Ground it as shown in the diagram shown above or below.
In addition, ground the FG of the power supply module.
To Next Page
