2 SYSTEM CONFIGURATION
2.2 Precautions on System Configuration
(1) For use with the Redundant CPU
(a) Dedicated instruction
The dedicated instruction cannot be used.
(b) GX Configurator-AD connection
GX Configurator-AD cannot be used when accessing the Redundant CPU
via an intelligent function module on an extension base unit from GX
Developer.

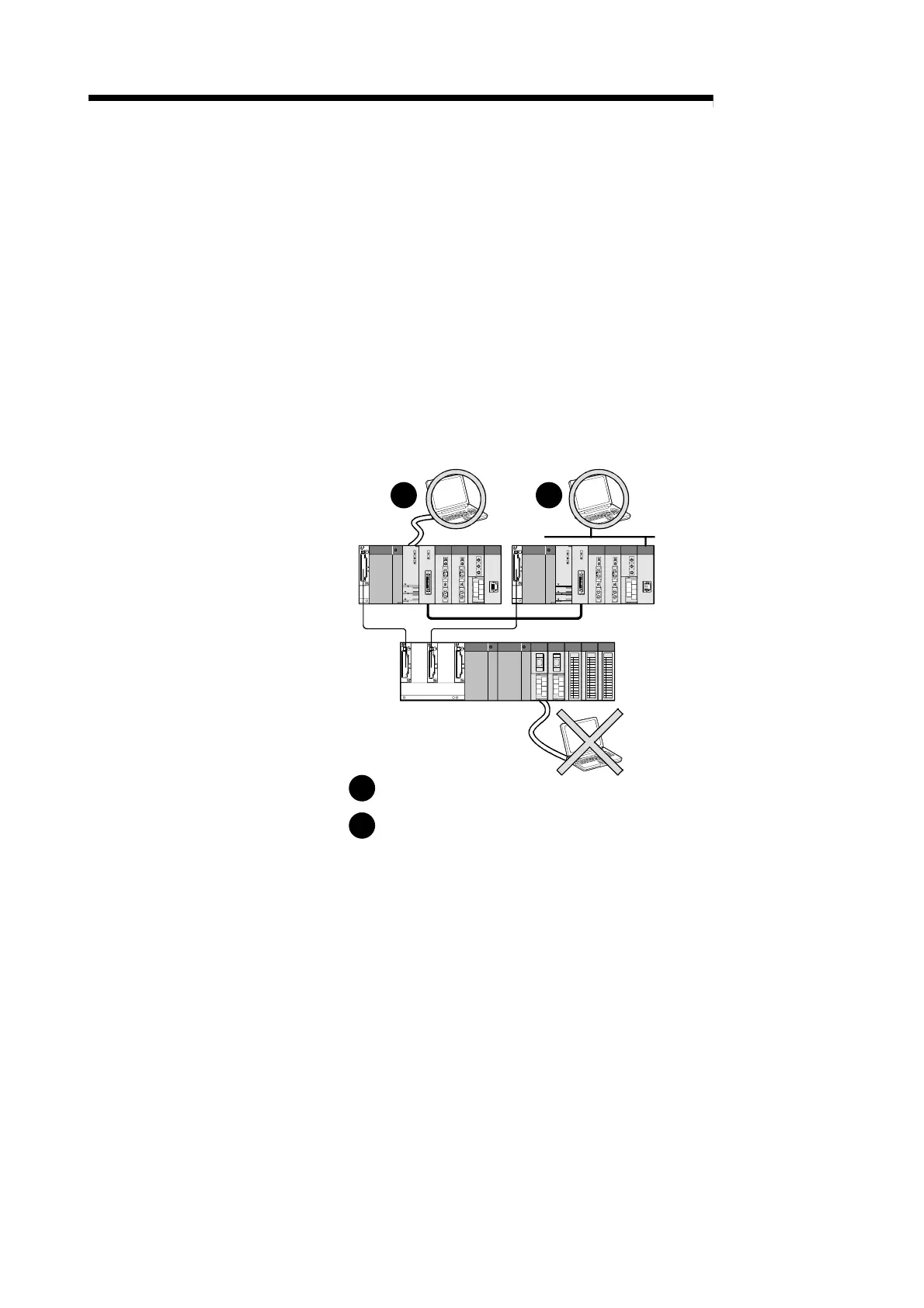

Make a connection to the Redundant CPU by way of the communication
paths indicated below.
2
1
Main base unit
Extension base unit
1 2
Direct connection to the CPU
Connection through an intelligent function module on the main base unit
(
Throu
g
h Ethernet module
,
MELSECNET/H module
,
or CC-Link module
)
(GX Configurator-AD cannot be used.
)
