Mitsubishi Q64AD-GH User Manual

4 - 9 4 - 9
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE OPERATION
4.5 Switch Setting for Intelligent Function Module
The settings for the intelligent function module are performed using the I/O assignment
settings for GX Developer.
(1) Setting item
The intelligent function module switches consist of switches 1 to 5 and are set
using 16 bit data. When the intelligent function module switches are not set, the
default value for switches 1 to 5 is 0.

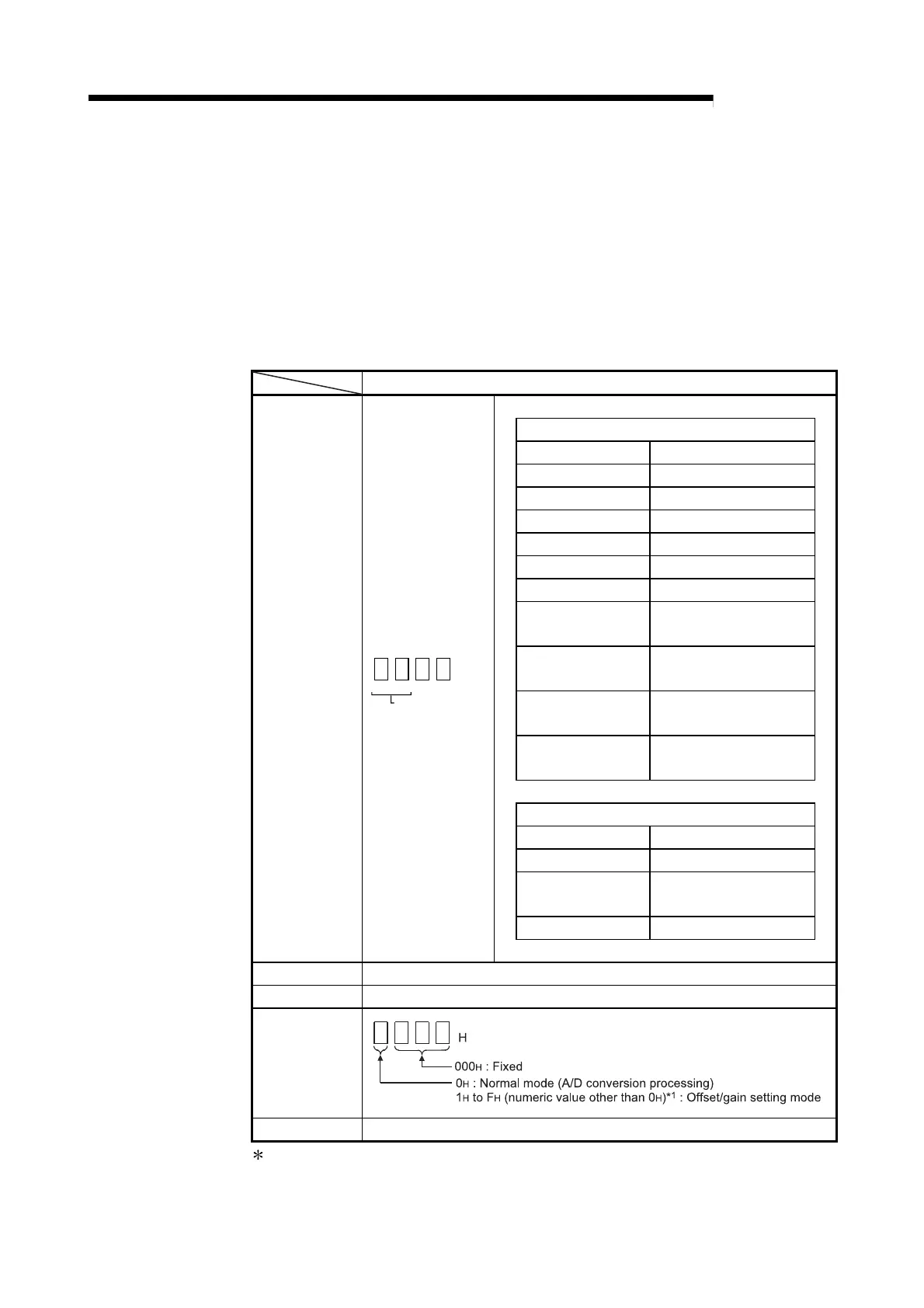

Table 4.1 Switch setting item
Setting item
Switch 1
Input range setting
CH4 CH3 CH2 CH1
H
Fixed at 00H
for Q62AD-DG
H
Q64AD-GH
Analog input range Input range setting value
4 to 20 mA 0H
0 to 20 mA 1H
1 to 5 V 2H
0 to 5 V 3H
– 10 to 10 V 4H
0 to 10 V 5H
4 to 20mA
(Extended mode)
A
H
1 to 5V
(Extended mode)
BH
User range setting
(Uni-polar)
EH
User range setting
(Bi-polar)
F
H
Q62AD-DGH
Analog input range Input range setting value
4 to 20 mA 0H
4 to 20mA
(Extended mode)
A
H
User range setting FH
Switch 2 Empty
Switch 3 Empty
Switch 4
Switch 5 0H : Fixed
1: Setting any value within the setting range will provide the same operation.
When the setting range is 1
H to FH, set 1H for example.
