8 INSPECTION AND MAINTENANCE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
137
Pub. No. K29001-00320 Revision: 1

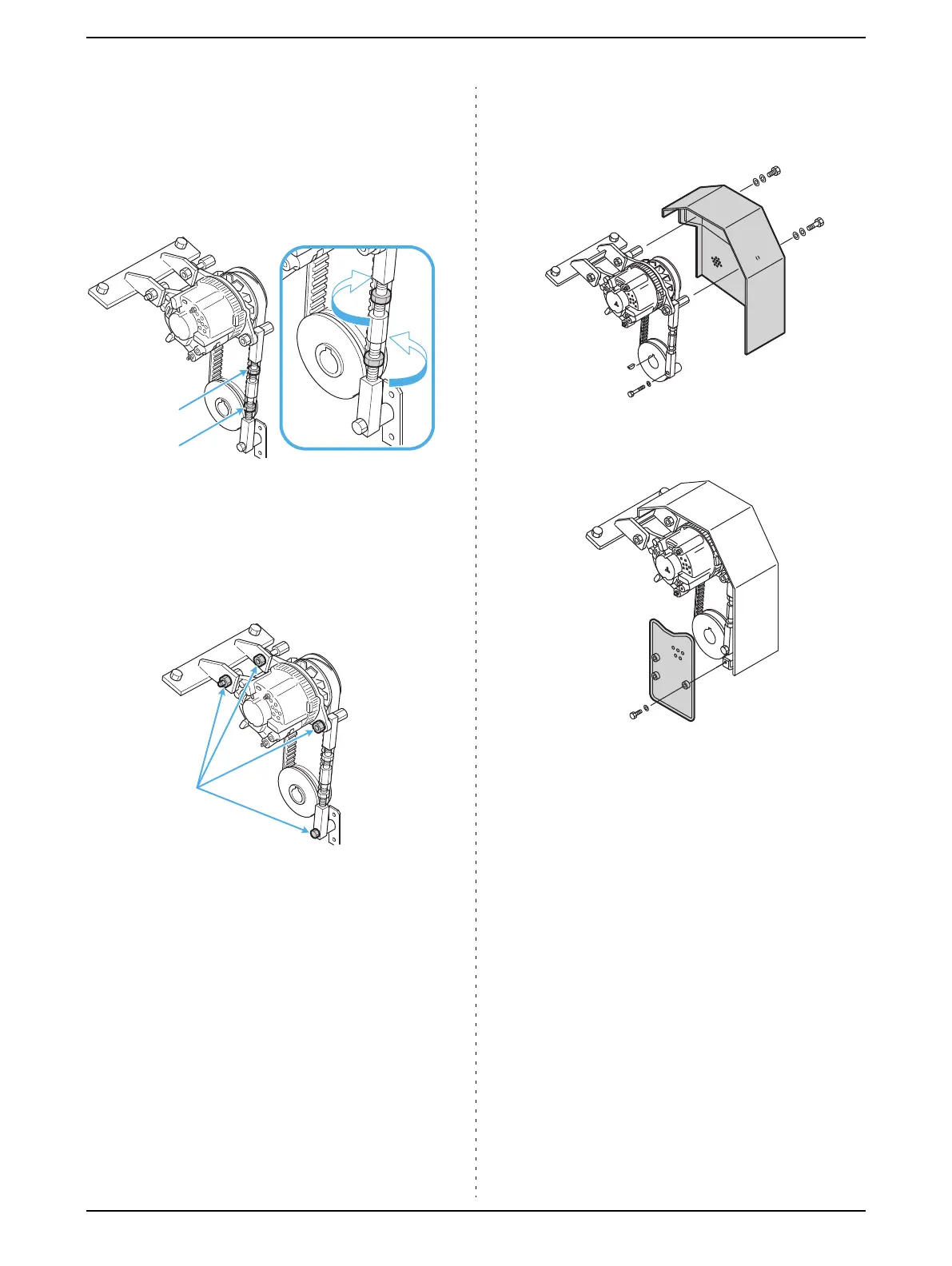

5 After adjusting deflection, tighten
the lock nut of the adjusting rod.
• The upper lock nut (2) has a right-hand
thread.
• The lower lock nut (3) has a left-hand thread.
• Tool: Wrench
Fig. 8-9 Belt Tension - Adjust (Lock Nut)
6 Tighten the retaining bolts (1) of the
alternator and the adjusting rod
which were loosened in Step 2.
• Tool: Wrench
Fig. 8-10 Belt Tension - Adjust (Retaining Bolt)
7 Install the belt cover of the
alternator which was removed in
Step 1.
Fig. 8-11 Belt Cover - Install
8 Install the front cover.
Fig. 8-12 Front cover - Install
(3)
(2)
(1)

Mitsubishi S16R Series Specifications

General

Fuel Type	Diesel
Cooling System	Water-cooled
Starting System	Electric starter
Engine Type	4-cycle, water-cooled, direct injection
Aspiration	Turbocharged, Intercooled
Rotation	Counter-clockwise (viewed from flywheel side)
Fuel System	Direct injection
Lubrication System	Forced lubrication
Engine Model	S16R
