8 INSPECTION AND MAINTENANCE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
160
Pub. No. K29001-00320 Revision: 1
3 Remove the oil filter.
• Tool: Filter wrench

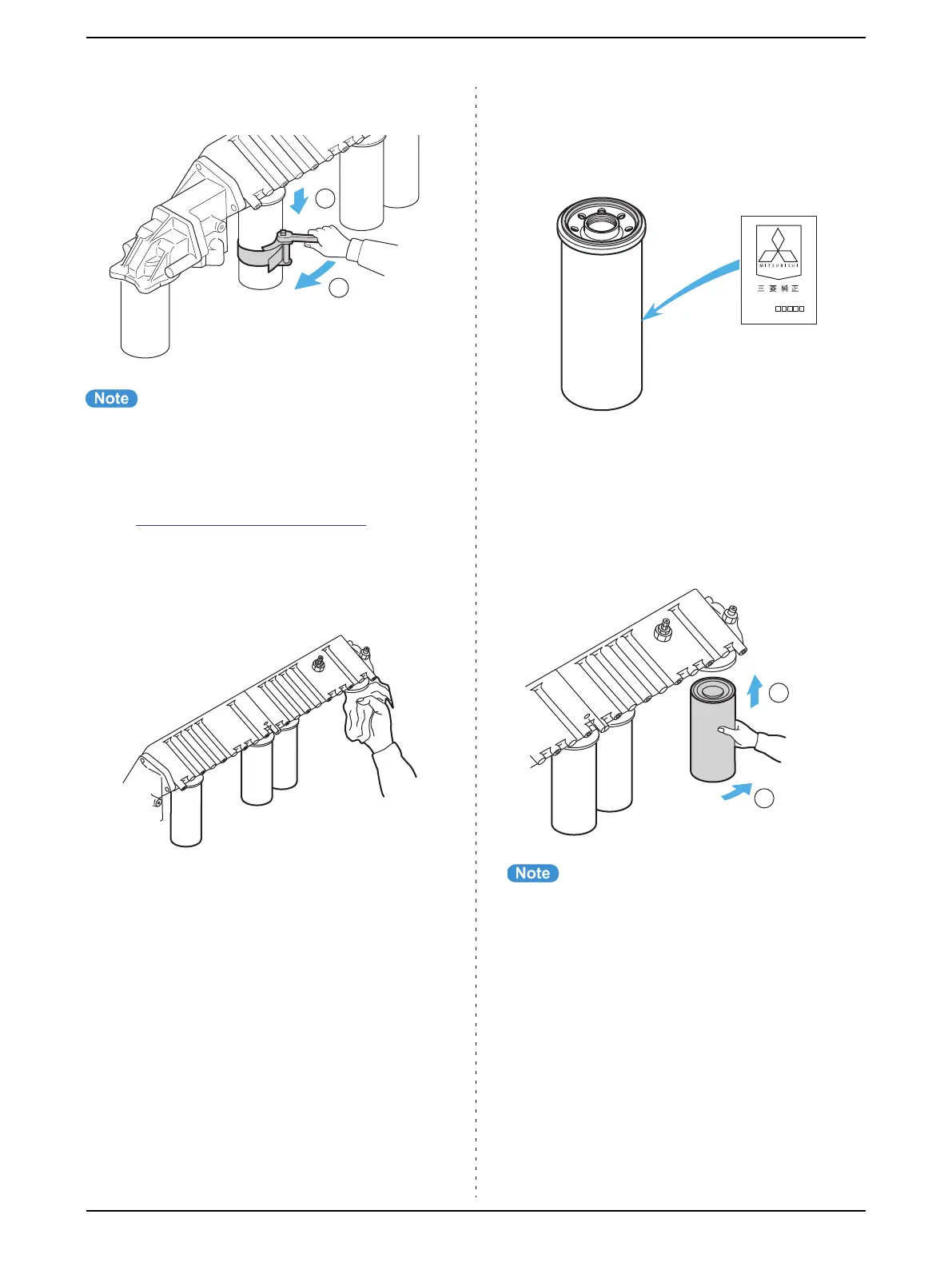

Fig. 8-62 Oil Filter - Remove
• Remove it slowly so that engine oil
will not spill.
• Cut the removed oil filter and check
the element. If metal particles are
found, contact your SME dealer
"CONTACT LIST" (→ Page 8).
4 Thoroughly wipe off engine oil on the
oil filter installing surface of the
filter bracket with a waste cloth.
Fig. 8-63 Oil Filter Installing Surface - Clean
5 Prepare a new oil filter.
1) Check that the gasket is properly seated
in the groove.
2) Apply clethe engine oil to the gasket.
Fig. 8-64 Oil Filter Gasket
6 Install the oil filter in Step 5 on the
filter bracket.
• When the oil filter gasket comes in contact
with the installing surface of the filter
bracket, further tighten the oil filter by 3/4 to
a full turn.
Fig. 8-65 Oil filter - Install
• If the oil filter is slippery and
therefore hard to install, wipe the oil
filter surface with a waste cloth
thoroughly, and tighten the oil filter
with anti-slip gloves.
