Chapter 8 PERIODIC INSPECTION AND MAINTENANCE PROCEDURES
Oil Filter and Bypass Oil Filter - Replace
1. Clean the area around oil filters.
2. Prepare drip pans, and place them under oil filters
and bypass oil filter.
3. Using a filter wrench, remove oil filters and bypass
oil filter.
4. Thoroughly wipe off oil on the oil filter mounting
surface of the filter bracket with a cloth.
5. Check new oil filters and bypass filter to make sure
the gasket is properly seated in the groove.
6. Apply clean engine oil to gasket.
7. Install oil filters and bypass oil filter to the filter
bracket. When the gasket comes in contact with
the mounting surface of the filter bracket, further ro-
tate 3/4 to a full turn.

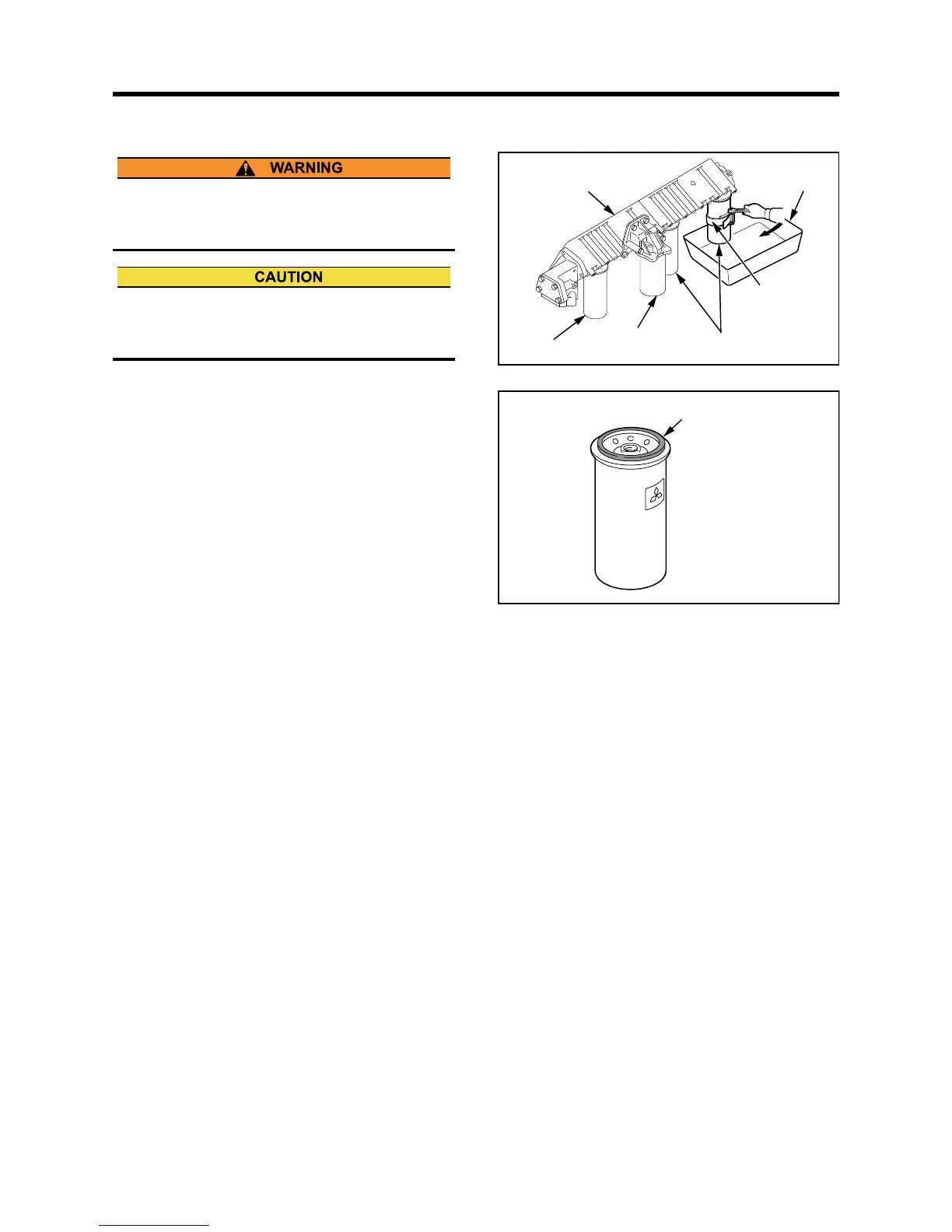

Fig. 8-15 Oil Filter and Bypass Oil Filter - Replace
Fig. 8-16 Oil Filter
If filter case is dented, do not use the filter. It can
damage the filter during operation, and may result in
a fire due to oil leaks.
Do not use a filter wrench to install the oil filter and
bypass oil filter. Tighten the filters by hand.
Be careful not to dent or scratch oil filter surfaces.
Bypass
oil filter
Filter bracket
Oil filter
Oil filter
Filter
Container
Apply engine oil
to gasket.
