STARTER
ENGLISH
ELECTRICAL SYSTEM
29.2.4 Overrunning Clutch
Make sure the pinion shaft rotates smoothly when
turned clockwise (in the drive direction) and locks when
turned counterclockwise. If the pinion shaft’s operation
is defective, replace the overrunning clutch.
29.2.5 Gear Shaft Thrust Gap
Adjustment of the gear shaft’s thrust gap is not
necessary.
29.2.6 Armature Thrust Gap
Adjustment of armature’s thrust gap is not necessary.

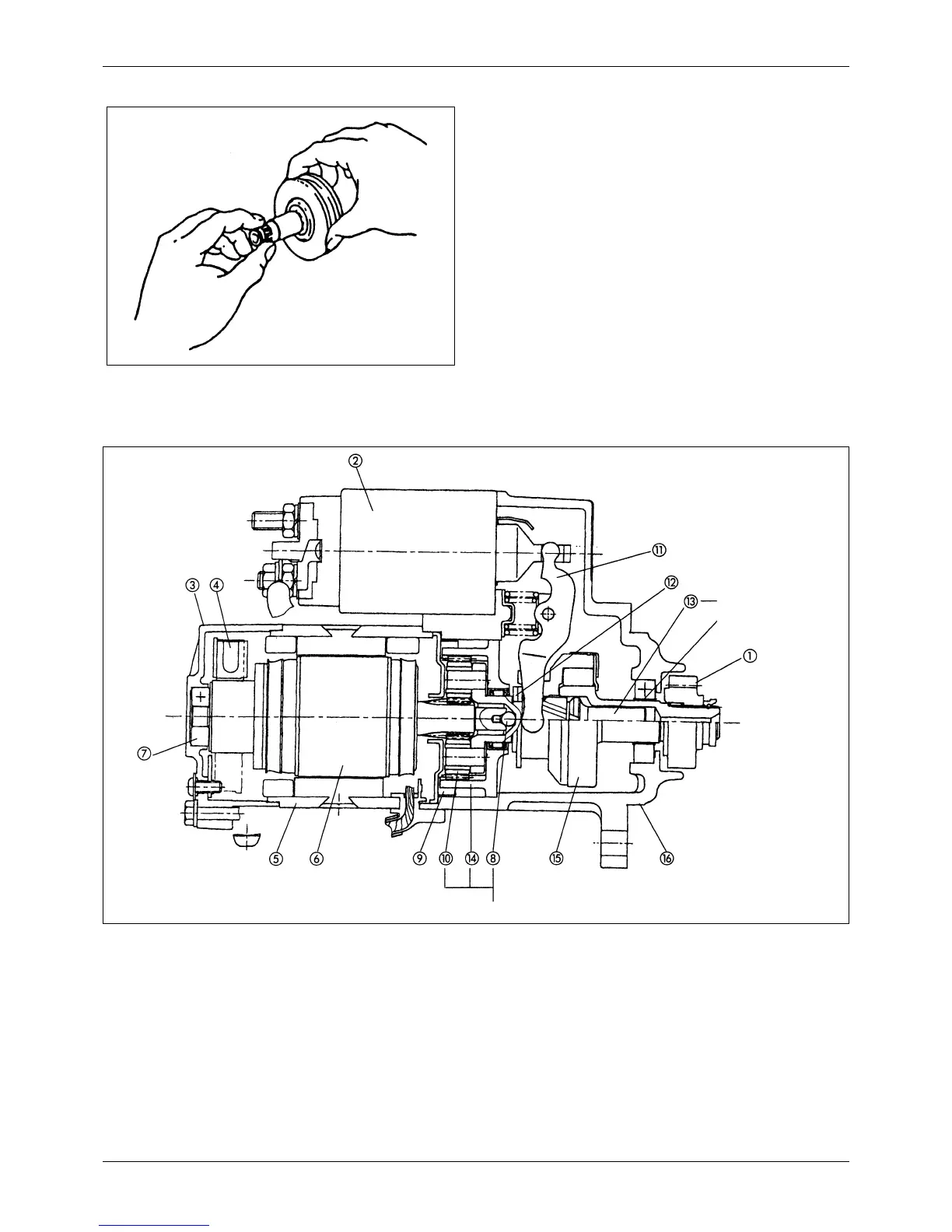

29.3 Assembly
Assembly sequence
16 → 12 → 13 → 14 → 15 → 1 → 10 → 11 → 9 → 8 →
5 → 6 → 7 → 4 → 3 → 2
Apply grease
Apply grease
Apply grease
