INSPECTION
ENGLISH
AIR INLET SYSTEM AND EXHAUST SYSTEM
AIR INLET SYSTEM AND EXHAUST SYSTEM
45 INSPECTION
45.1 Inspection procedure
Using a straight edge and a feeler gauge, check the
flange faces of the manifold for warpage. If warpage
exceeds the limit, recondition or replace the manifold.
Use a new packing
Check for cracks
Use a new gasket
Check for cracks
Use a new gasket
Check for cracks

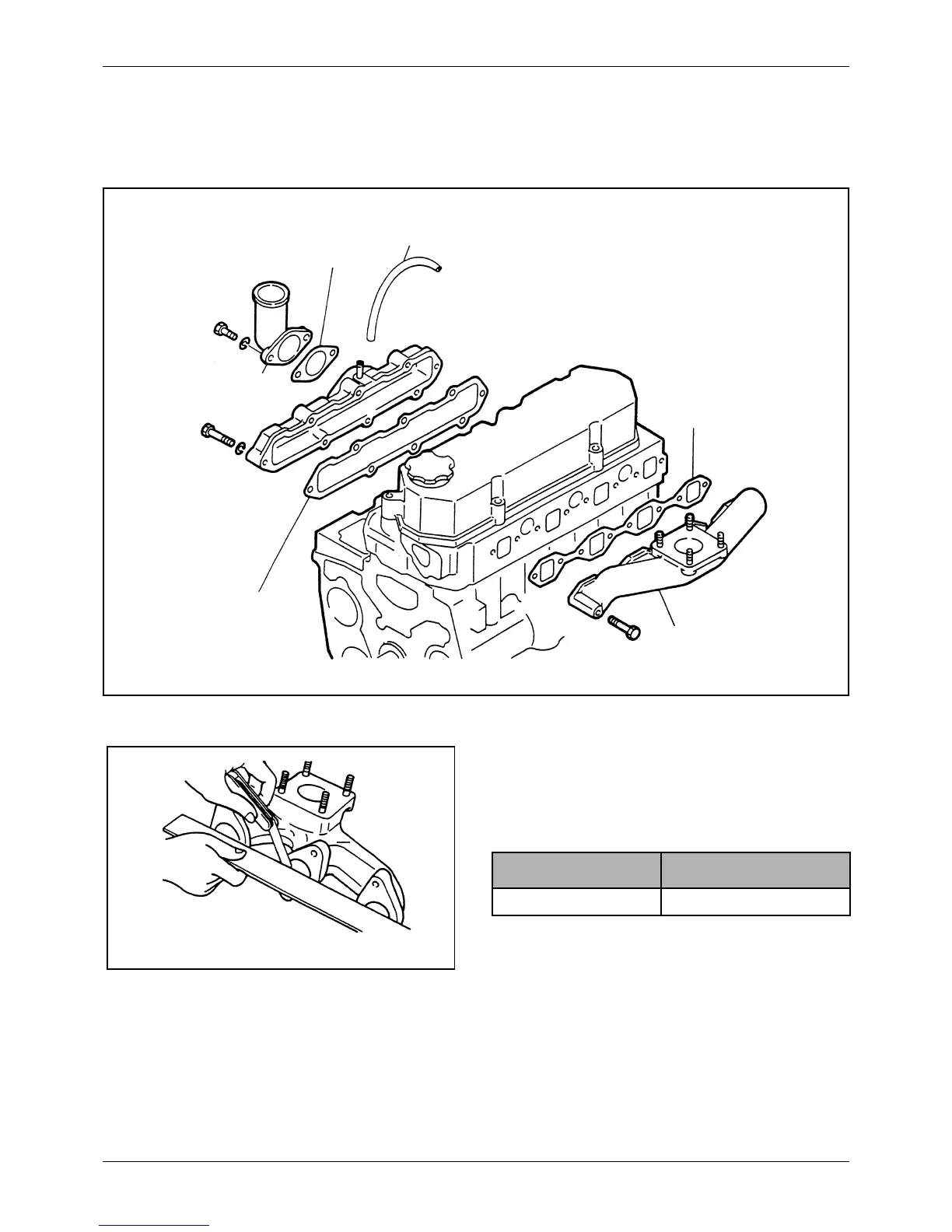

Figure 248 Inspection points
Figure 249 Checking manifold for warpage
Item Standard
Warpage of manifold 0.15 (0.005 9)
Table 5 Inspection, unit mm (in.)
