Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
FUEL INJECTION PUMP FUEL SYSTEM
154 / 195

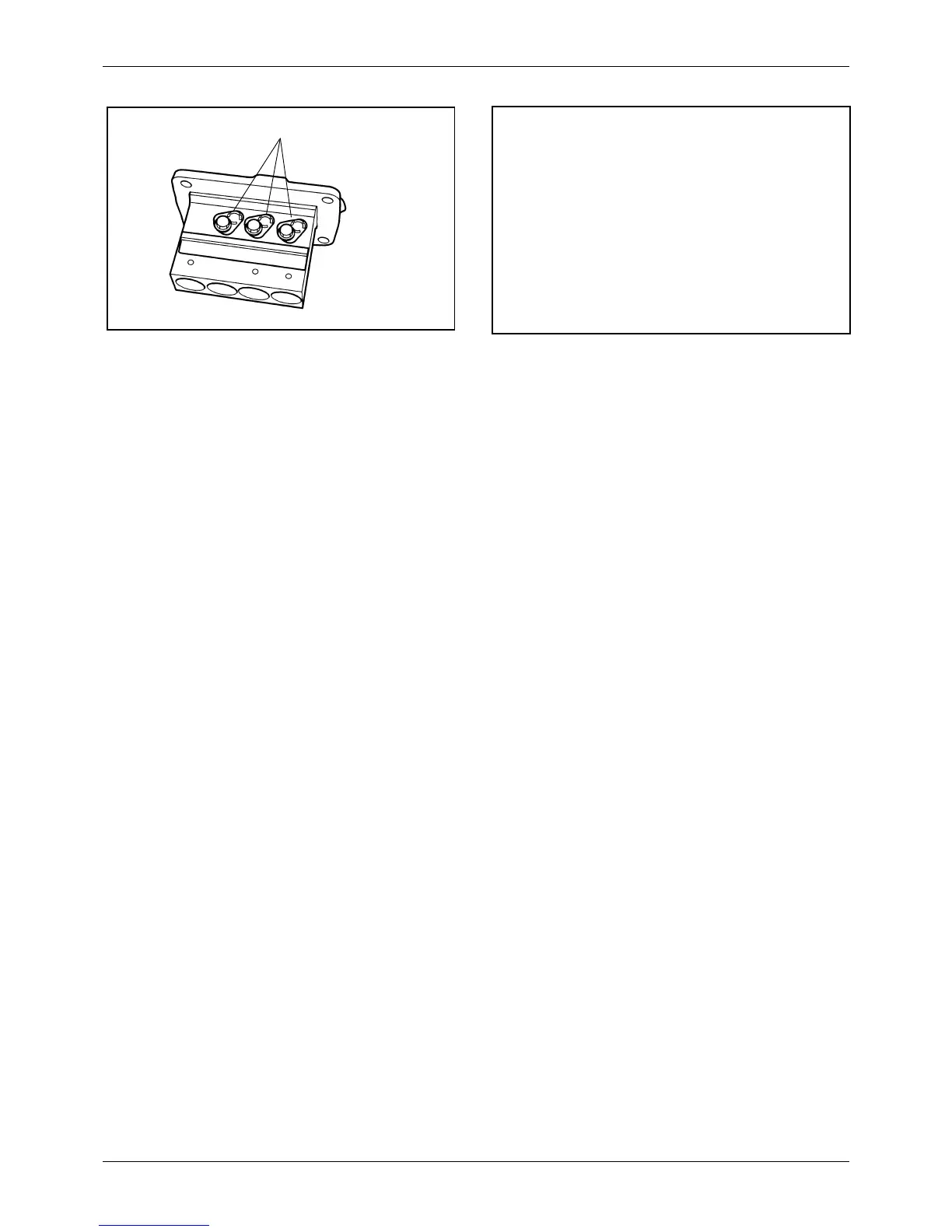

Figure 227 Adjusting plates
Adjusting plates
NOTE
a. When replacing the plungers and barrels or
delivery valves, do not loosen the adjusting
plates between the pumping elements.
b. After these parts have been replaced, the
injection quantity must be measured. Pump
Tester Cam Box is needed for measurement of
injection quantity.
c. Keep the disassembled injection pump parts in
clean diesel fuel.

Mitsubishi S3L Specifications

General

Engine Model	S3L
Number of Cylinders	3
Aspiration	Naturally aspirated
Fuel Type	Diesel
Starting System	Electric starter
Cooling System	Water-cooled
Lubrication System	Forced lubrication by trochoid pump
