t
2. Insert the push rod of the tool into the bore in the
piston for the piston pin and, using an arbor press,
remove the piston pin.
3. Use this Piston Pin Setting Tool to install the
connecting rod to the piston.
t

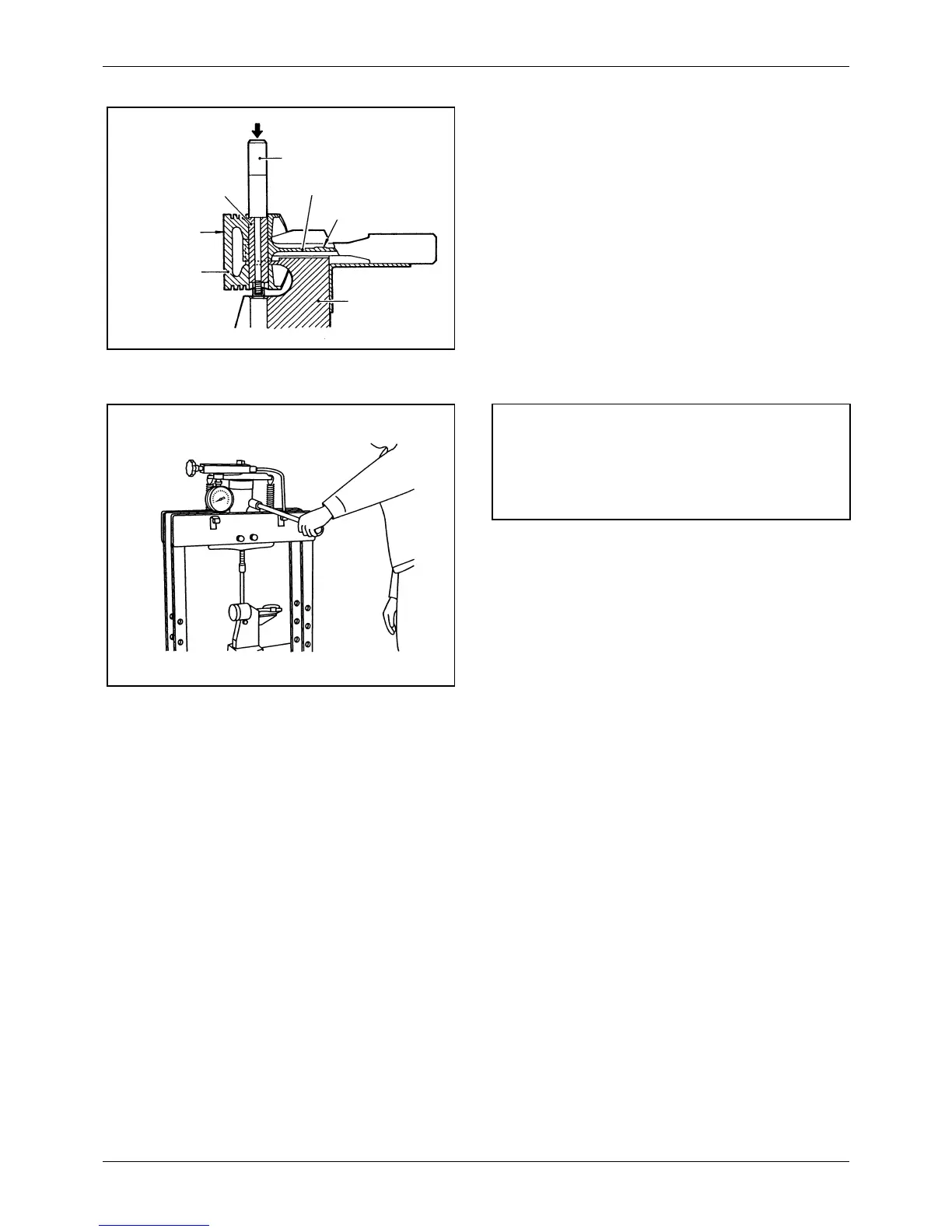

Figure 61 Removing piston pin (1)
Push rod (tool)
Connecting rod
Identification mark
Tool body
Piston pin
Arrow mark
Piston
Figure 62 Removing piston pin (2)
îîCAUTION
Do not attempt to remove the piston pin by tapping.
Replace a piston pin which needs a greater force for
removal.
