Mitsubishi S6R2 Series User Manual

10-17
Chapter 10 COOLING SYSTEM

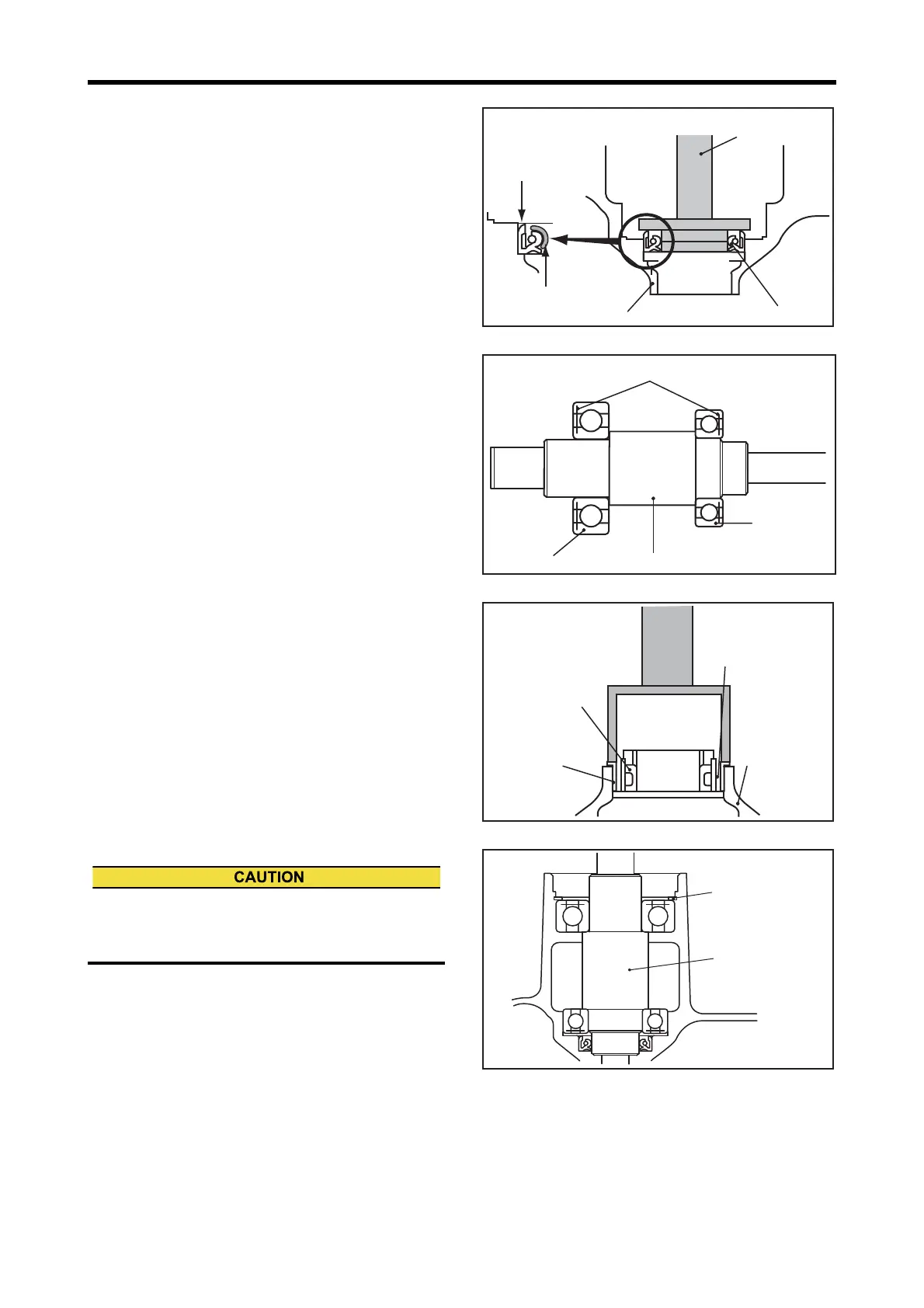

2.8.1 Oil Seal - Install
(1) Tap-in the oil seal with installer making sure that oil
seal surface is flush with water pump housing face.
(2) Apply engine oil to the oil seal lip.
Oil Seal - Install
2.8.2 Water Pump Bearings - Install
Install the bearing to water pump shaft. Orient each bearing
so that its shield plate faces to oil seal side when installing
the bearing to shaft.
Water Pump Bearings - Install
2.8.3 Unit Seal (Stationary Side) - Install
(1) Apply sealant (ThreeBond 1102) to the outer circum-
ference of unit seal (stationary side.)
(2) Tap-in the unit seal into water pump case with unit seal
installer.
Unit Seal (Stationary Side) - Install
2.8.4 Water Pump Shaft - Install
(1) Press-in the water pump shaft slowly into pump case
until the end of ball bearing comes into contact with
pump case.
(2) Securely install the snap ring to groove.
Water Pump Shaft - Install
Make it flush.
Application of
engine oil
Case
Oil seal
Installer
Impeller side
Shield plate
Bearing
Bearing
Water pump shaft
Water pump
case
Unit seal
Apply ThreeBond
1102 to outer
circumference.
Application
of sealant
Be careful not to damage the water pump shaft by oil
seal and unit seal (fixing side) when press-fitting the
water pump shaft.
Snap ring
Water pump shaft
