5-12
Chapter 5 DISASSEMBLY OF BASIC ENGINE

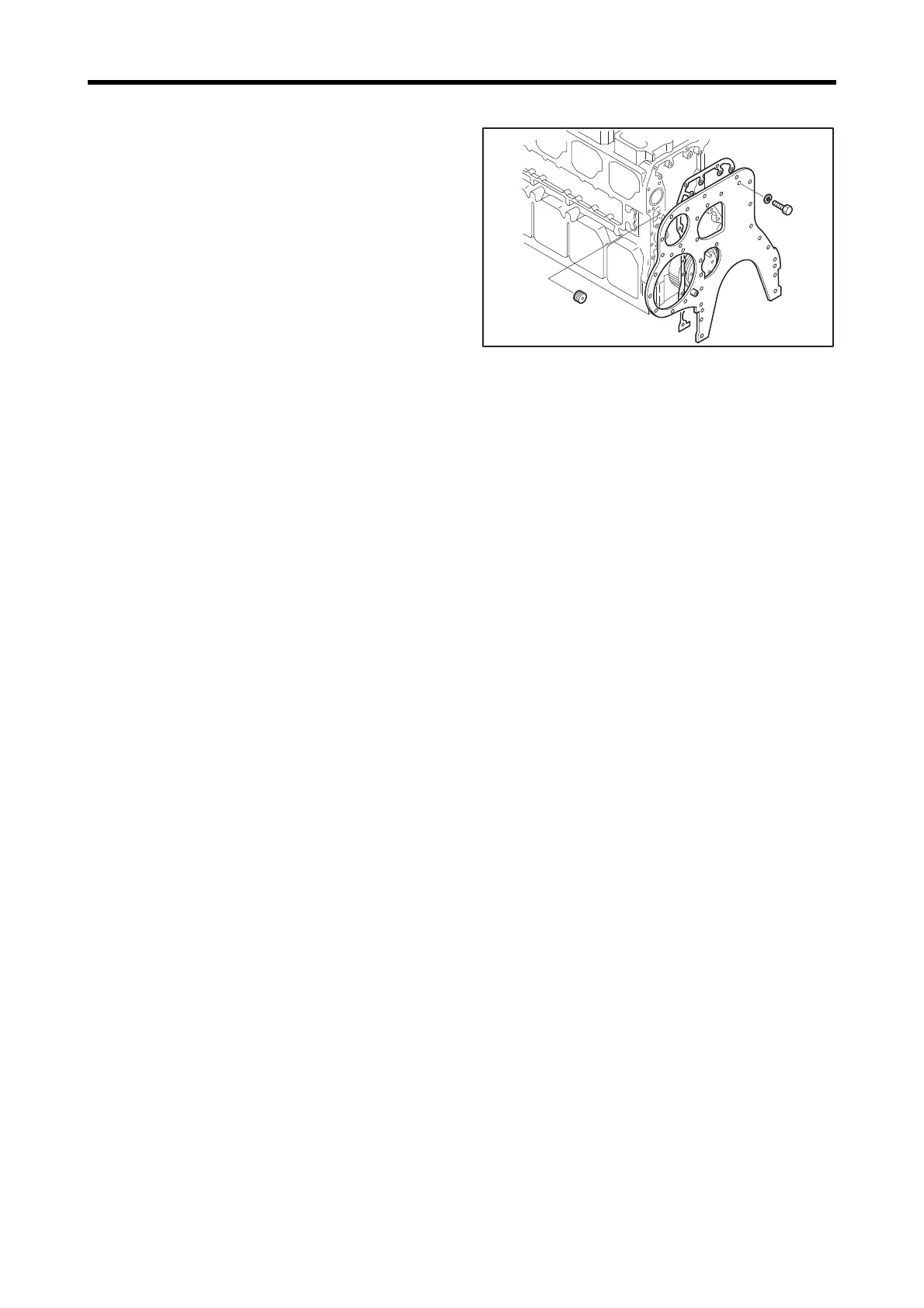

2.12 Rear Plate - Remove
(1) Remove the rear plate from the crankcase.
(2) Remove the nozzle plate from the crankcase.
Rear Plate - Remove
