Mitsubishi S6R2 Series - Stop Solenoid - Remove and Inspect

8-9
Chapter 8 FUEL SYSTEM
1.3 Stop Solenoid - Remove and Inspect
Stop Solenoid - Remove and Inspect
A
A
Oil cooler cover
Stop solenoid RUN OFF spec
3
1
8
8
8
8
4
5
2
7
6

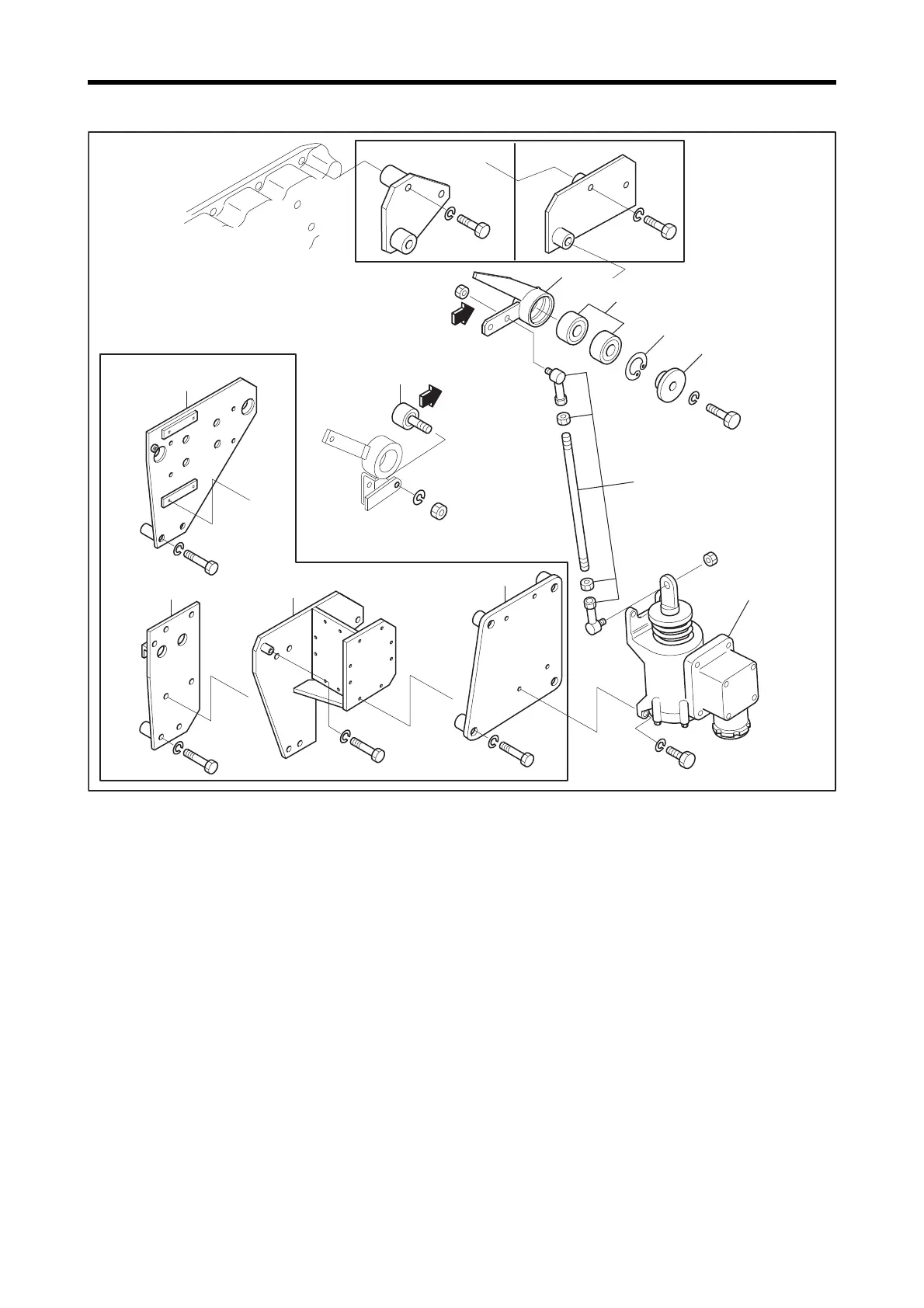

Removing Sequence
1 Link
2 End plate
3 Snap ring
4 Ball bearing
5 Stop lever
6 Follower
7 Stop solenoid
8 Bracket
