Chapter 8 FUEL SYSTEM
1.2 Fuel Filter and Fuel Pipe - Remove and Inspect
Fuel Filter and Fuel Pipe - Remove and Inspect
Note: The consisting parts at fuel inlet and outlet differ depending on the customization and specification.
A
A
4
3
3
2
1
Replace
Replace
Replace
Replace
Replace
Replace
With primary filter attachment spec
Fuel oil A spec
Diesel oil spec
5
6
7

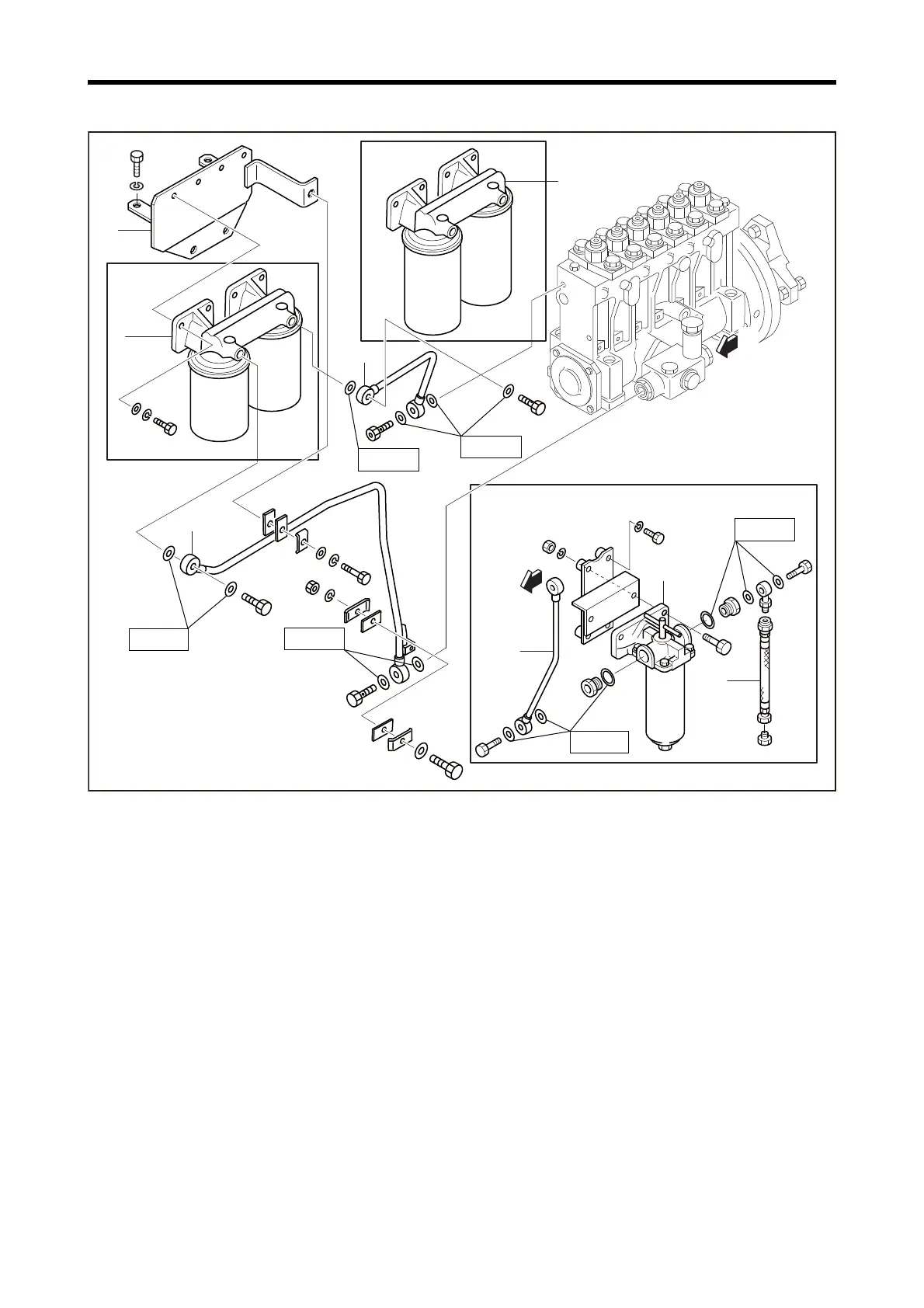

Removing Sequence
1 Fuel pipe
2 Fuel pipe
3 Fuel filter
4 Bracket
5 Fuel pipe
6 Flexible pipe
7 Fuel filter
(for primary filter)
