Mitsubishi S6R2 Series

5-20
Chapter 5 DISASSEMBLY OF BASIC ENGINE

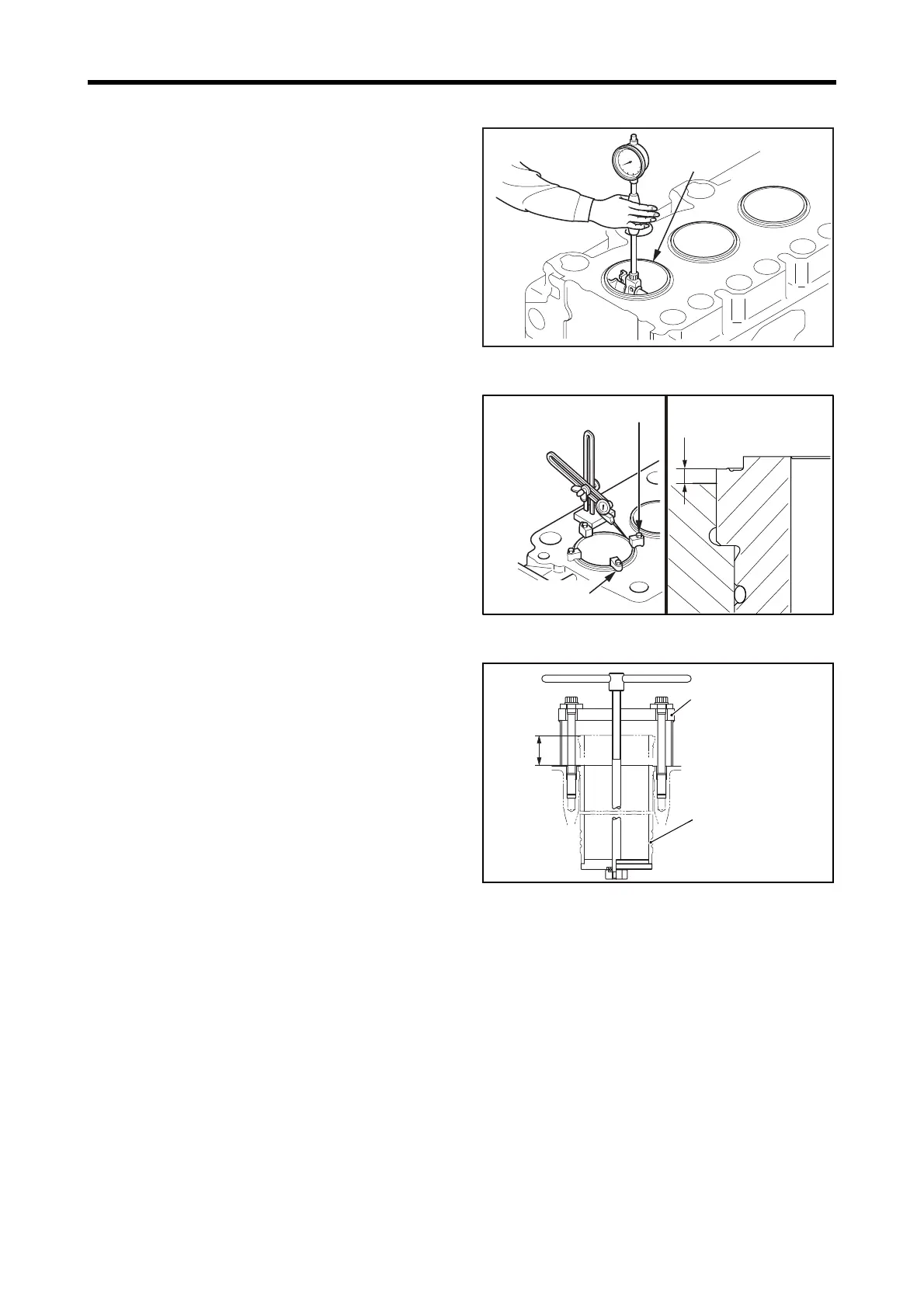

4.8 Cylinder Liner Inside Diameter - Measure
Measure the cylinder liner inside diameter, and know the
current condition.
For the measurement procedure, refer to "Cylinder Liner
Inside Diameter - Measure" of "ASSEMBLY OF BASIC
ENGINE."
Cylinder Liner Inside Diameter - Measure
4.9 Cylinder Liner Flange Protrusion - Measure
Measure the cylinder liner flange protrusion, and know the
current condition.
For the measurement procedure, refer to "Cylinder Liner
Flange Protrusion - Measure" of "ASSEMBLY OF BASIC
ENGINE."
Cylinder Liner Flange Protrusion - Measure
4.10 Cylinder Liner - Remove
(1) Set the cylinder liner remover to the cylinder liner.
Note: Use care not to hit the piston cooling nozzle when set-
ting the remover plate to the bottom of cylinder liner.
(2) Rotate the handle, and remove the cylinder liner.
Cylinder Liner - Remove
Cylinder linerCylinder liner
Cylinder liner
Cylinder liner
flange protrusion
Bolt
P/N:37591-06300
Tightening torque
98 N·m
{10 kgf·m}
[72 lbf·ft]
Liner pusher
P/N:37591-06200
Cylinder liner remover
P/N:37591-04100
Cylinder liner
Removing stroke 80 mm [3.15 in.]
Cylinder liner remover
P/N:37591-04100
Cylinder liner
Removing stroke 80 mm [3.15 in.]
