Mitsubishi S6R2 - Fig. 3-4 Priming Pump Tightening Method; Fig. 3-5 Priming Pump Head Packing

3-3
Chapter 3 OPERATION
Priming Pump Tightening Method
1. Gently tighten the priming pump cap by hand until
the tightening force suddenly increases.
2. Use a wrench or another appropriate tool to tighten
the priming pump 90±10°.
3. Check the mounting position of head packing.
Note: If the head packing has abnormality such as de-
formation or scratches, consult a dealer of Mit-
subishi Heavy Industries, Ltd., as the priming
pump needs to be changed.

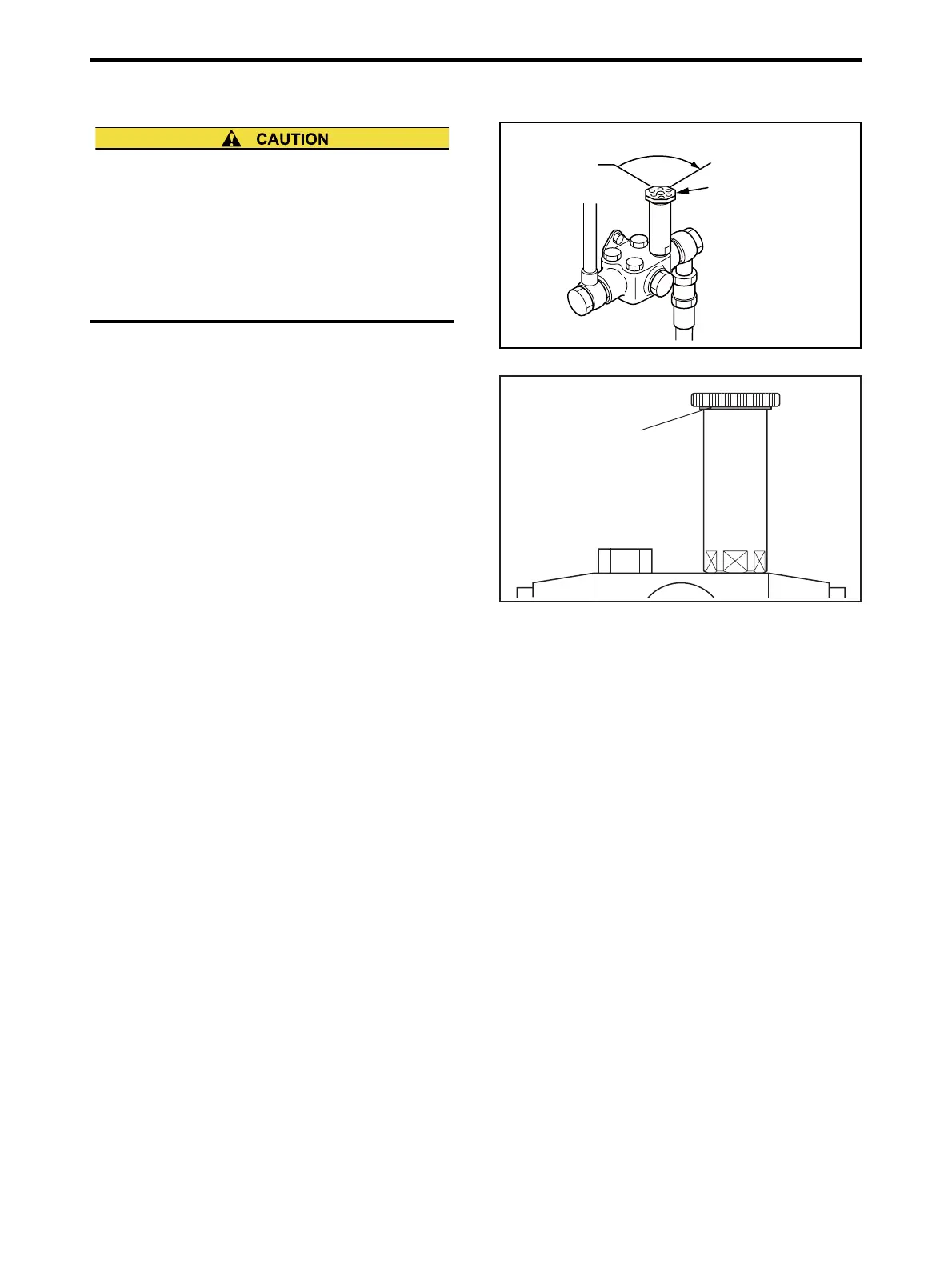

Fig. 3-4 Priming Pump Tightening Method
Fig. 3-5 Priming Pump Head Packing
Never fail to tighten the priming pump to the speci-
fied angle. If the priming pump is not firmly tightened,
internal thread will be worn due to engine vibration,
resulting in sudden ejection of the cap to cause fuel
flow-out. Or if the priming pump is excessively tight-
ened, the head of the priming pump can be dam-
aged.
Position where
hand-tightening
becomes suddenly
heavy
90
± 10 °
Priming pump
Head can be damaged
if the cap is excessively
tightened.
(120° or more)
°
Head packing
