MK Products Cobramatic Pro Series - Main PC Board Connections; Main PC Boards

Cobramatic
®
Pro Series Owner’s Manual - Page 12

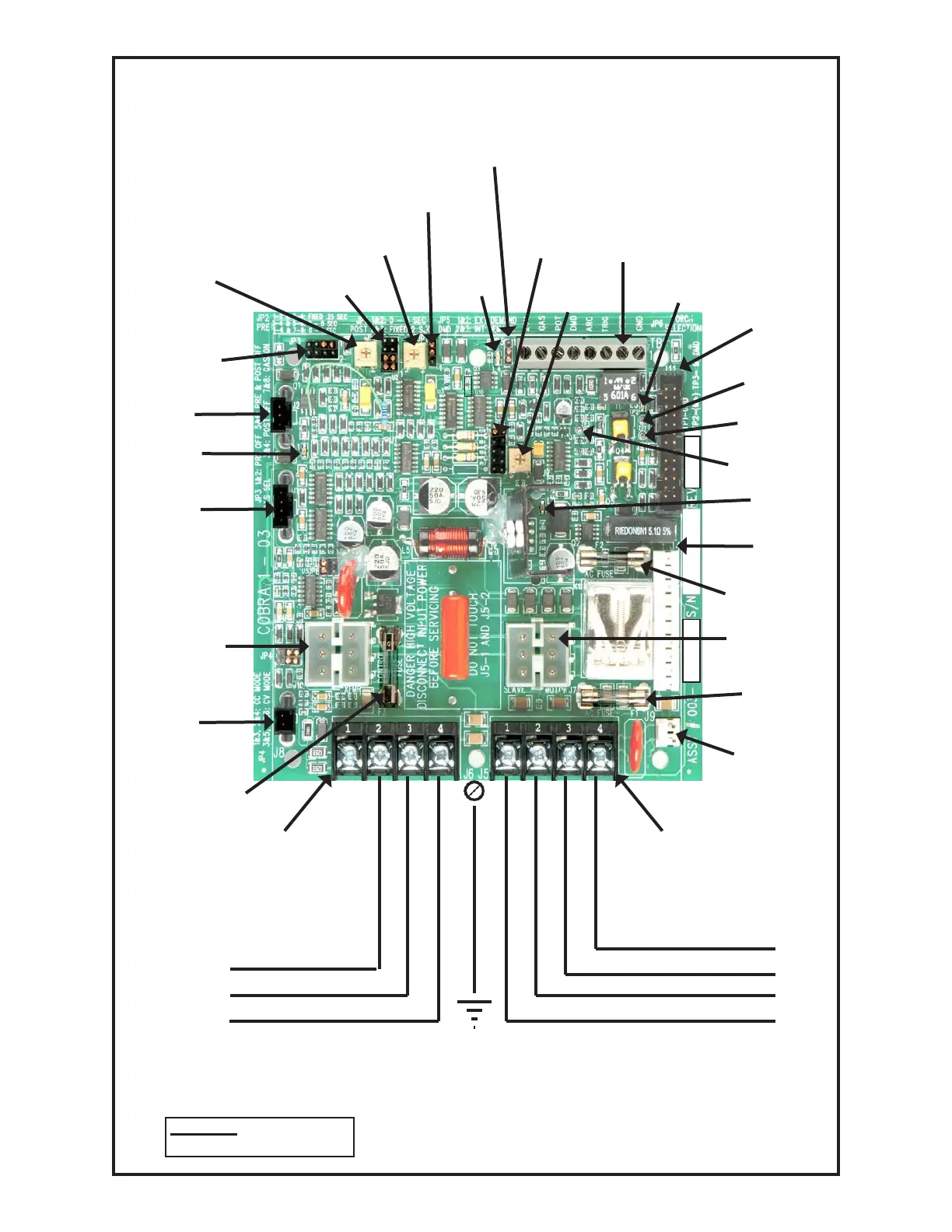

Main PC Board Connections
JP5
Int/Ext.
JP1
Adj. Gas Post-Purge Jumper
P2
P1
Post-Purge Trim Pot
L4
Posa
JP6
Torch Select
TB1
Remote
Input/Output
L3
Pre-Purge Trim Pot
JP2 Start “on”
P3
Trigger “on”
JP3
Gas Purge Jumper
J2
Gas Solenoid
Adj. Gas Pre-Purge Jumper
(blue)
Digital Meter
Adjustment
(green)
J11
Front Panel
TP2
Test Point - MTR VDC
TP1
L1
Gas “on” (yellow)
J1
Trigger Normal/Latch
J10
Transformer
J8
Current Sensor
F3
Motor Fuse
J6
Test Point - GROUND
TP3
Motor Demand
L2
Contactor Signal
“on” (red)
J4
Front Panel
F2
Line Fuse
J7
Slave Motor
F1
Line Fuse
J9
Brake Solenoid
J5
Terminal Strip
Terminal Strip
Work Ground
Closing Contacts Out
Closing Contacts Out
Chassis
Ground
(Green)
Opt. Contactor - 115 VAC Out - Hot - Black
Opt. Contactor - 115 VAC Out - Neutral - White
Input Power - 24/42/115/230 VAC - Hot - Black
Input Power - 24/42/115/230 VAC Neutral - White
Fuse P/N
F1, F2, & F3:151-0046
