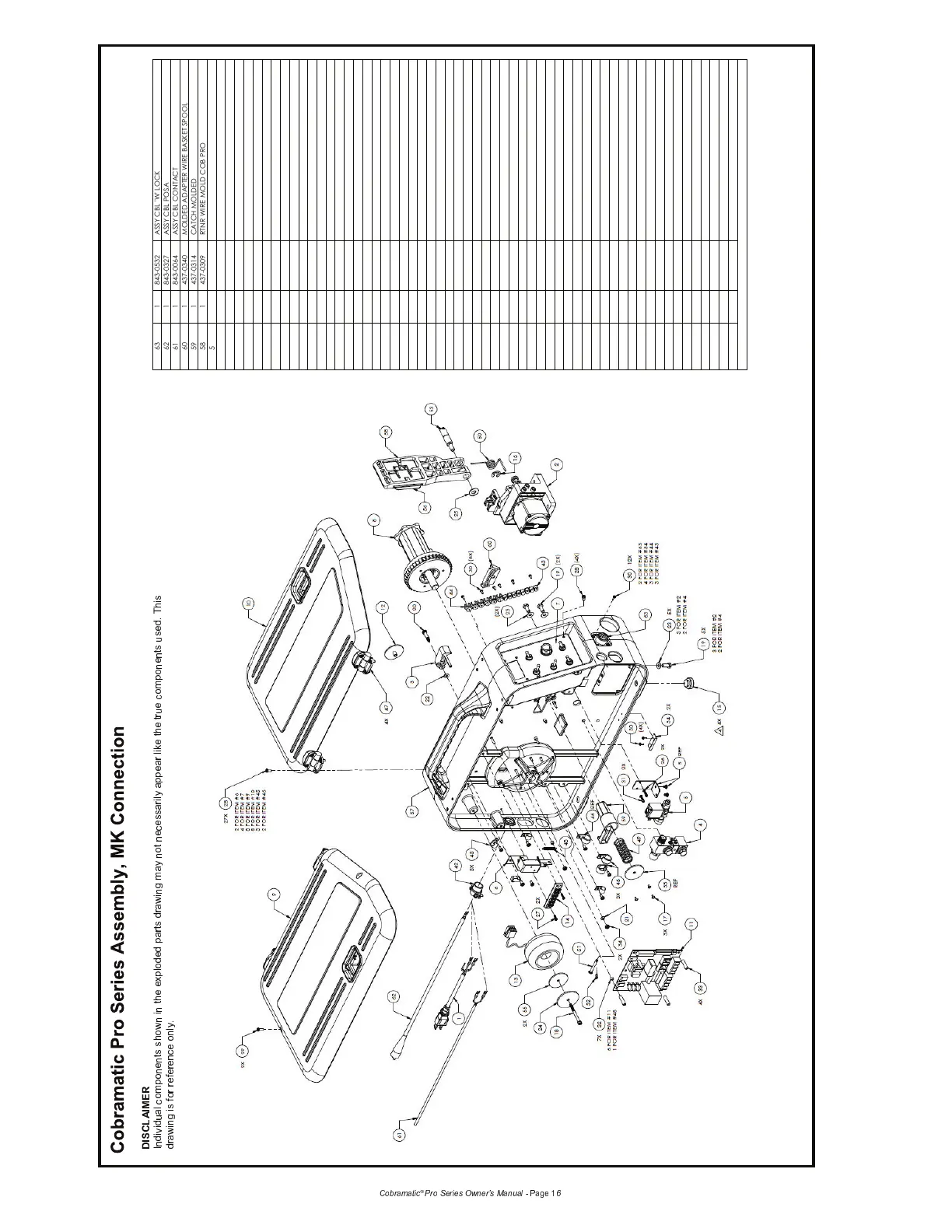

MK Products Cobramatic Pro Series - Cabinet Assembly

         

                            




!

"
#
$
% &
'
( )
(
' *
+
, -
.
/
0
.
&
1
&
2 3
3
4
.
5
&
(
&
2
4
1
1
6
0
,
.
'
1
'
0
+
7
2 3
'
7
+
5
(
&
8
/
+
9
&
.
2
&
1
-
1
3
3
+
7
(
,
9
+
0
0
1
+
7
,
(
:
1
2
4
1
2
7
*
1-
.
/
0
.
&
1
&
2 3
*
3
1
' ;
<
4
(
3
'
7
+
5
(
&
8
(
3
=
.
7
7
1
=
1
7
1
&
-
1
.
&
,
9
;
63
1
843-0532
ASSY CBL 'W' LOCK
62
1
843-0327
ASSY CBL POSA
61
1
843-0064
ASSY CBL CONTACT
60
1
437-0340
MOLDED ADAPTER WIRE BASKET SPOOL
59
1
437-0314
CATCH MOLDED
58
1
437-0309
RTNR WIRE MOLD COB PRO
57
1
437-0305
CABINET MOLDED PRO SERIES
56
1
437-0255
PAD RTNR WIRE COBRAMATIC
55
2
435-1250
WASHER 1-3/4 OD X 0.203 ID
54
2
431-1972
CATCH KEEPER
53
1
431-1971
PIN PIVOT
52
1
421-0460
PIN COT HAIRPIN 1/8 DIA X 19/32LG STL ZINC
51
1
421-0458
PIN COTTER 3/16DIA X 1.50 LG
50
1
419-0123
SPRING TORSION
49
1
419-0122
SPRING COMP 0.89 OD X 0.766 ID X 2.25 LG
48
1
419-0080
SPRG EXT .219 OD X .94 LG
47
4
415-0075
HINGE COBRAMATIC
46
3
411-0324
WIRE HARDNESS CLIP 5/8
45
5
411-0322
WIRE HARDNESS CLIP 3/8
44
1
411-0313
CLIP STRIP 3/8 DIA
43
1
411-0311
CLIP STRIP 1/4 DIA
42
1
411-0157
CLAMP CBL STR REF
41
16
411-0045
TIE WRAP
40
1
405-1613
LABEL SERIAL
39
1
405-1607
LABEL WRG HOOK UP CB - PRO SERIES
38
1
405-1606
LABEL MULTI-TAP INPUT COBRAMATIC
37
1
405-1128
LABEL WARNING
36
1
405-1125
LABEL WARNING
35
2
405-0887
LABEL WARNING
34
2
345-0008
NUT HX LK #6-32UNC W/INSR NYLON
33
4
342-0310
STAND OFF 6-32 X 1/4 X 1.00 LG
32
7
342-0131
SPACE NYLON 0.140 ID X 0.25 OD X 3/16 LG
31
2
338-0014
SCREW SHC 4-40 X 1/2 SST
30
12
336-0263
SCR PH PHIL 4-40 X 5/16 BLK
29
2
336-0234
SCR PH PHIL 8-32 X 1/2 BLK
28
27
336-0232
SCR PH PHL 8-32 X 3/8 BLK
27
2
336-0109
SCR PH PHIL #4-40 X 1/2LG SS
26
2
333-0100
WASHER SPR M3 SS
25
1
331-0777
WASHER FLAT 0.391 ID X 0.875 OD
24
1
331-0118
WSHR, 0.25"ID X 2.00"OD X 0.125"THK, NEOPRENE
23
5
331-0049
WSHR FLT .26 ID X .625 OD ST
22
1
331-0004
WASHER FLAT #10 ST
21
1
331-0002
WASHER FLAT #6 ST
20
1
330-0003
SCR SHDR 10-24 X 1/4 X 5/8
19
5
329-0002
SCREW HEX 1/4-20 X 5/8
18
1
328-0260
SCR SHC #10-32 X 2-1/4LG ST
17
3
316-0002
SCR TRUSS HD 4-40 X 1/4 SS
16
1
313-0127
RETAINING E-RING 1/2 DIA
15
4
301-0115
FOOT RUBBER
14
1
186-0174
TERMINAL STRIP
13
1
137-0093
ASSY TRANSFORMER 4 INPUT
12
1
003-2630
PLATE THREAD 10-32 CAB PRO-SERIES
11
1
003-2461
PCB MAIN 115V
10
1
003-2458
ASSY RIGHT SPOOL COBRAMATIC PRO SERIES
9
1
003-2457
ASSY DOOR POWER COBRAMATIC PRO SERIES
8
1
003-2455
ASSY SPINDLE
7
1
003-2454
ASSY CONTROLLER MODULE
6
1
003-2453
ASSY BRAKE SOLENOID
5
1
003-2452
ASSY GAS SOLENOID
4
1
003-2451
ASSY POWER BLOCK
3
1
003-2450
ASSY PAWL
2
1
003-2078
ASSY SLAVE MOTOR 115V COBRAMATIC
1
1
003-0796
ASSY POWER CABLE
NO.
QTY.
PART NO.
DESCRIPTION
PARTS LIST
