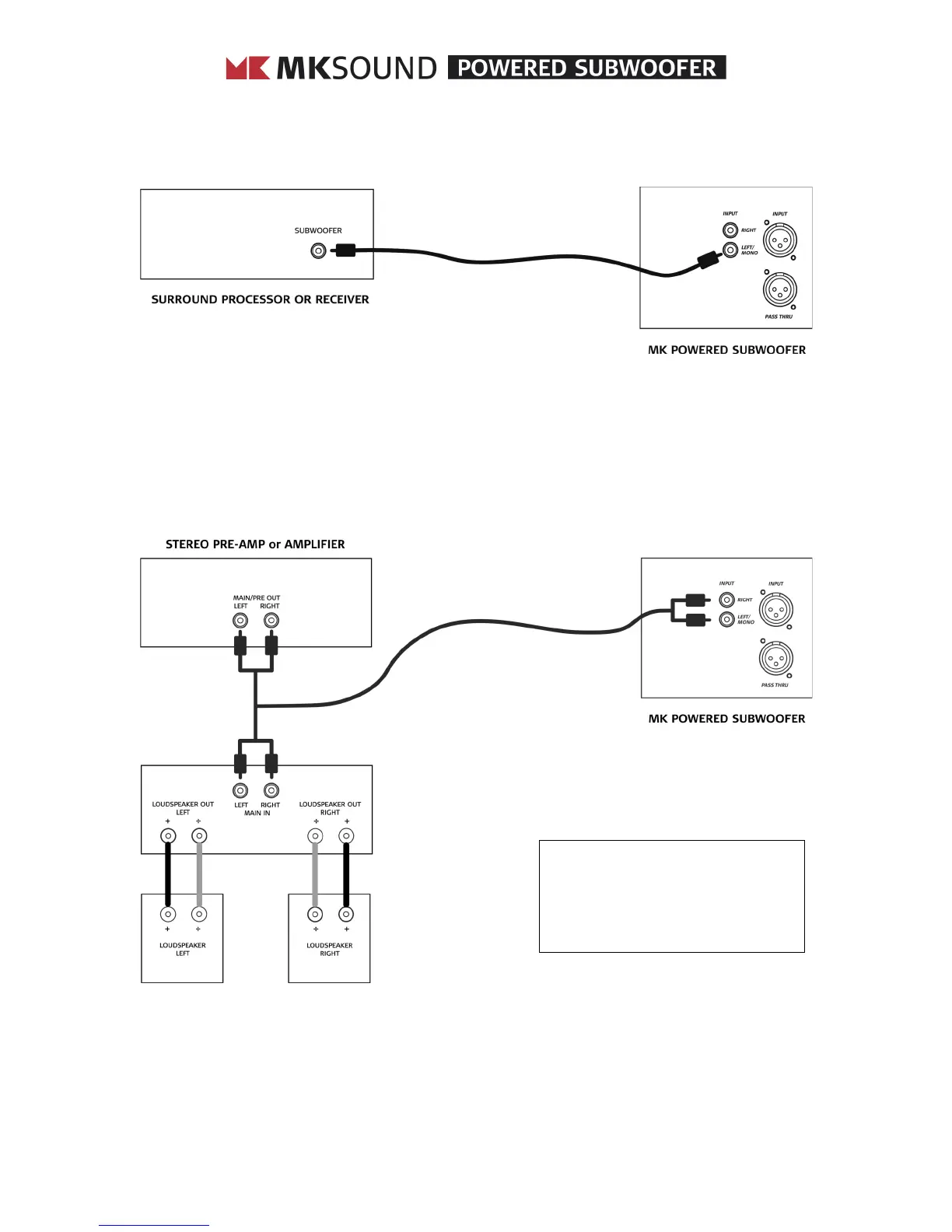

FIGURE 1. CONNECTING TO A COMPONENTʼ S SUBWOOFER OUTPUT
FIGURE 2. CONNECTING TO A STEREO AMP OR PRE-AMP
If you don’t have a subwoofer output available, check to see if you have pre-amp outputs on your
pre-amp, amp, receiver or processor. If you have only one set of pre-amp outputs and these are
being used to feed an external power amplifier, use a Y-connector to feed both the amplifier and
the subwoofer. Use both the left and right inputs of the subwoofer in this case – these inputs are
summed to mono in the subwoofer’s amplifier input stage.
