MK MK-100 - Connecting and Configuring Water Pump

21

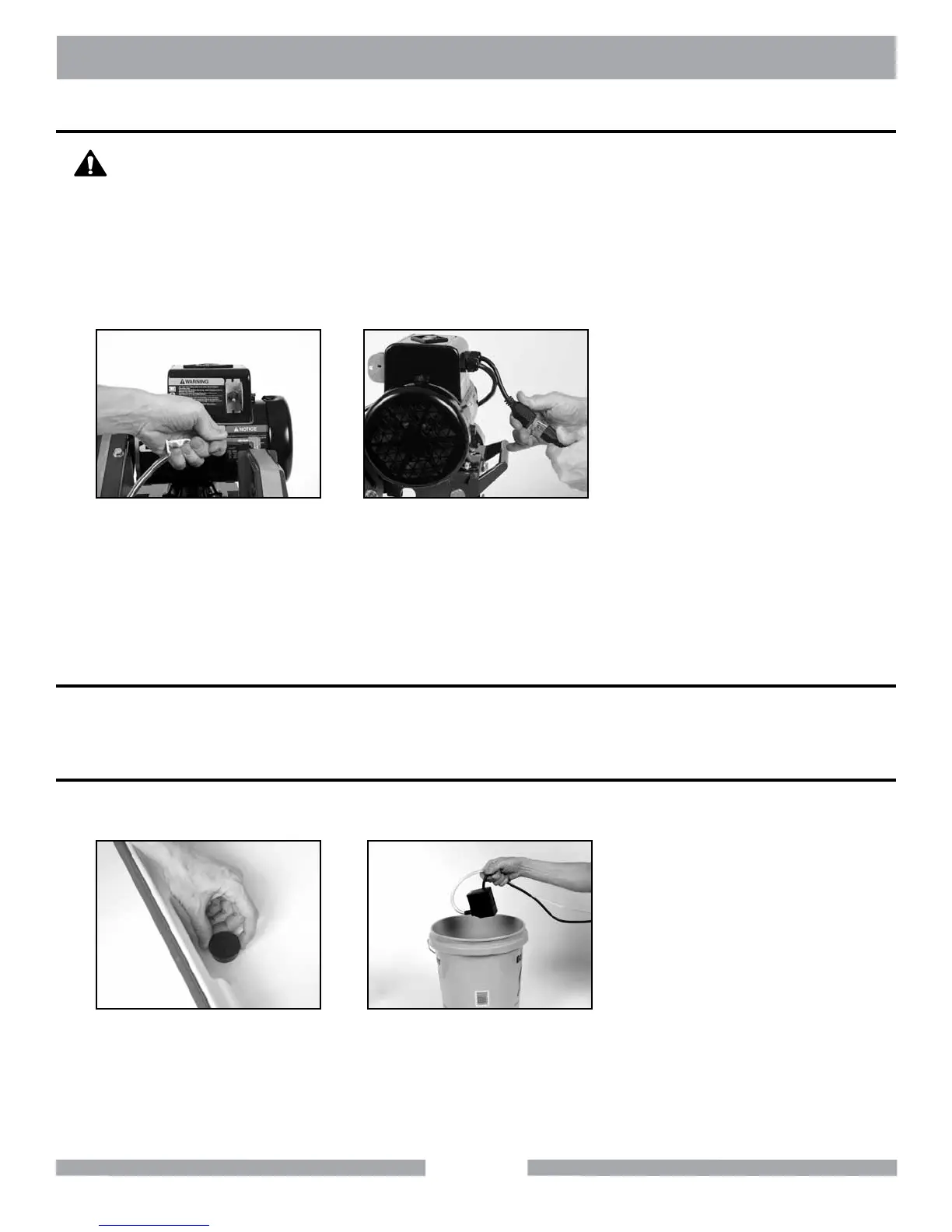

CONNECTING WATER PUMP
(A)
Connect the Cooling
Transfer Tube to the
inlet connection of the
Blade Guard.
(B)
Connect the Water Pump
power cord to the connection
found on the back of the motor.
To prevent the possibility of electrical shock, the MK-100 MUST be de-energized
when connecting the Water Pump.
To prevent the possibility of electrical shock, use only MK Diamond qualified
replacement parts.
WARNING
To prevent pump damage, the Water Pump must be disconnected from its power
supply if cutting with a Dry Blade.
WATER PUMP SETUP FOR OPERATION
The Water Pump can be setup for operation in two ways, external water source or Re-circulation.
EXTERNAL WATER SOURCE
This is the preferred method of cooling.
(A)
Remove the Drain Plug.
Place empty container under
hole for water drainage.
(B)
Place the Water Pump in an
external container and ll until
water completely covers the
Water Pump suction.
NOTE:
MK-100 TILE SAW SETUP
