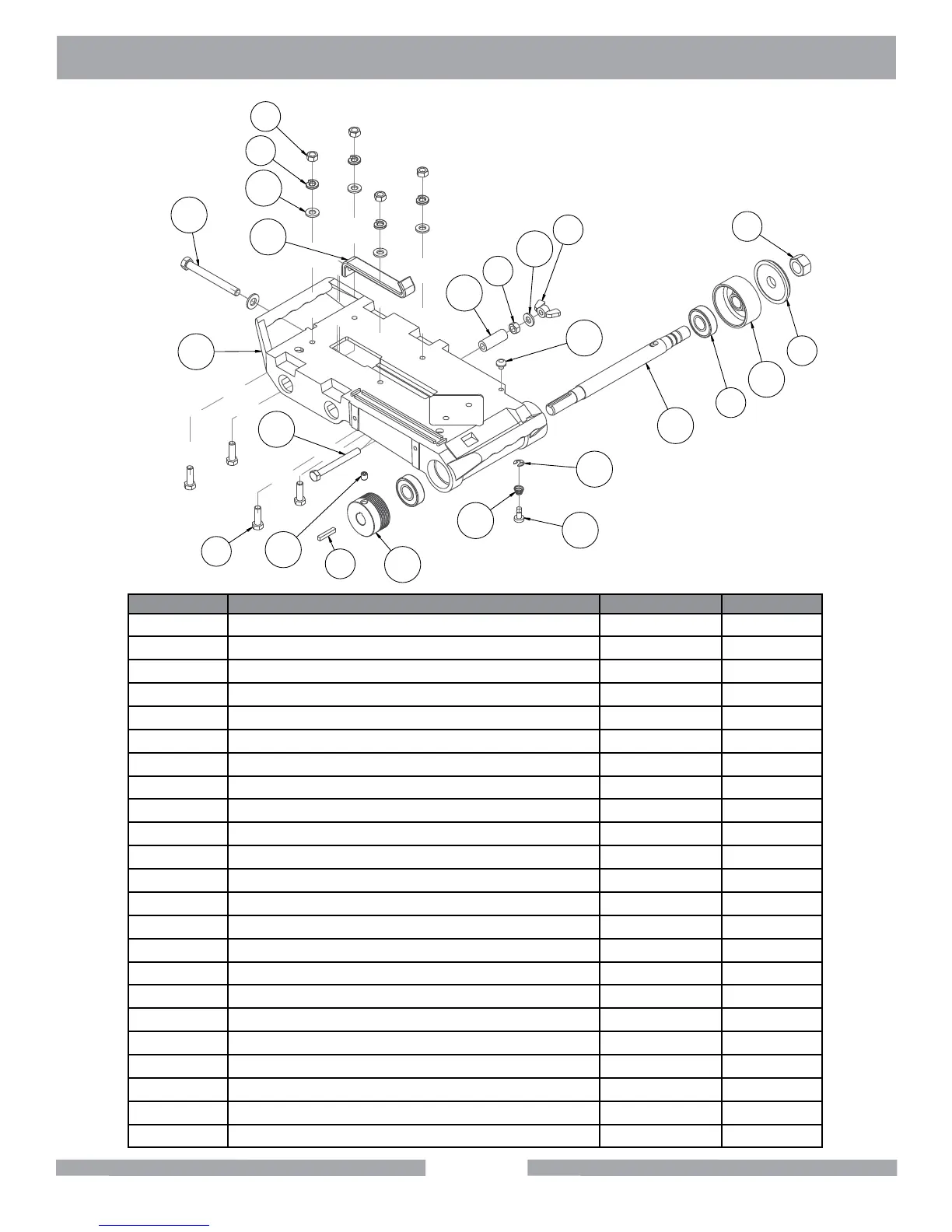

MK MK-100 - Exploded View & Parts List

45
Table Assembly
Part# 158191
1
2
3
4
22
5
7
8
9
21
10
11
12
13
14
15
16
17
18
19
20
23
1
10
ITEM # DESCRIPTION PART # QTY.
1 NUT, HEX, 5/16 - 18 101196 5
2 FLANGE, OUTER, 2 - 3/8 135830 1
3 NUT, HEX, 5/8-18 135848 1
4 BEARING, BALL, 17X40X12MM 137711 2
5 KEY, 3/16 SQ X 1-1/8 150344 1
6 WASHER, FLAT, SAE, 3/8 150923 1
7 SCREW, HEX HD, 5/16-18X1 151743 4
8 NUT, WING, NYLK, 5/16-18 151746 1
9 WASHER, LOCK, SPLIT, 5/16 151747 4
10 WASHER, FLAT, SAE, 5/16 151754 5
11 STRAP, 1 INCH, MOTOR ADJ. 152673 1
12 BUMPER, RUBBER, 1/2 DIA 152674 1
13 BOLT, 3/8-16 X 3-1/2 HEX HEAD TAP 153147 1
14 SCREW, 5/16-18 X 3/8 SOCKET HEAD SET 157083 1
15 PULLEY, 6J19 X 5/8 BORE 158199 1
16 BUTTON, SHAFT LOCK 158200 1
17 SPRING, BLADE SHAFT LOCK 158201 1
18 RING, 1/4 E-STYLE RETAINING 158202 1
19 SHAFT, BLADE 158222 1
20 CASTING, 10” CTTG HEAD - COMP 158224 1
21 SCREW, HEX HD, TAP, 5/16-18X3 162473 1
22 FLANGE, Ø 2-3/8 INNER 162758 1
23 SPACER, 9/16X5/16X1.5, PLAS 170824 1
MK-100 EXPLODED VIEW & PARTS LIST
