MK-101 w/JCS Stand Revision 04/05, Effective Date August 19, 2005
Page 14
UNPACKING, TRANSPORT, JCS STAND and ASSEMBLY

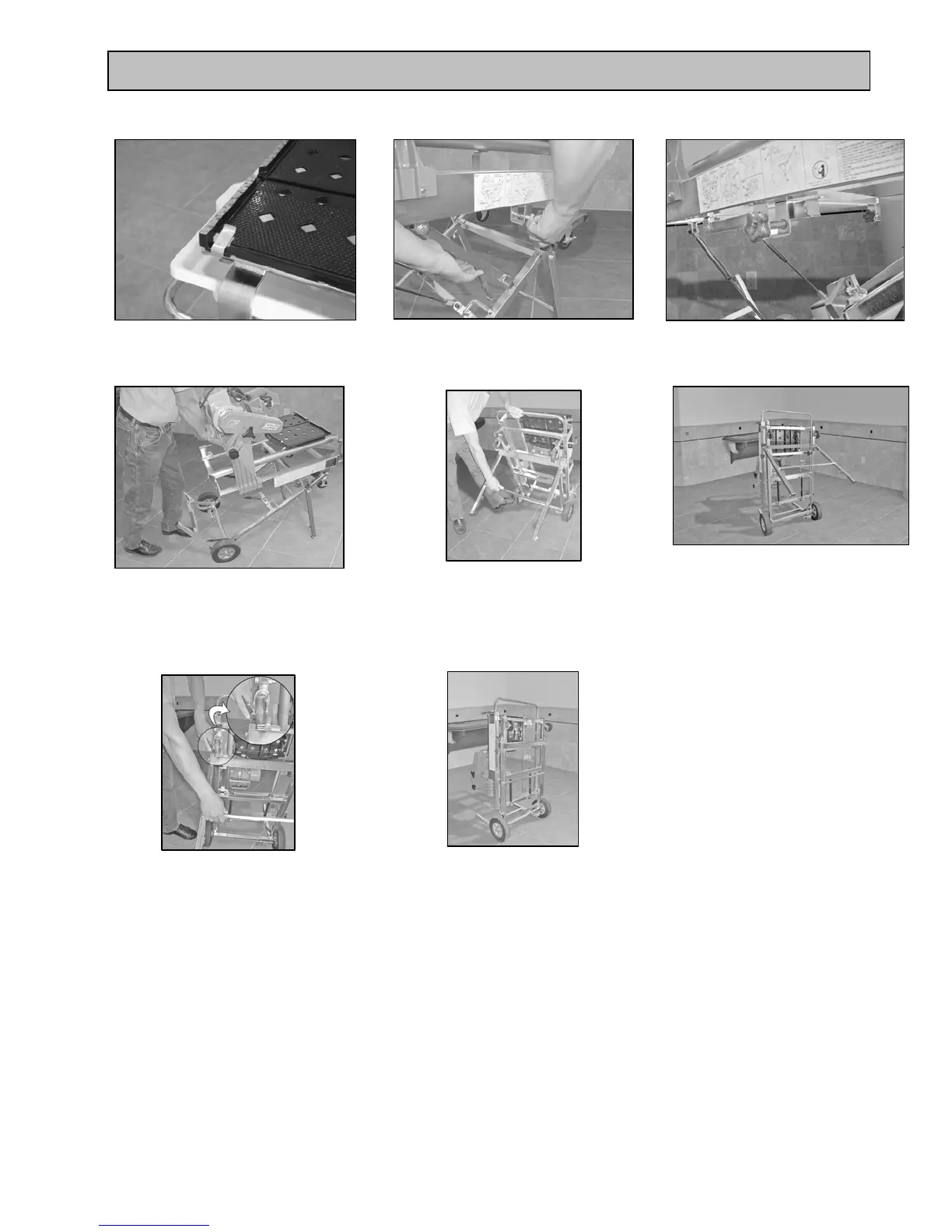

JCS STAND - TAKE DOWN INSTRUCTIONS:
(A)
Rotate Clip to lock Table
(B)
Pull and hold Green Knob. Lift Safety
Arm until it hits bottom of Frame
(C)
Release Green Knob to secure
Safety Arm
(D)
Push down on Cutting Head Handle to
collapse the saw
(E)
Move to left side of saw and use
left hand on Handle and right hand
on Front Legs
(F)
Tilt Saw backwards to upright
position
(G)
Hold up Front Legs and flip Red Latch
to unlock Front Legs
(H)
Push Front Legs against frame and
lock with Blue Knob and
your saw is ready for transport.
