MAINTENANCE AND TROUBLESHOOTING
TROUBLESHOOTING:

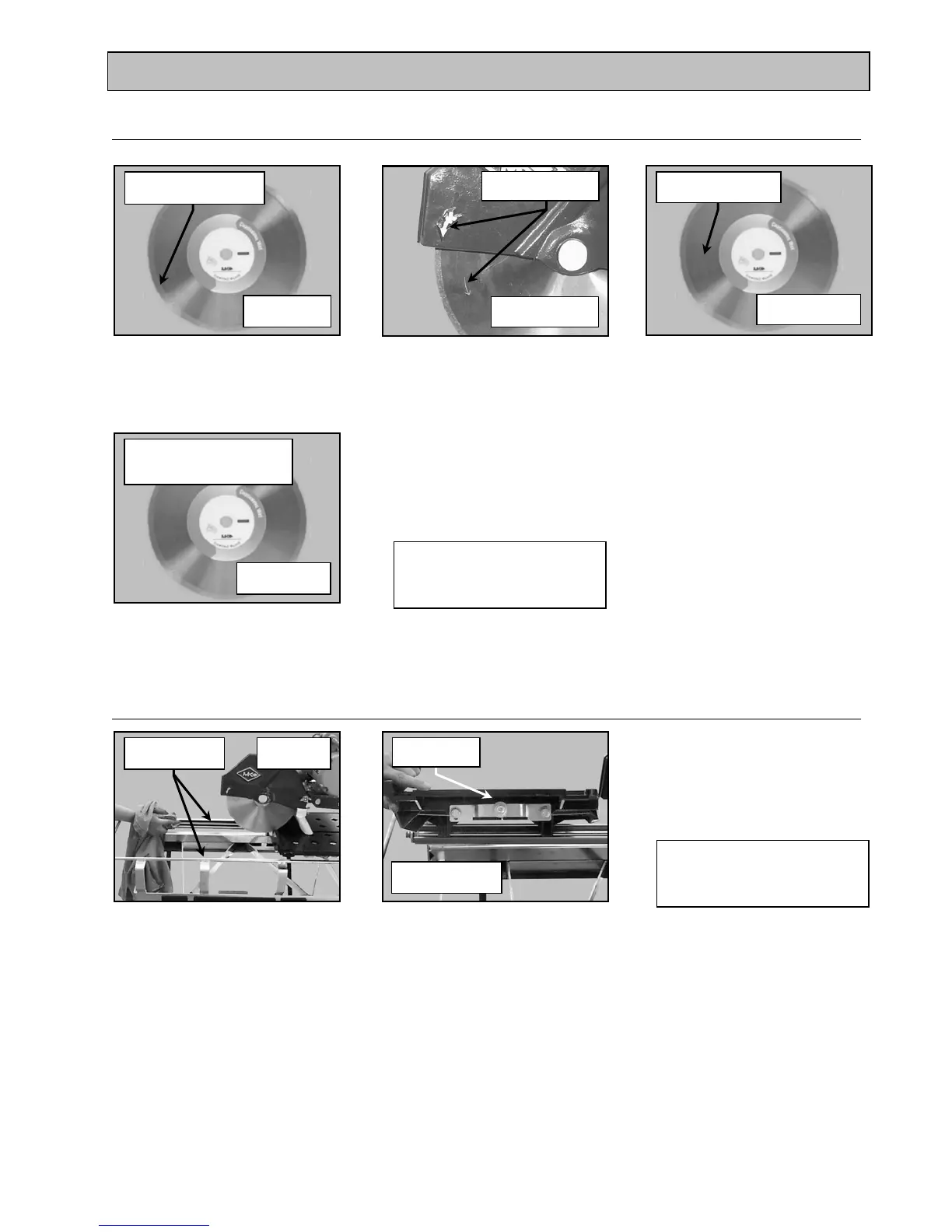

1. Blade will not cut properly:
2. Movable Cutting Table Does Not Move Correctly:
(A)
Check for Smoothness
or “Glazing” (Dress blade
if needed)
(C)
Ensure the Blade Core
is not bent
(B)
Check for proper blade rotation
If Rotation incorrect,
reverse Blade
(D)
Verify the blade is correct for
the material being used
Return to
MK Diamond
for Repair
(E)
Return to MK Diamond
(A)
Check the Guide Bar and
Frame for cleanliness –
clean if dirty
(B)
Check the Movable Cutting Table
Roller Wheels for wear –
replace if necessary
Return to
MK Diamond
for Repair
(C)
Return to MK Diamond
If not “Glazed”,
go to Step B
Contact place of purchase or
MK Diamond (800 421-5830)
to verify blade
If “Glazed”, Dress Blade
(See Blade Dressing)
If not “Glazed”, go
to Step D
If Rotation Correct,
go to Step C
If Blade Core is Bent,
Change Blade
If Blade Correct,
go to Step E
If clean,
go to Step B
Check Roller
Wheel for wea
r
If Wheel not worn,
go to Step C
Clean Guide Bar
and Frame if dirty
