MK-101 w/JCS Stand Revision 04/05, Effective Date August 19, 2005
Page 21

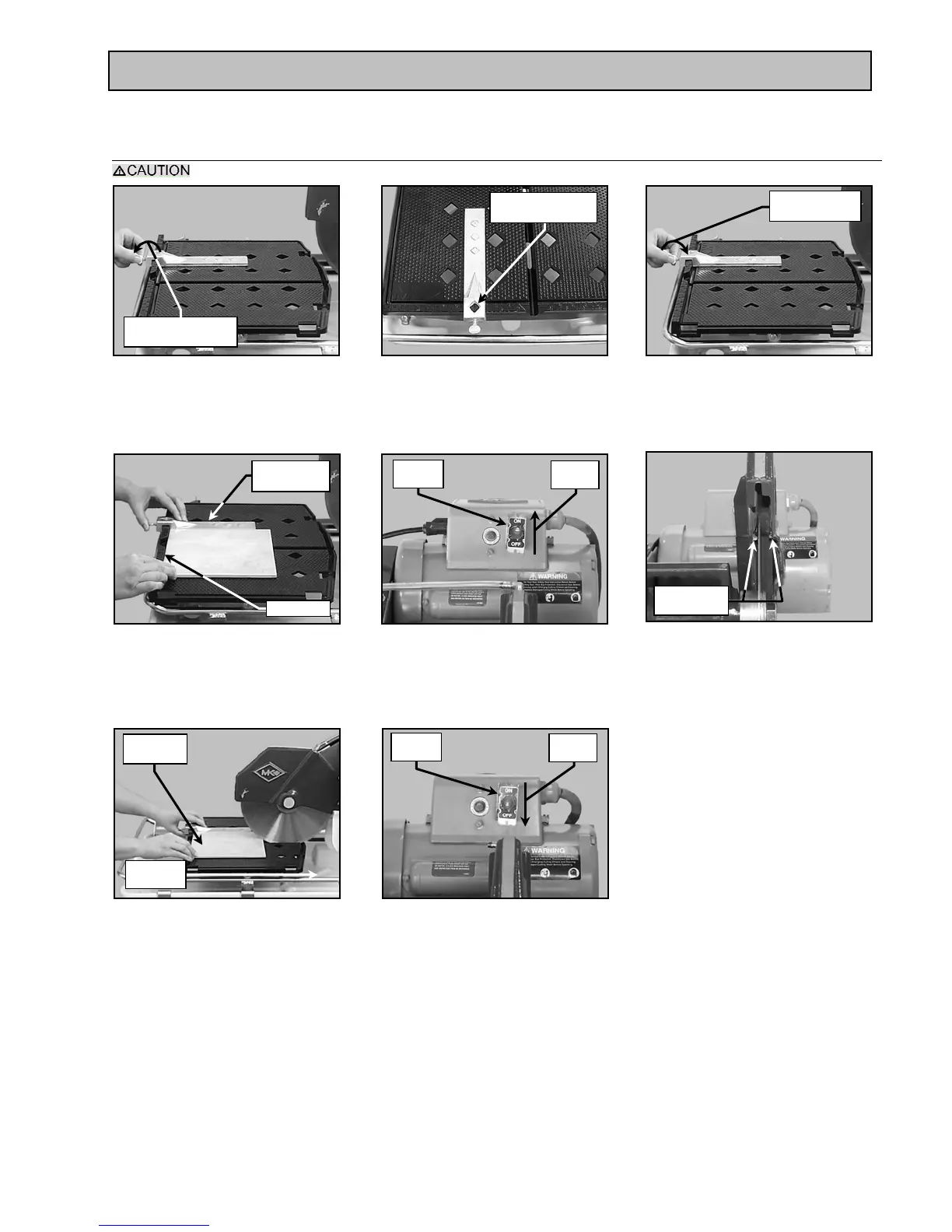

SETUP, ADJUSTMENT and OPERATION
ADJUSTMENT and OPERATION:
1. Cutting Straight Edges:
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
Off
Position
ON/OFF
Switch
(A)
Loosen the Adjustable Cutting
Guide retaining thumbscrew
(B)
Position the Adjustable Cutting
Guide to desired cut length
indicated inside the diamond
(C)
Tighten the retaining
thumbscrew
(D)
Place the tile against the
Ruler/Stop and Cutting Guide
(E)
Turn the motor ON
(F)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(G)
Perform the cut
(H)
Turn the motor OFF when
work is complete
Turn Counter-
clockwise to loosen
Desired Cut length
indicated here
Turn Clockwise
to tighten
Adjustable
Cutting Guide
Ruler/Stop
On
Position
ON/OFF
Switch
Cooling Flow
Points
Hold Work
in Position
Direction
of Cu
To Next Page
