MK-101 w/JCS Stand Revision 04/05, Effective Date August 19, 2005
Page 31

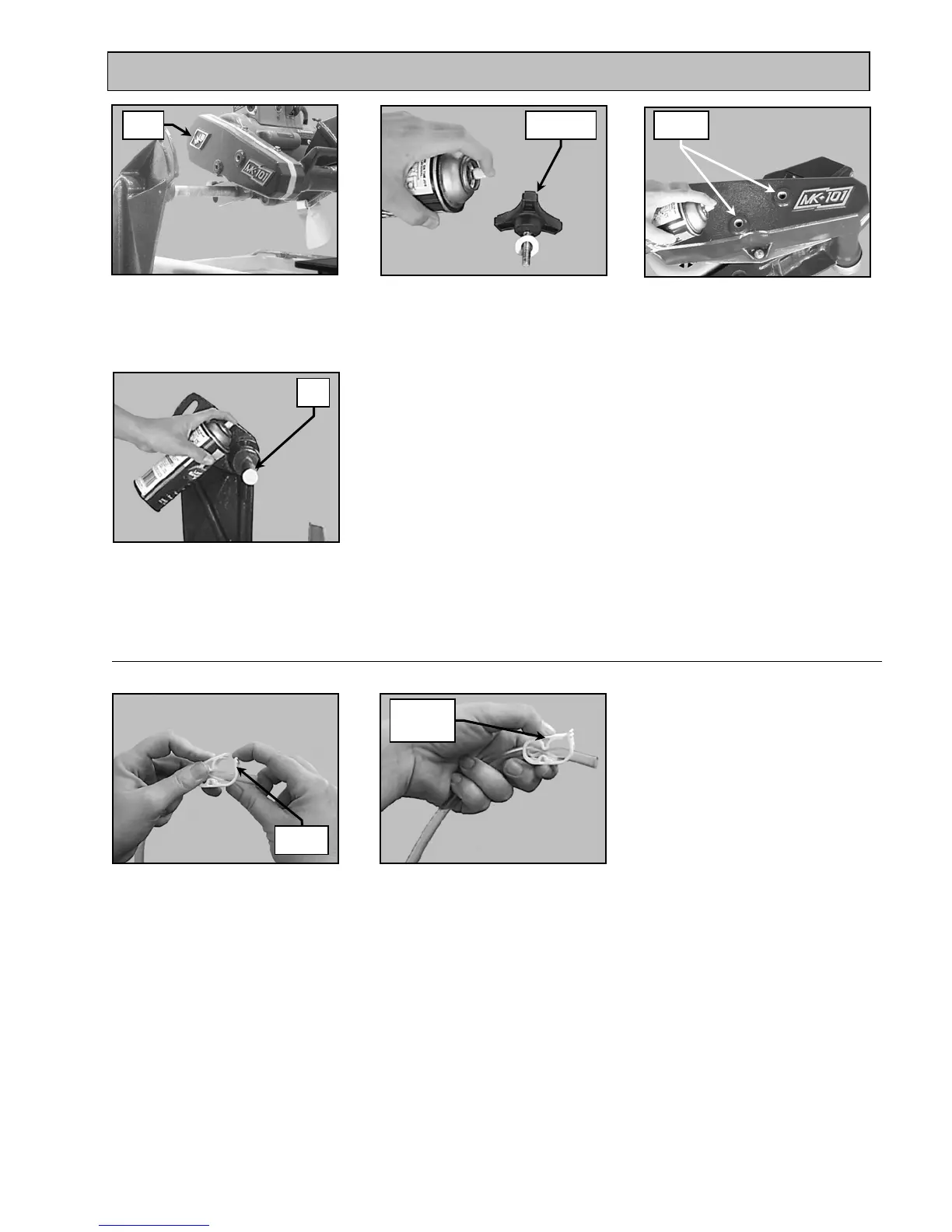

MAINTENANCE AND TROUBLESHOOTING
4. Flow Adjustment:
NOTE: If flow to the diamond blade requires adjustment, perform the following actions.
(J)
Lubricate the Cutting Head
Adjustment Knob
(I)
Remove the Cutting Head (See
Adjusting the Cutting Head)
(L)
Lubricate the Cutting Head
Pivot Shaft
(K)
Lubricate the Cutting Head
Adjustment Knob retaining holes
(D)
Increase cooling flow by releasing
the Flow Adjusting Clamp
(E)
Reduce cooling flow by
Pressing down on the Flow
Adjusting Clamp
Cutting
Head
Adjustment
Knob
Retaining
Holes
Pivot
Shaf
Pull Tab
to loosen
Press Tab
to Restrict
Flow
To Next Page
