114492-P1
Rev F, 10/98

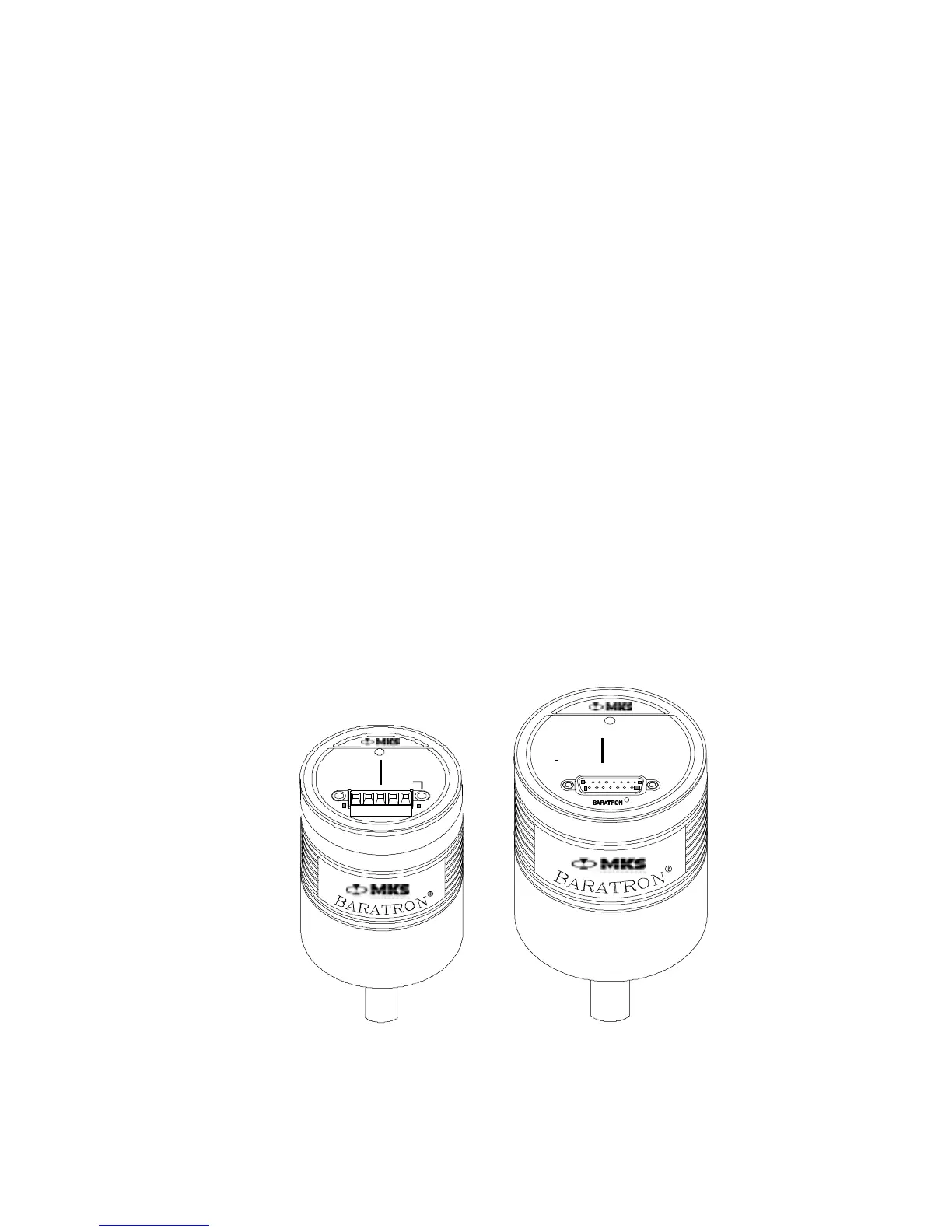

MKS Baratron
®
Type
622A/626A/627A/628A/629A
Absolute Pressure Transducers
T
y
pe 622
Pressure
Transducer
+
15 VDC-35 mA
PIN SIGNAL
1 Pwr Com
2 Sig Com
3 Sig Output
4 -15 VDC
5 +15 VDC
Chassis
ZERO
T
y
pe 62x
Pressure
Transducer
+
VDC 250 mA
PIN SIGNAL
2 Sig Output
5 Pwr Com
6 -15 VDC
7 +15 VDC
12 Sig Com
15 Chassis
ZERO
R
