5.7 Power off recovery
1. No UPS Power
1.1 A sudden power outage during the printing process, machine can continue to
print from the power off. (due to power failure can not drive the motor, the print
head will still remain on the model, may cause defects in the model, if the need for
more complete power off processing, the need for power detection module and
UPS).
2.1 Power detecting module signal line s connection PB0, negative positive
connection -and + two pins blow the PBO.
2.2 When the system loses power, the Power detection module informs the touch
screen to enter the suspend printing state, UPS power supply. Leave the print head
out of the model.

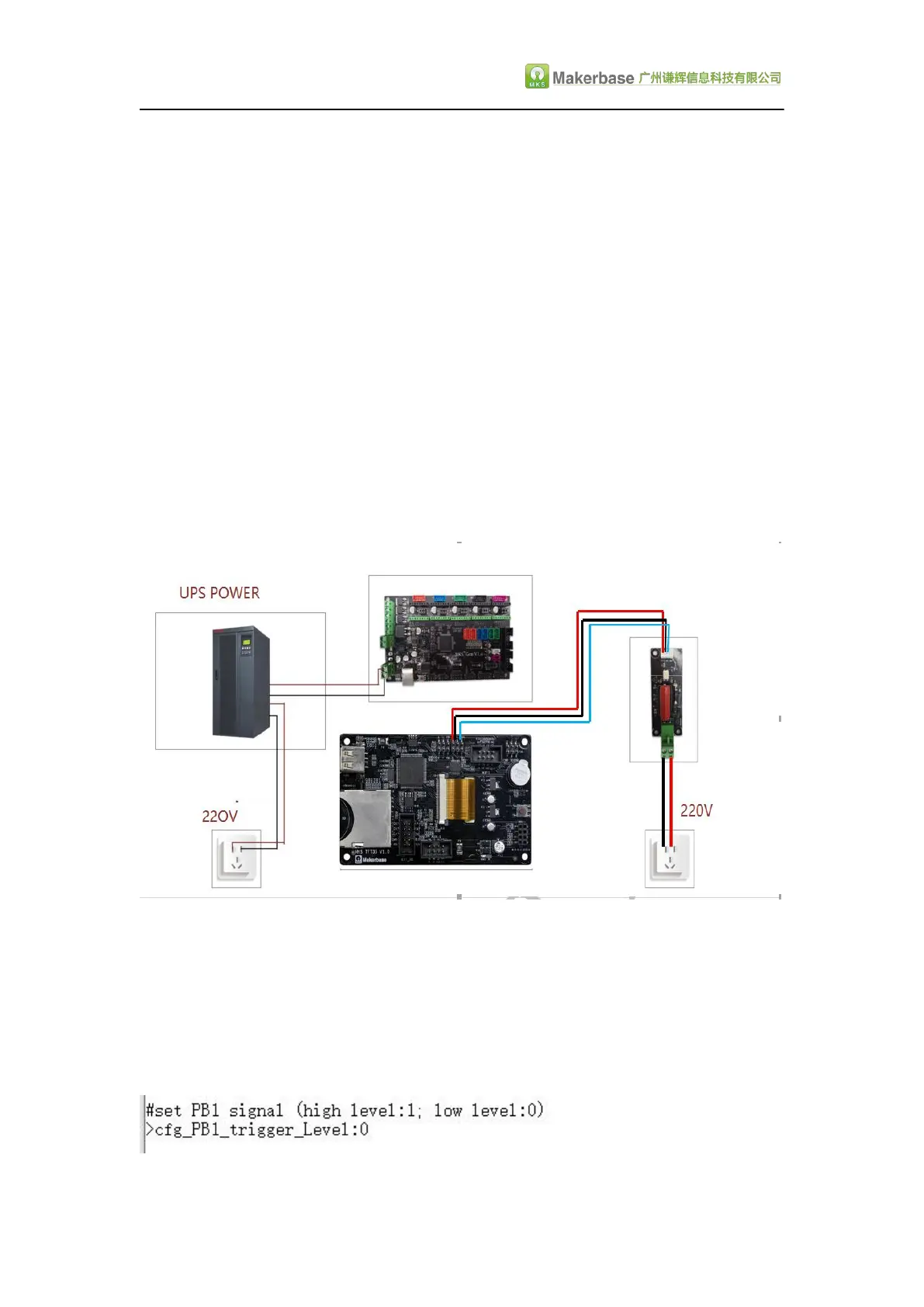

MKS TFT35 Pin Reference system connection diagram
5.8 Filament detecting
The end of the break detection switch is connected to the PB1, the other end is
connected to the PB1 under the”-”pin, can be in the configuration file to select a high
level of effective or low level effective, the following figure
