Mobatime DC Series - Dismantling of the Clock Rear Cover

© MOBATIME 9 / 52 800693.16
• Insert Allen key into the opening on the lower side of the clock. Turn the key softly
in anticlockwise direction. The frame catch will snap in. Secure both parts of the
clock.
• Replace the blind cap on the opening.
• Loosen the screws on the suspension using Allen key, and lift the clock into the
suspension in a way that the screws fit into the lower groove on the pipe insert.
Secure the attachment by tightening the screw using the Allen key.
• To loosen the frame catch, use the reverse procedure (turn clockwise).
• Note: during the disassembly first withdraw the clock, and suspend the suspension
on the upper groove at the pipe insert.

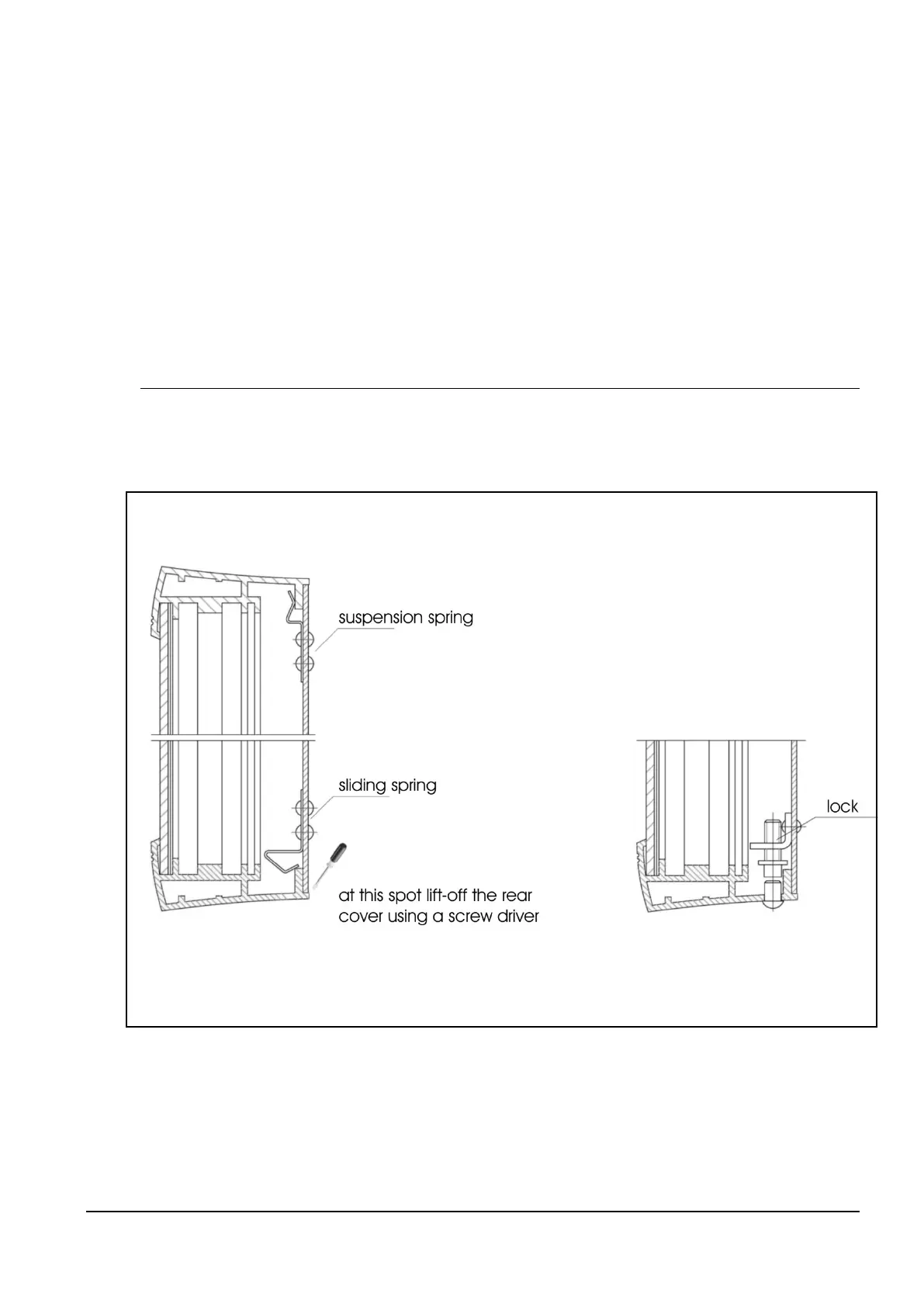

2.3 Dismantling of the clock rear cover
