Mod 101 - Page 57

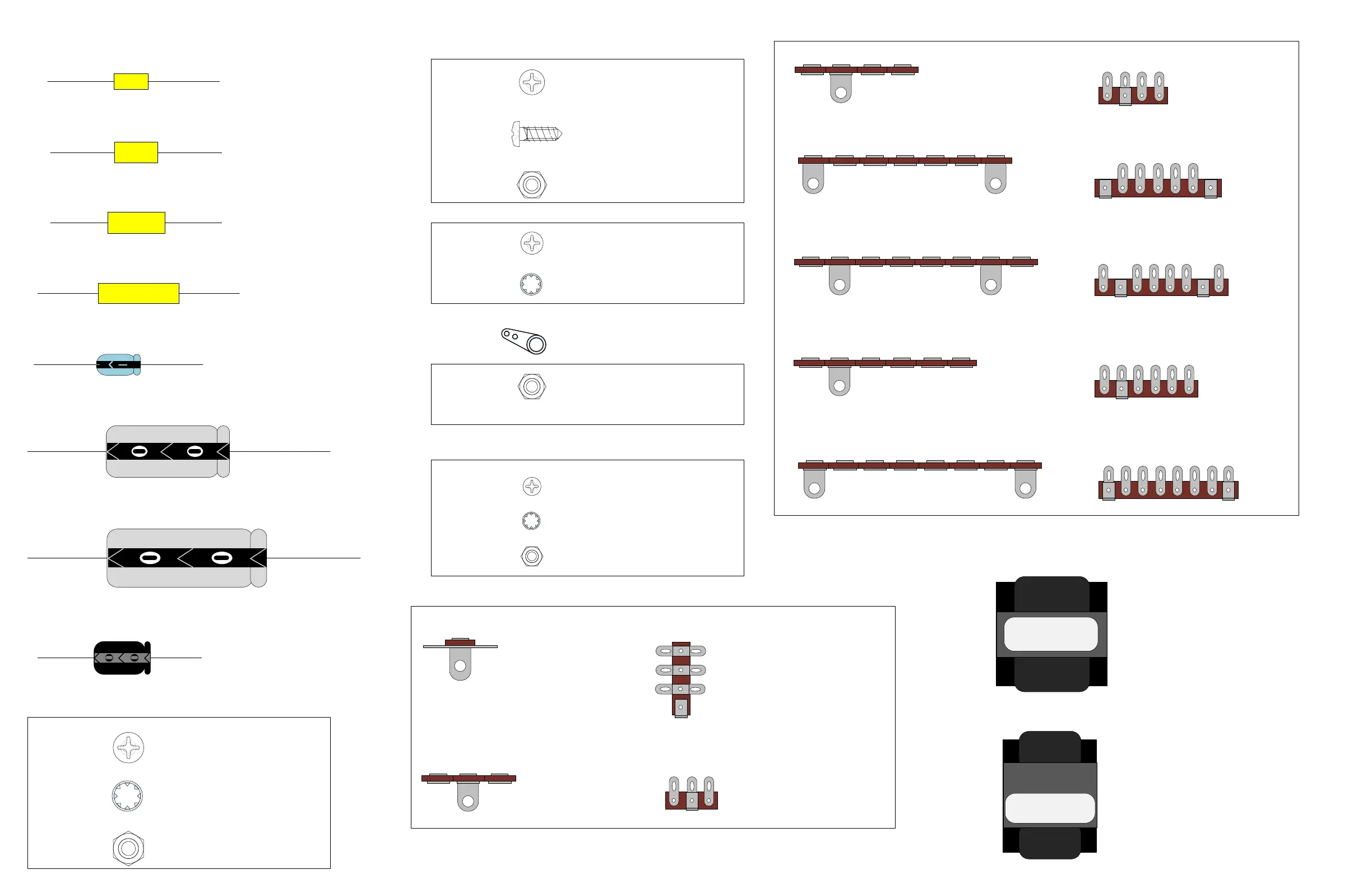

C-MD022-630 2 0.022µF capacitor
.022µF
630V
C-MD047-630 1 0.047µF capacitor
.047µF
630V
.1µF
630V
C-MD1-630 4 0.1µF capacitor
C-ET22-50 2 22µF polarized capacitor
C-ET22-500-IL 4 22µF polarized capacitor
22µF 500V
C-ET80-450-IL 2 80µF polarized capacitor
80µF 450V
C-ET220-50 1 220µF polarized capacitor
220µF 50V
S-HS832-34 4 #8 screw
S-HHN832 4 #8 hex nut
S-HST8-12 8 #8 self-tap screws
S-HHN1032 8 #10 hex nut
S-HLW10 6 #10 lock washer
S-HS1032-12 8 #10 screw
S-HS632-14 22 #6 screw
S-HLW6 20 #6 lock washer
S-HHN632 22 #6 hex nut
S-H112 4 #6 locking lug
S-HS440-14 4 #4 screw
S-HLW4 4 #4 lock washer
S-HHN440 4 #4 hex nut
P-0301H 1 3 lug terminal strip (2
nd
lug common)
T9
P-0300V 5 3 lug vertical terminal strip (no common lugs)
T10, T11, T12, T13, T14
P-0802H 1 8 lug terminal strip (1
st
and 8
th
lug common)
T1
P-0401H 2 4 lug terminal strip (2
nd
lug common)
T2, T6
P-0600H 2 6 lug terminal strip (no common lugs)
T3, T4
P-0601H02 3 6 lug terminal strip (2
nd
lug common)
T5, T'5, T8
P-0500H 1 5 lug terminal strip (no common lugs)
T7
P-T374BX 1 power transformer (TR1)
374BX
P-T1650P 1 output transformer (TR2)
#
1
0
#
1
0
#
1
0
#
1
0
1650P
C-MD001-630 1 0.001µF capacitor
.001µF
630V
Parts List 2
BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 9
BAG 10
BAG 8
BAG 9
BAG 8
BAG 10
BAG 2
BAG 2
22µF 50V
