Phase / Off
17

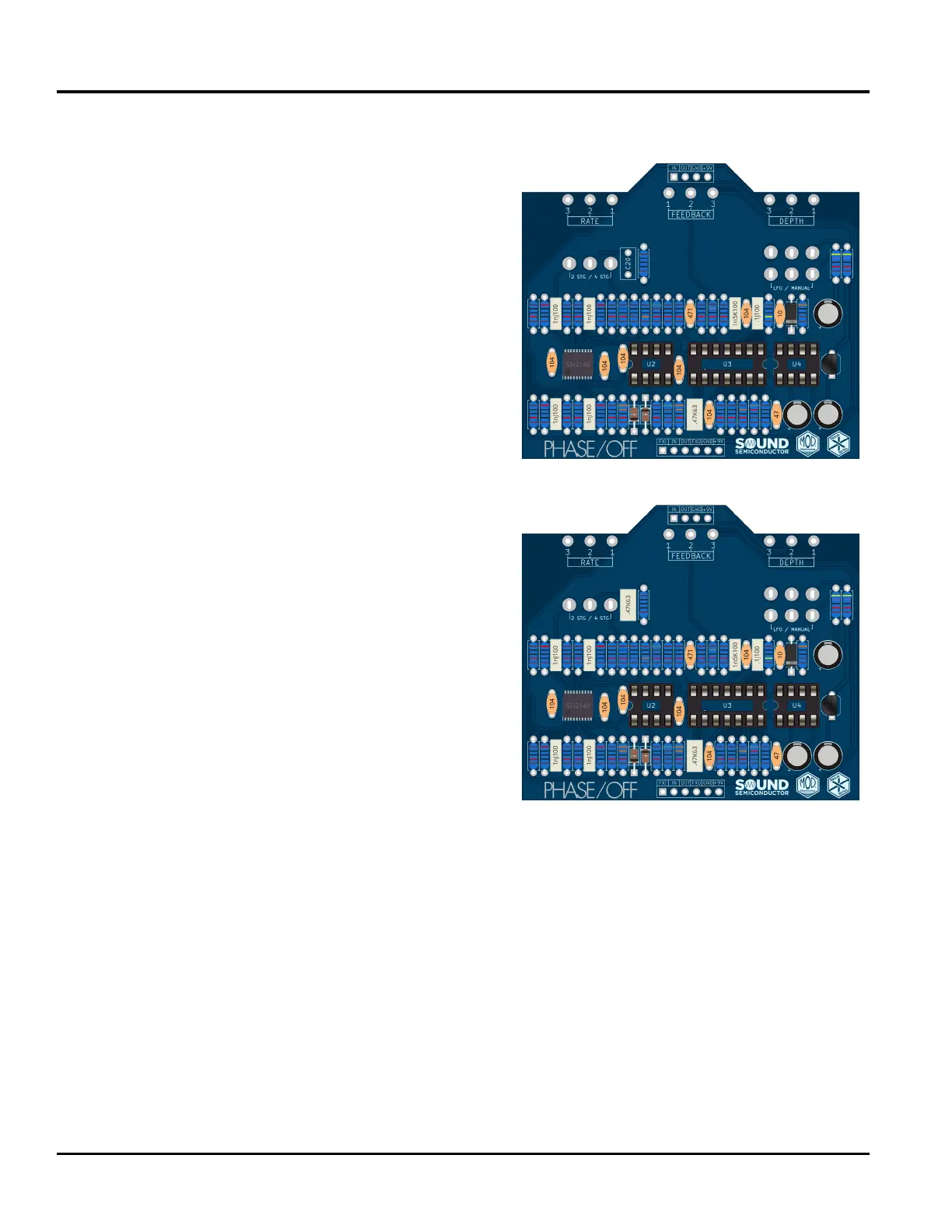

Main PCB Construction
Part 4: Capacitors (cont.)
62: Insert a 470nF lm capacitor at C20. This is the
rectangular capacitor marked .47K63. Solder this
capacitor now.
57: Insert a 1.5nF lm capacitor at C15. This is the
rectangular capacitor marked 1n5K100.
58: Insert a 100nF ceramic capacitor at C16. This is the
circular capacitor marked 104.
61: Insert a 100uF electrolytic capacitor at C19. When
inserting the capacitor, note the orientation of the
negative lead. Solder these ve capacitors.
59: Insert a 100nF lm capacitor at C17. This is the
rectangular capacitor marked .1J100.
60: Insert a 10pF ceramic capacitor at C18. This is the
circular capacitor marked 10.
