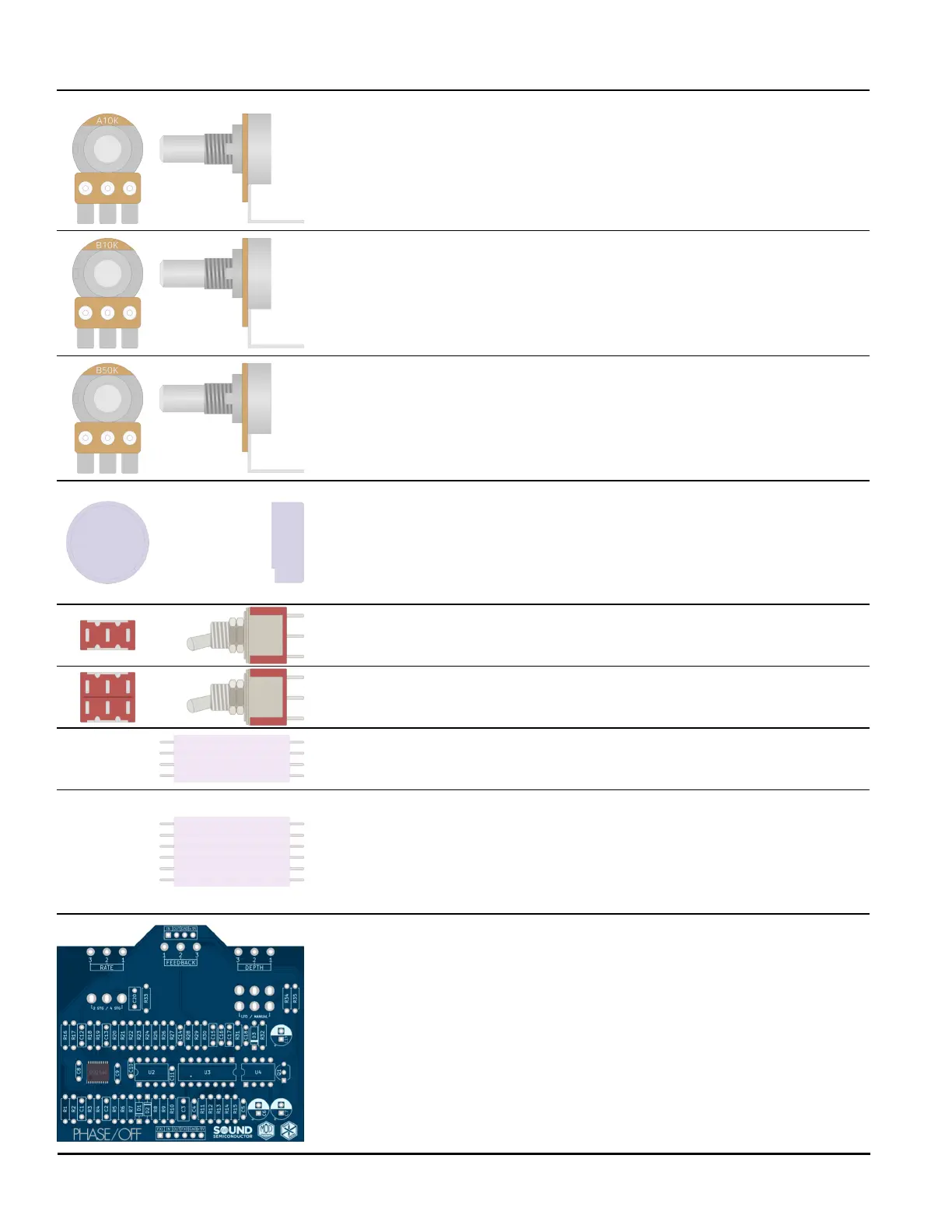

Main PCB Parts List (cont.)
Phase / Off
5
P-H5411
SPDT Mini Toggle
Qty 1
BOTTOM
VIEW
TOP
DOWN
VIEW
TOP
DOWN
VIEW
TOP
DOWN
VIEW
P-H5410
DPDT Mini Toggle
Qty 1
BOTTOM
VIEW
R-VAM10KA-SS-PCL
A10KΩ 16mm PCB Mount Potentiometer
Qty 1
R-VAM10KL-SS-PCL
B10KΩ 16mm PCB Mount Potentiometer
Qty 1
R-VAM50KL-SS-PCL
B50KΩ 16mm PCB Mount Potentiometer
Qty 1
K-905-PCB-MAIN
Main PCB with presoldered SSI2140 IC
Qty 1
S-W88-4-1
4 Conductor Flexstrip Ribbon Cable
Qty 1
S-W88-6-1
6 Conductor Flexstrip Ribbon Cable
Qty 1
R-VCOVER-LP16
16mm Potentiometer Cover
Qty 1
TOP
DOWN
VIEW
