1 Technical Description
The MC is a Wireless LAN-Adapter that connects devices via Ethernet, USB or serial Port to wireless
networks conforming to the 802.11a/b/g/n standard.

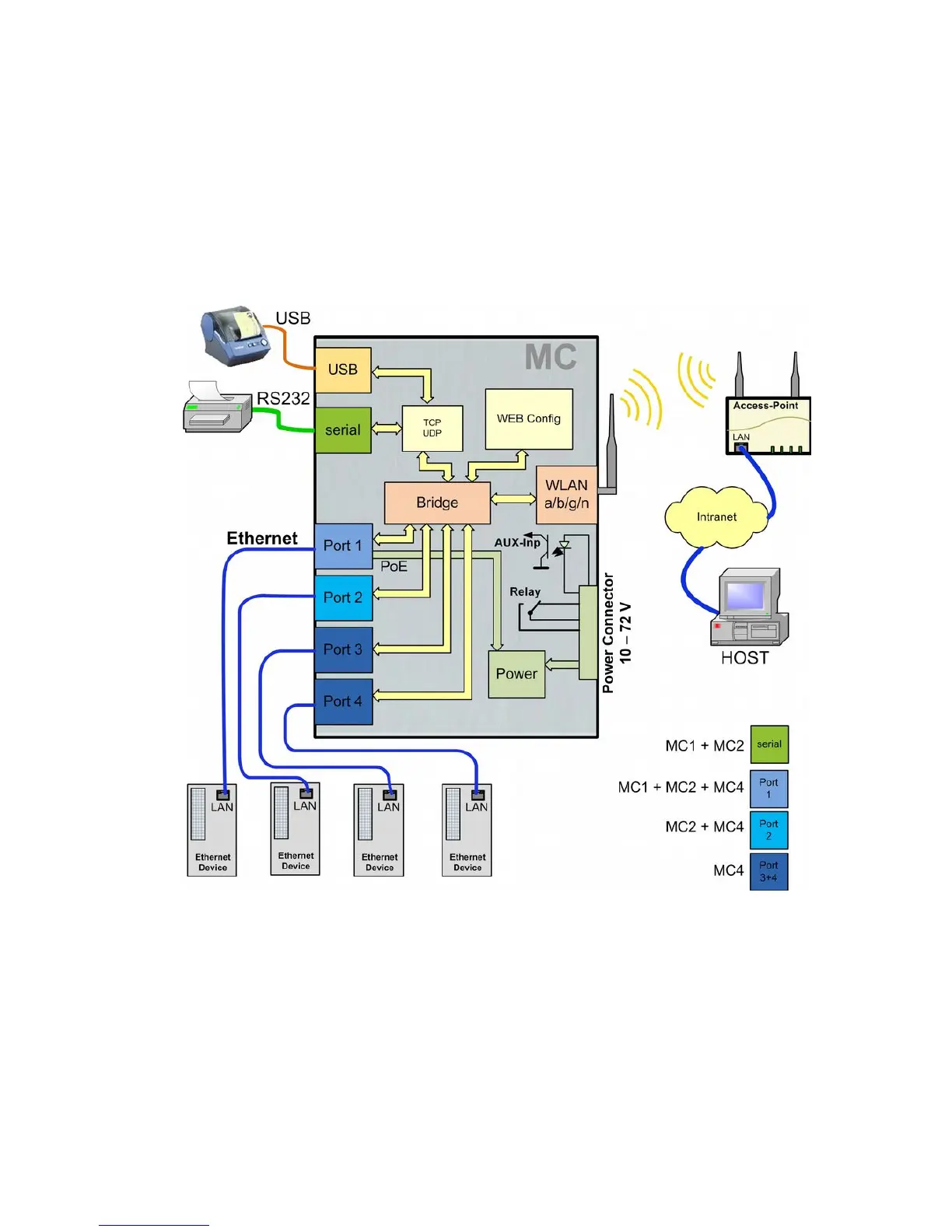

The MC can connect via these interfaces:
1. 1, 2 or 4 Port LAN
2. serial RS232 , 422, 485 interface
3. USB2 port
The central component of the MC is a ARM® Cortex®-A9 Processor which controls all functionality.
The different ports are:
1) Mini-PCI-Express Socket
2) Ethernet-Interface with 1-4 Ports 10/100/1000 Mbit/s + Auto-MDIX (auto crossover function)
3) 1 x serial Port with six control lines (RTS, CTS, DTR, DSR, DCD, RI)
4) 1 x USB2 – Port e.g. for printers or port extensions
5) optional: relay switching contact + input with opto coupler
MC Manual Version 2.10c
