1.3 Ports of the MC4
The front panel of the MC2 is identical to the MC1.
The MC4 back panel has the following plug assembly:

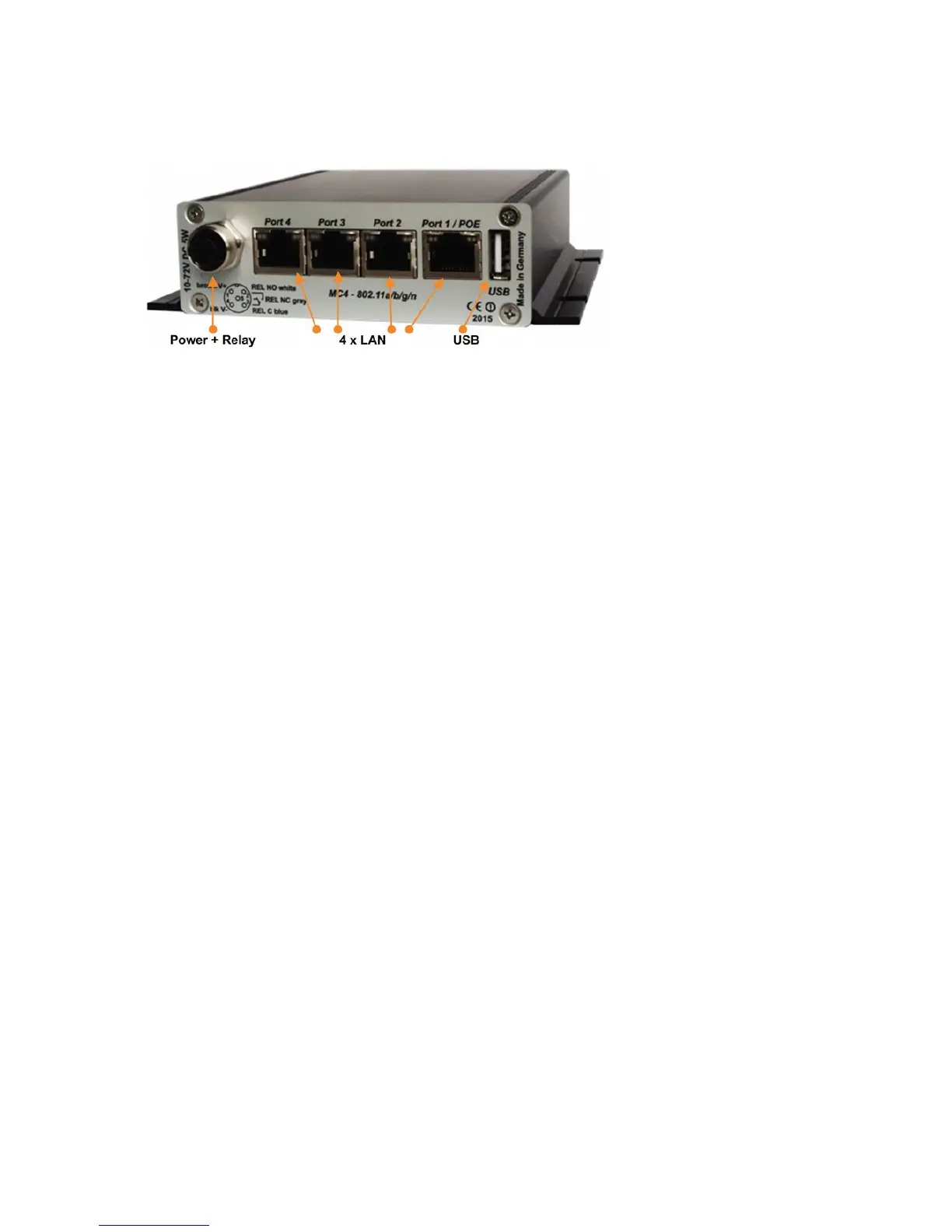

MC4 plug assembly on the back panel
The MC4 is also available with the options MC4-Sx-WK8 and MC4-Sx-M8.
1.4 Meaning of the LEDs
The 4 LEDs on the front represent the operating state of the MC. All LEDs can shine in three different colors:
red, yellow, blue. If all three colors are on, the LEDs color is white.
MC Manual Version 2.10c
