Modern Forms MORPHEUS II - Attaching Fan Components; Blade Attachment to Motor

10 FR-W1812; FR-W1813

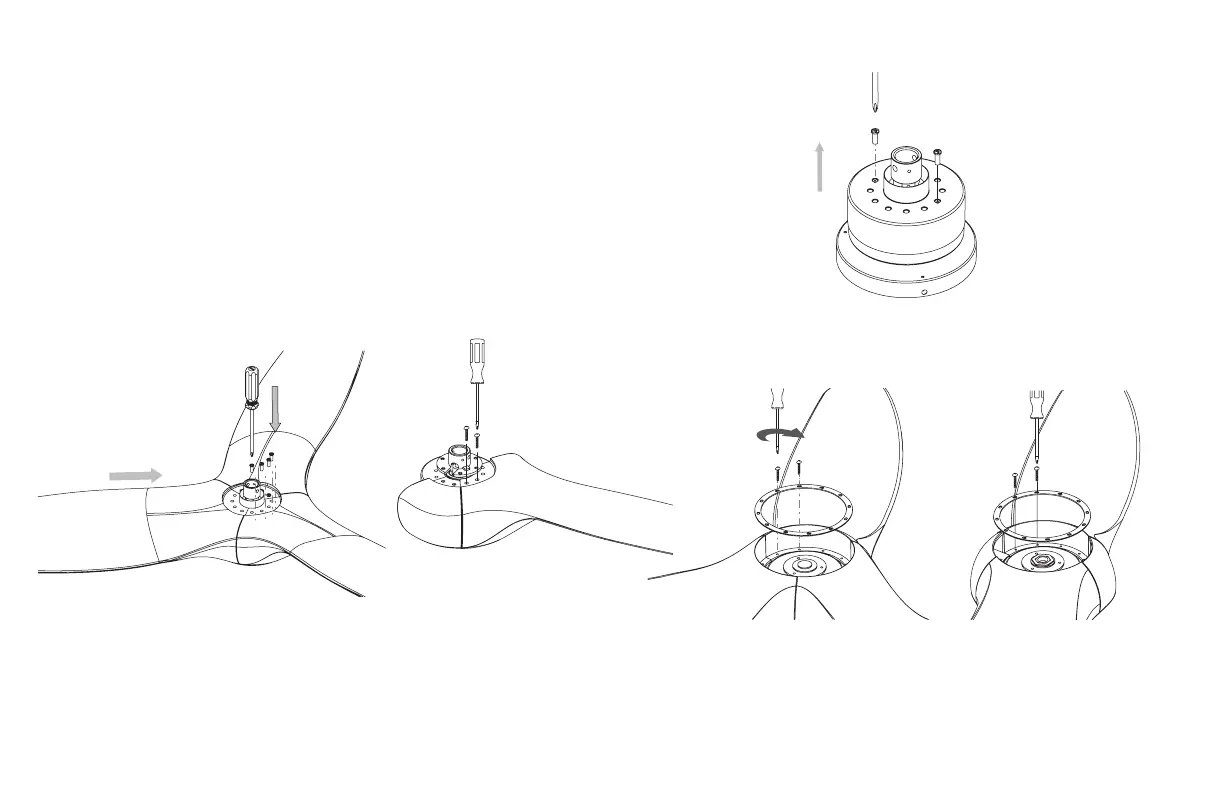

7. ATTACHING THE FAN BLADES
1. Remove and discard the 2 pre-installed screws on the motor as
shown (Fig. 8).
2. Attach the fan blades with the blade screws provided (Fig. 9).
3. For two bladed model position spacer between blades as shown
(Fig. 9 : Two Blades).
4. Turn the fan motor assembly over and install the blade collector
ring with the screws provided (Fig. 10).
FIGURE 8
5
FIGURE 10
FIGURE 9
Three Blades
Three Blades
Two Blades
Two Blades
