14 FR-W1812; FR-W1813
7. Making the Electrical Connections
WARNING: To avoid possible electrical shock, be sure electricity
is turned o at the main fuse box before wiring.
WARNING: Installation of this fan requires that a three-conductor
cable (including ground wire) which should run between ceiling
and wall outlet box.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts,
except for the ground wire.

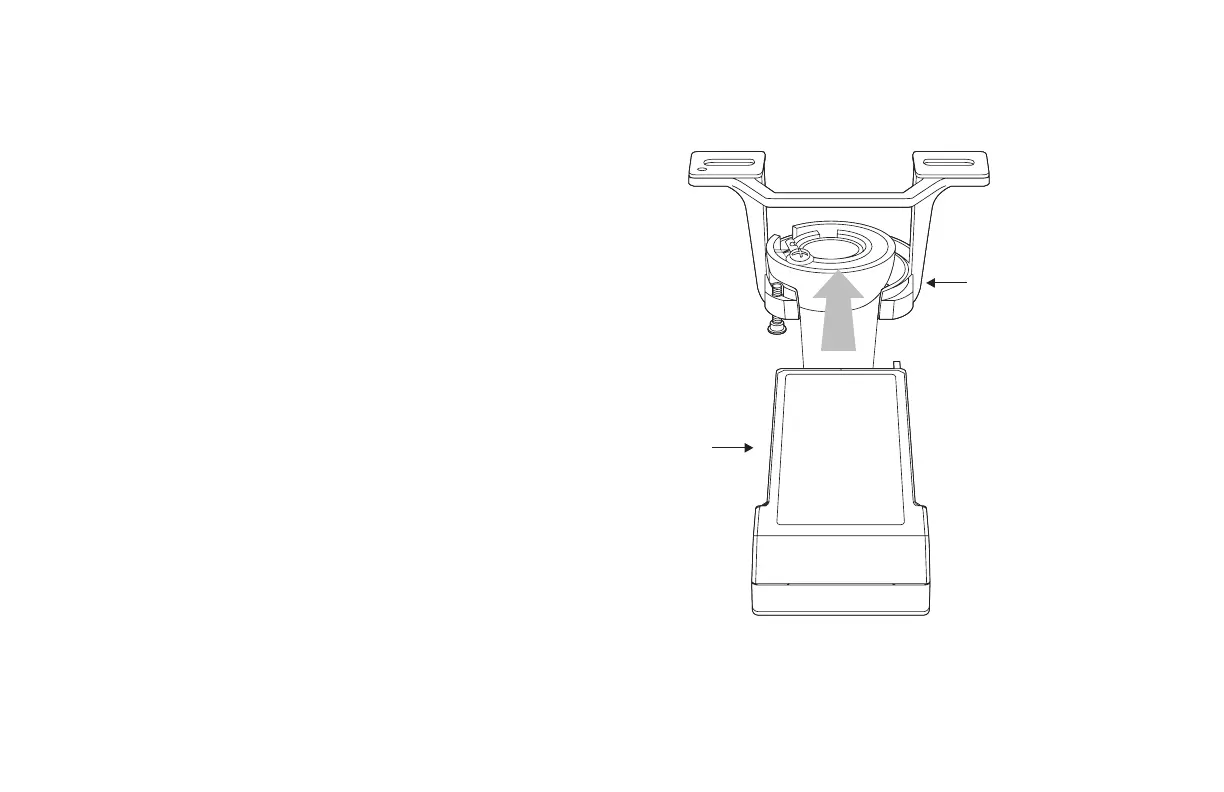

Insert the receiver into the mounting bracket with the at side
of the receiver facing the ceiling (FIG. 16).
Complete the follow steps below to connect the fan to your
household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure
there are no loose strands or connections.
FIG. 16
Mounting Bracket
Receiver
To Next Page
