Modern Forms MORPHEUS II - Installing the Wall Control; Wall Control Wiring Connections

16 FR-W1812; FR-W1813
8. Installing the Wall Control
1. Connect ground wires - Important for proper control function.
2. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that
feeds back to the breaker.
3. Connect the red wire from the control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the control to the white (neutral) wire from the wall outlet box.

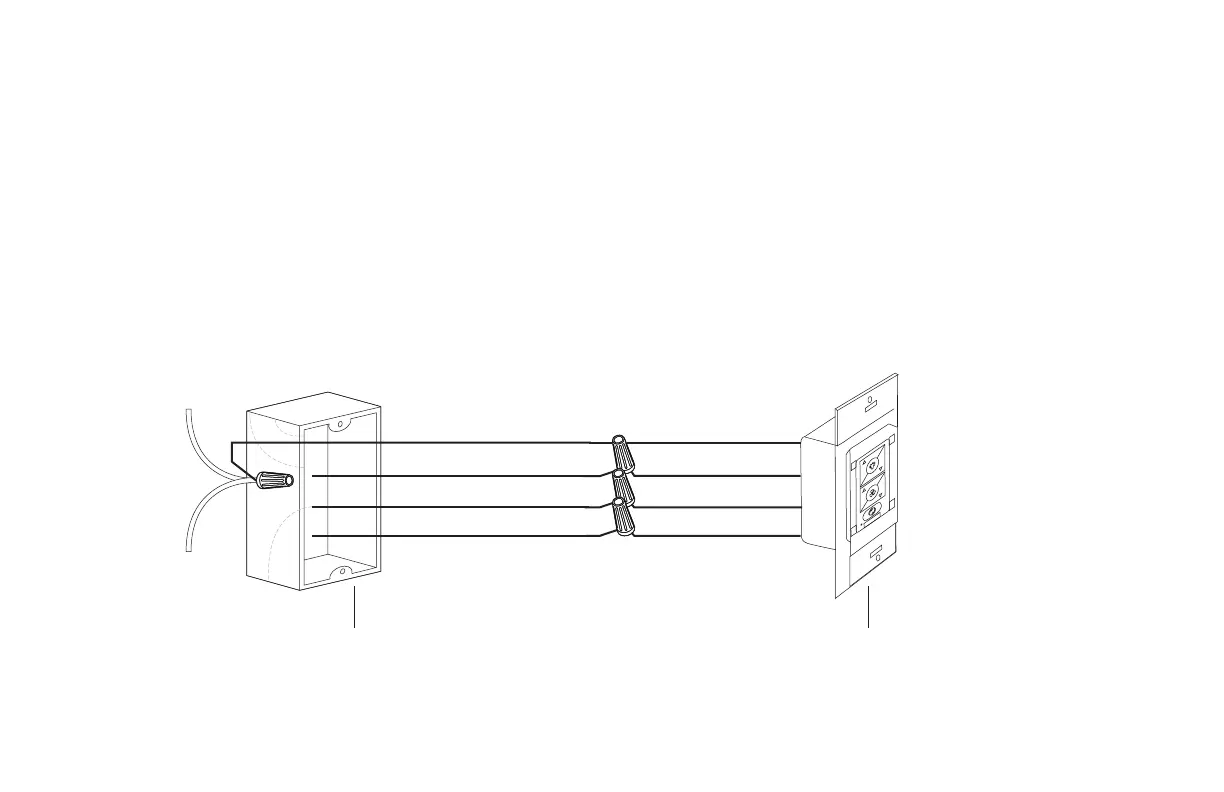

Wall control to wall outlet box electrical connections: (FIG. 18)
WARNING: Remember to shut the power o at the circuit breaker or fuse box.
FIG.18
White White
Red
Black
Green (Ground)
Black (To Fan)
Copper
Ground
Black (From Breaker)
Wall ControlWall Outlet Box
White
(Neutral)
