8. Installing the Wall Control (cont.)

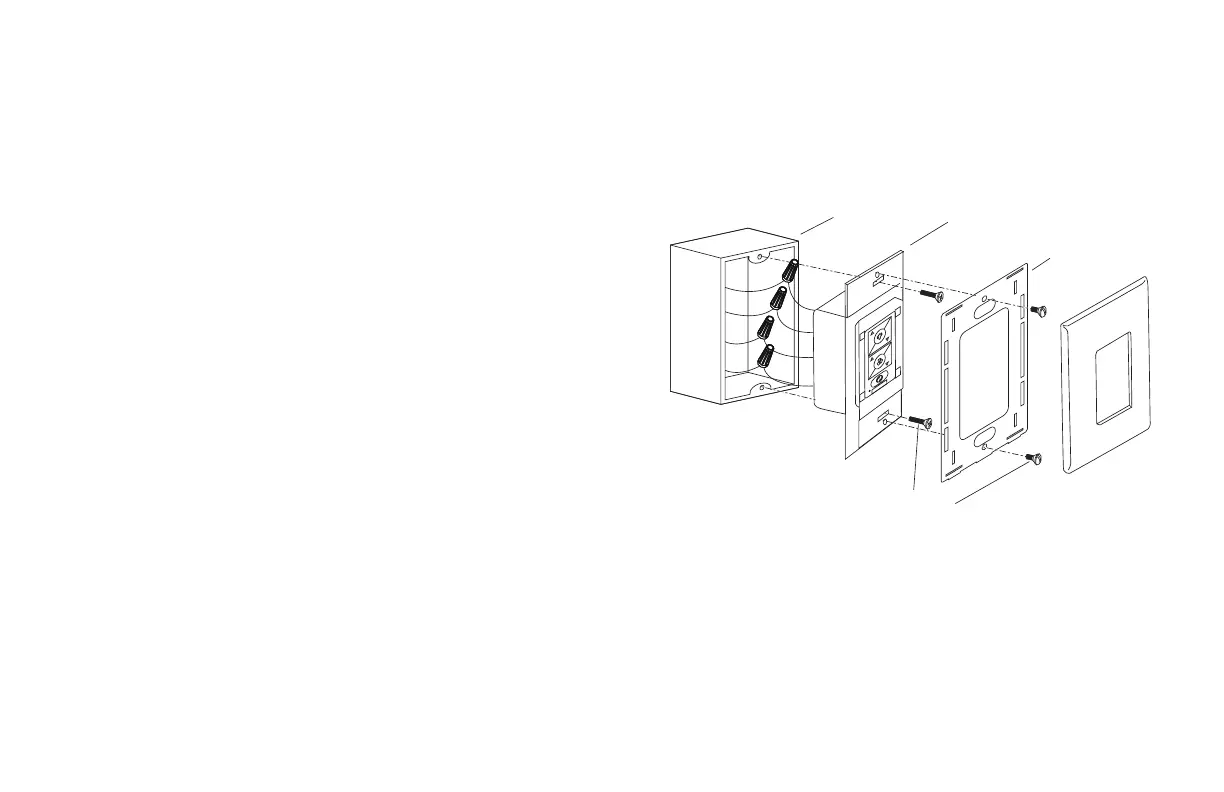

FIG. 19
1. Carefully tuck the wire connections inside the junction box.
Secure the wall control with the two wall control mounting screws
provided (FIG. 19).
2. Attach the wall mounting plate over the wall control and secure
with the two wall mounting plate screws provided.
3. Fasten the wall plate to the wall mounting plate.
NOTE: A maximum of 2 fans can operate on a circuit through the
wall control.
NOTE: A maximum of 12 fans can operate on a circuit through an on/
o switch or a breaker when utilizing the Modern Forms app
for the fan control (without the wall control in the circuit).
Wall Mounting Plate
Wall Outlet Box
Wall Control
Wall PlateMounting Screws
