This document provides assembly instructions for the EEI-6796 Pet Cabinet, a piece of furniture designed for indoor use. The assembly process is estimated to take approximately 60 minutes and requires two people.

Function Description:

The EEI-6796 Pet Cabinet appears to be a multi-functional furniture item, likely serving as a pet house or bed enclosure combined with storage. The design includes two top drawers, a fixed shelf, and a slatted lower compartment, which could be used as a pet den or additional storage. The slatted design suggests ventilation, making it suitable for housing a pet. The top surface and drawers provide additional utility for household items. The overall aesthetic is modern, featuring a clean design with tapered legs.

Important Technical Specifications:

The cabinet has specific weight capacities:

Top surface: Max 51Kgs (approximately 112.4 lbs)
Drawers: Max 5Kgs each (approximately 11 lbs)
Bottom compartment: Max 51Kgs (approximately 112.4 lbs)

The dimensions of various hardware components are provided for assembly:

Cam Bolts: Ø6 x 35 mm (Part A), Ø6 x 35 mm (Part A, Step 4), Ø6 x 35 mm (Part A, Step 5), Ø6 x 35 mm (Part A, Step 14)
Cam Locks: Ø15 mm (Part B), Ø12 mm (Part C), Ø15 mm (Part B, Step 9), Ø15 mm (Part B, Step 11), Ø15 mm (Part B, Step 12), Ø15 mm (Part B, Step 15)
Wood Dowels: Ø8 x 30 mm (Part D), Ø6 x 30 mm (Part E), Ø8 x 30 mm (Part D, Step 4), Ø8 x 30 mm (Part D, Step 5), Ø8 x 30 mm (Part D, Step 6), Ø8 x 30 mm (Part D, Step 7), Ø8 x 30 mm (Part D, Step 14), Ø8 x 30 mm (Part D, Step 16)
Screws:
- M 7 x 50 mm (Part F)
- M 6.4 x 53 mm (Part G)
- M 6.4 x 25 mm (Part H)
- M 4.5 x 12.5 mm (Part I)
- M 6 x 10.5 mm (Part J)
- M 8 x 39 mm (Part K)
- M 3.5 x 13 mm (Part L)
- M 3.5 x 15.5 mm (Part M)
- M 7 x 50 mm (Part F, Step 10), M 7 x 50 mm (Part F, Step 13)
- M 6 x 10.5 mm (Part J, Step 5), M 6 x 10.5 mm (Part J, Step 7)
- M 4.5 x 12.5 mm (Part I, Step 6), M 4.5 x 12.5 mm (Part I, Step 18)
- M 3.5 x 13 mm (Part L, Step 3)
- M 3.5 x 15.5 mm (Part M, Step 3), M 3.5 x 15.5 mm (Part M, Step 21)
- M 6.4 x 53 mm (Part G, Step 17)
- M 6.4 x 25 mm (Part H, Step 17)
Other Hardware:
- Wedge (Part P)
- Screw Cap Ø15 mm (Part Q)
- Rail Pocket Door (Part R)
- Hook Pocket Door (Part S)
- Push Latch Set (Part T)
- Flooring Mat (Part U)
- Drawer Runner (RM35A)
- Allen Key (Part N)
- Floor Protector (Part O)

The assembly involves various furniture components:

Top Board (1)
Bottom Board (2)
Side Board Left (3)
Side Board Right (4)
Center Board Small (5)
Center Board Big (6)
Fixed Shelf (7)
Assembly Leg (8)
Support Board 1 (9)
Support Board 2 (10)
Frame Door (11)
Front Drawer (12)
Side Drawer Left (13)
Side Drawer Right (14)
Back Drawer (15)
Bottom Drawer (16)
Back Board Small (17)
Back Board Big (18)

Usage Features:

Hand Tools Only: Emphasizes that only hand tools should be used for assembly, explicitly warning against power tools to prevent damage to hardware and the item itself.
Gradual Tightening: Instructions advise against fully tightening bolts or screws until all hardware is lined up and inserted, preventing stripping or cracking.
Protective Assembly Surface: Recommends assembling the item on a flat, carpeted area with ample space to prevent scratches or damage to floors and the furniture.
Child and Pet Safety: All components and packaging should be kept out of reach of children and animals to avoid choking or suffocation hazards.
Tipping Restraints Kit: Includes a kit with specific instructions for securing the furniture to a wall, crucial for safety, especially in homes with children or pets. The guidance specifies different fasteners for various wall materials (concrete, etc.) and recommends consulting a local hardware store for appropriate wall plugs and screws if the provided ones are not suitable. The installation involves attaching brackets to the furniture and the wall, then lacing a strap through them to prevent tipping.
Push Latch Mechanism: The frame door utilizes a push latch set (Part T), indicating a handle-less design for a clean look.

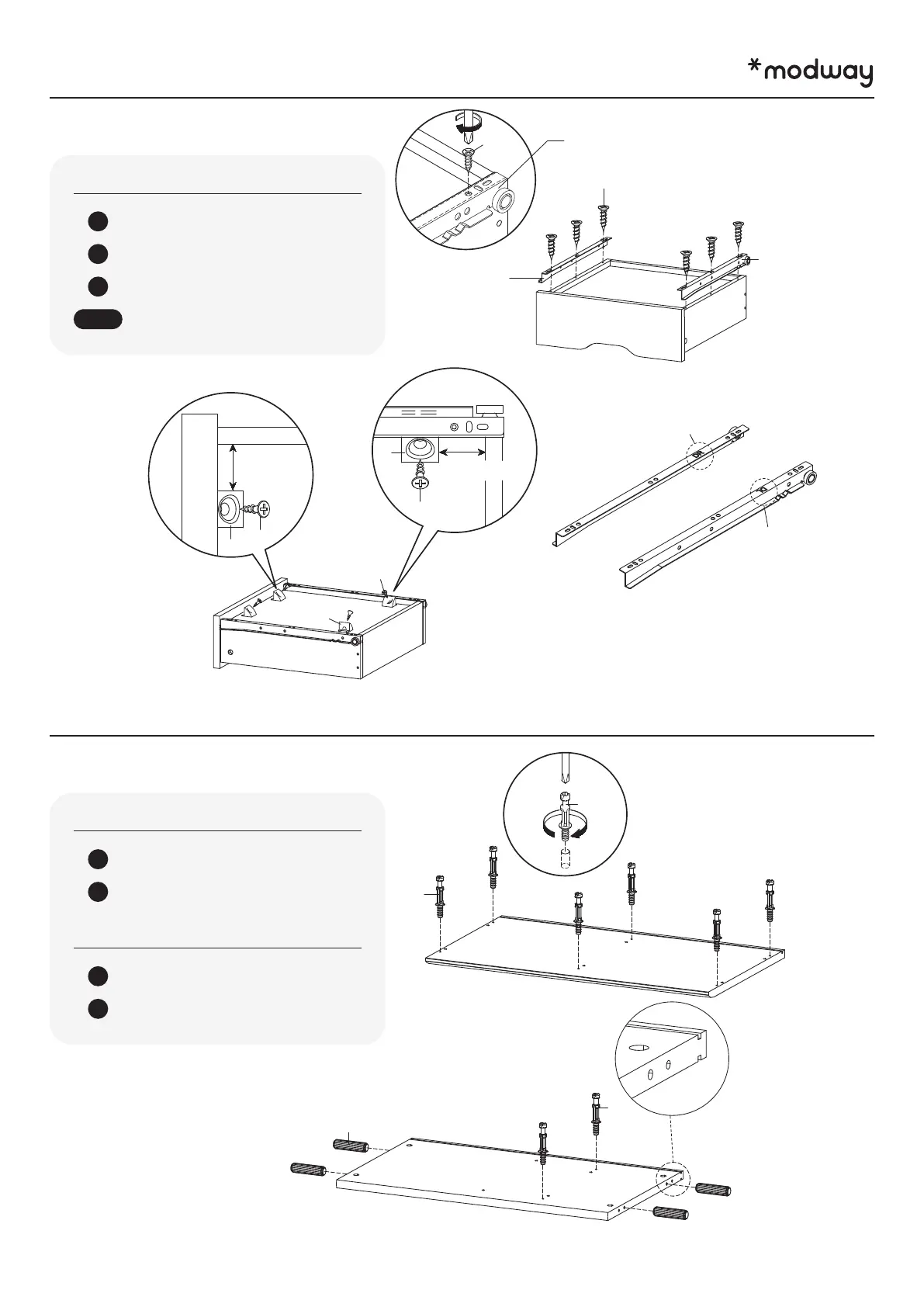

Drawer Runners: The drawers are equipped with RM35A drawer runners, suggesting smooth operation.
Flooring Mat: A flooring mat (Part U) is included, likely for the bottom compartment, which could provide comfort for a pet or protect the furniture surface.

Maintenance Features:

Indoor Use Only: The product is designed exclusively for indoor environments.
Non-Contract Grade: This classification indicates it's intended for residential use rather than heavy-duty commercial environments.
Cleaning Instructions: Recommends cleaning with a non-abrasive cloth and a mild cleaner.
Chemical Avoidance: Warns against using harsh chemicals, as they can damage the finish or integrity of the item.

Additional Information:

Contact Information: Provides customer service contact details (phone: 609.256.9000, email: cs@modway.com, website: www.modway.com) for missing parts, hardware, or assistance.
Social Media: Encourages users to connect on social media platforms (Instagram, Facebook, Pinterest) and tag @modway_furniture and #modway for a chance to be featured.
Warning Labels: The manual includes warning labels, likely related to tipping hazards, emphasizing the importance of securing the furniture to the wall. One label explicitly states "TOUJOURS Inter" (always intervene) and "LV" (live), suggesting a warning about potential danger if not properly secured.
