MOD-5472 TWIN BED FRAME
Bx2 Cx2
Gx1
Ex1
STEP 1:

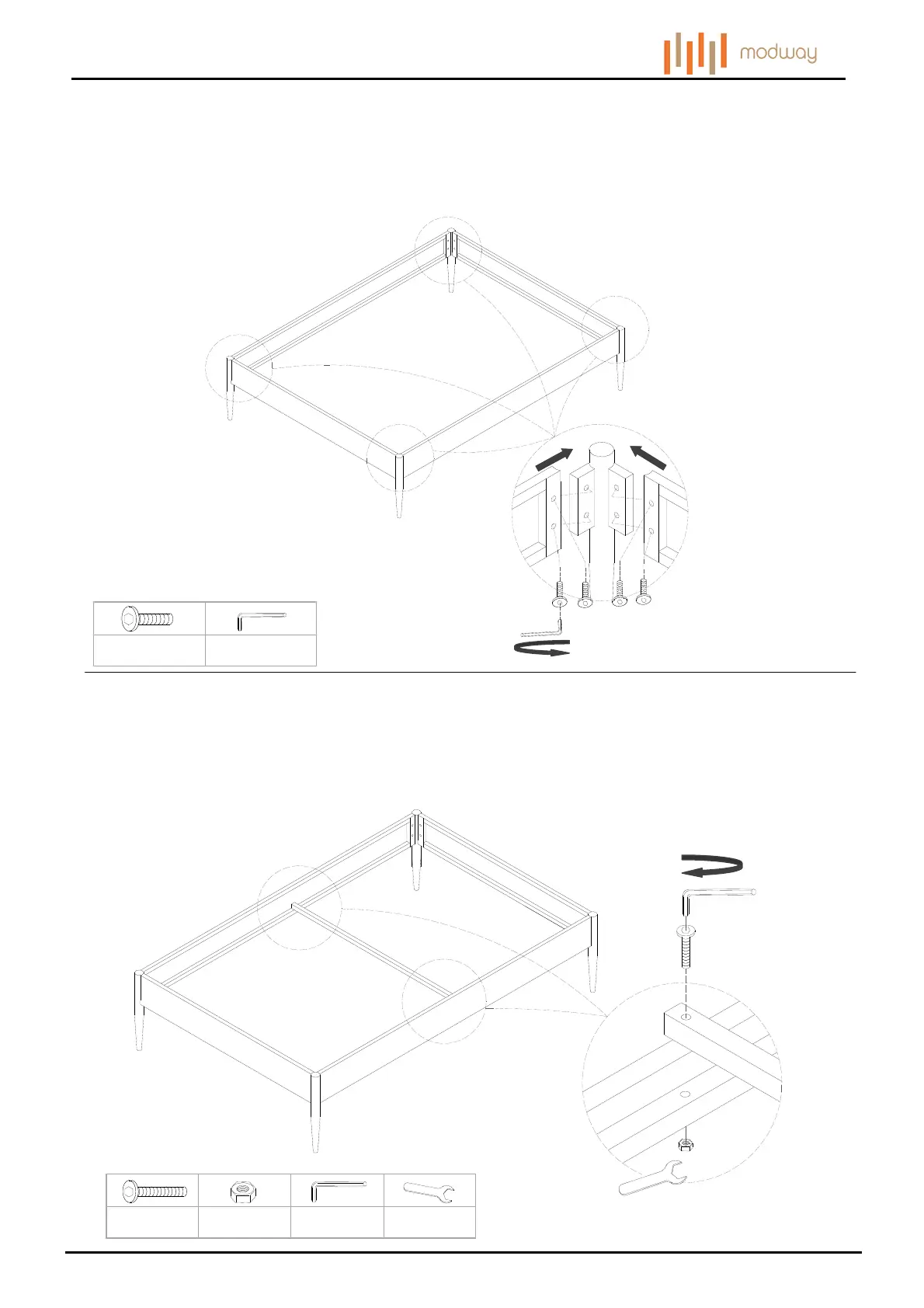

Inert the end of Leg (3) into Short Board (1) and Long Board (2) as shown.
Secure by using 4 pieces of Bolt (A), do not fully tighten Bolts (A) by using Allen Wrench (D) at this step.
Repeat the same steps for the remaining 3 pieces of Leg (3).
Tighten all Bolts (A) by using Allen Wrench (D) clockwise until secure.
STEP 2:
Place Stretcher (4) to the assembled Long Board (2) as shown.
Secure by using 2 pieces of Bolt (B) and 2 pieces of Nut (C) as shown.
Tighten Bolts (B) by using Allen Wrench (G) clockwise until secure.
