To reassemble the
handle: Work
backwards from
steps 3 through 1.

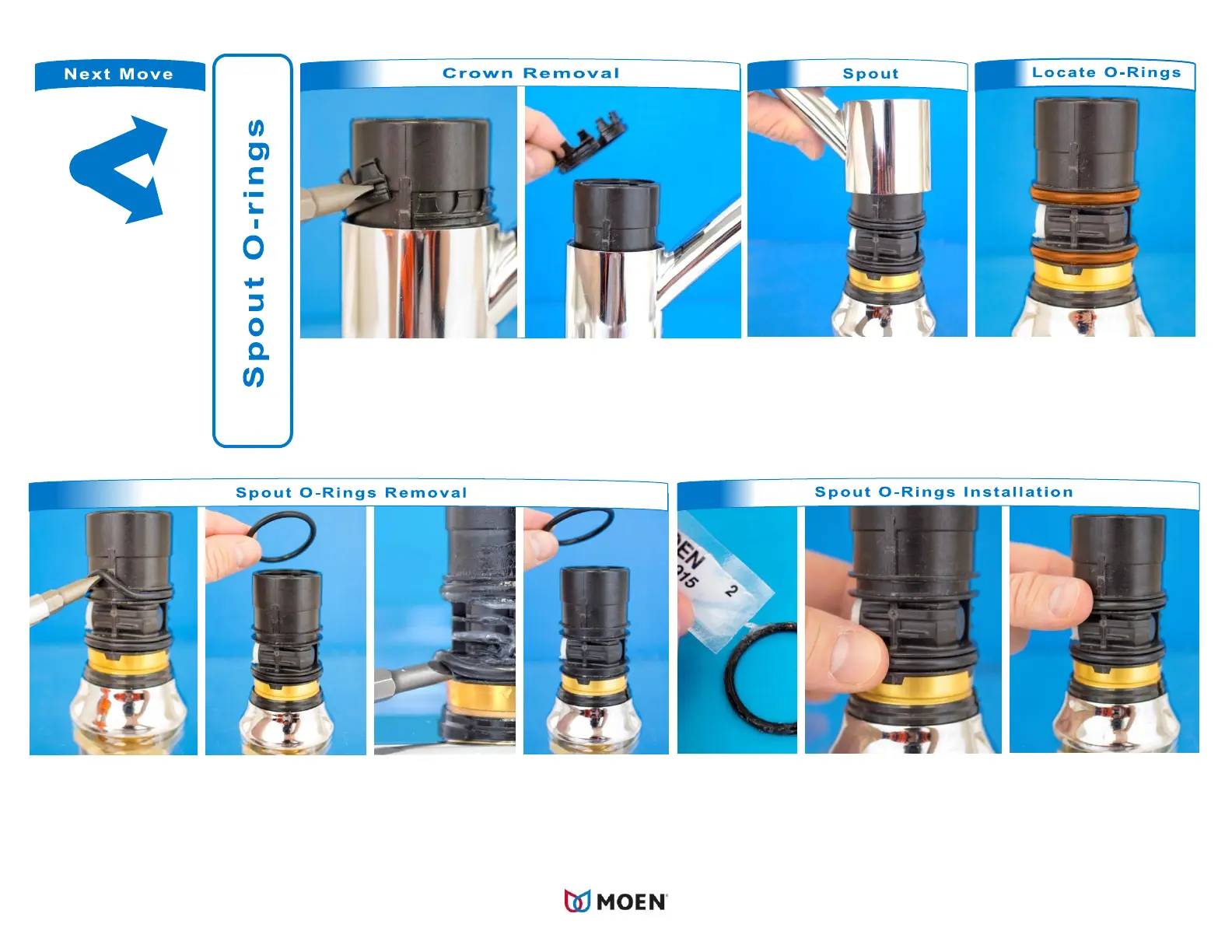

To install spout
O-rings:
Move to step 9.
Gently pry up on the black crown ring. Be careful not
to damage the crown ring; this will be used again
during reassembly.
9
10
Grab the spout and lift up
to remove the item from
the faucet body.
11
In the photo above, the
upper and lower O-rings
are highlighted in orange.
Pry each O-ring out to remove. Be careful not to damage the valve body.
Using the supplied pouch of grease, apply a thin layer of grease
to each rubber O-ring. Place a new rubber O-ring onto the black
valve body and push down until fully seated in the lowest groove.
Place the next O-ring onto the top groove in the valve body.
12
13

Moen 1255 Specifications

General

Material	Plastic
Model Number	1255
Lifetime Limited Warranty	Yes
Cartridge Type	Duralast 1255
Compatibility	Single Handle Faucets
