LCD Display
Model
05

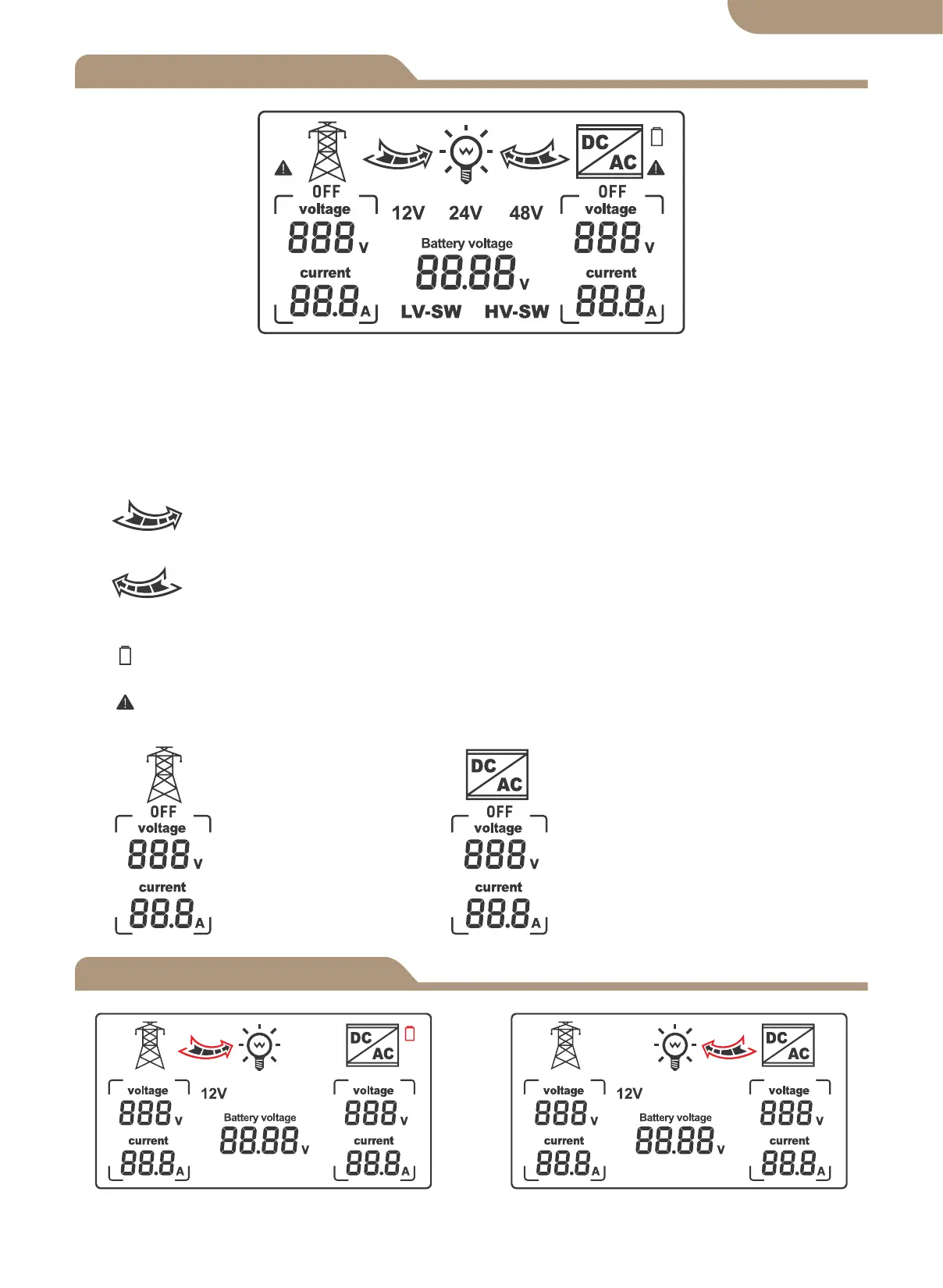

Automatic mode switching grid status Automatic mode switching inverter
state
1. When LV-SW is displayed, it is the function interface for setting battery low voltage
switching voltage.
2. When HV-SW is displayed, it is the function interface for setting the battery low
voltage recovery voltage.
3. 12V, 24V, 48V is the corresponding display voltages after respectively indentified by
the system.
4. The right arrow shows switching to the public power,and the internal grid
flashes to display the current output state,no display when no current output.
5. The left arrow shows switching to the inverter, and the internal grid flashes
to display the current output state, no display when no current output.
6. The battery icon displays the low voltage switching state with flashing perfor-
mance.
7. Displayed with flashing performance when there is the failure of non-voltage AC
current.
8.
Corresponding grid
display on AC voltage
and current.
Corresponding inverter
display on AC voltage
and current.
