Moffat G32 - Access; Control Panel; Service Panel (Side Panel); Service Panel (Rear Panels)

-31-
Revision 5/F3528
Two Screws
Two Screws

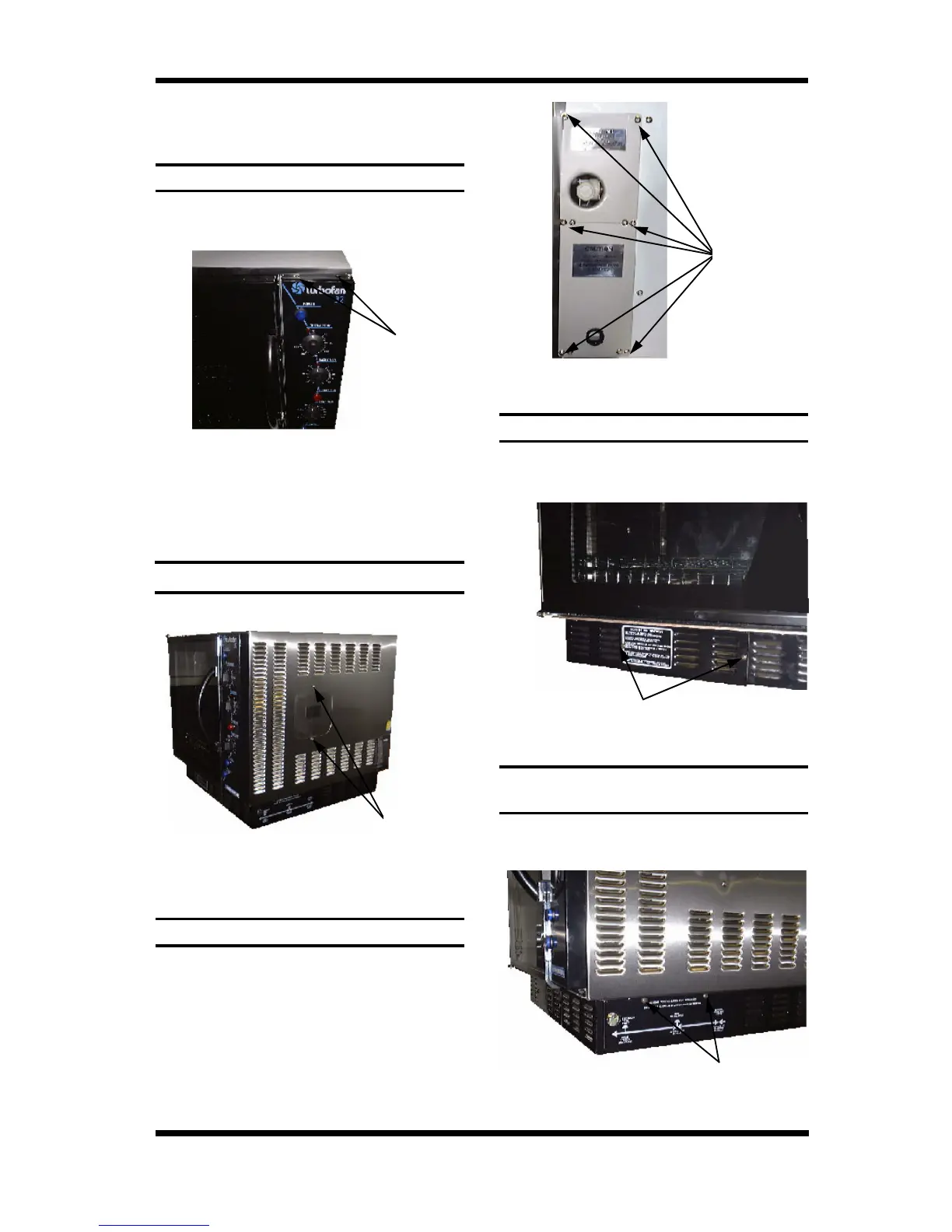

6.2 ACCESS
6.2.1 CONTROL PANEL
1) Undo the two screws on top of control
panel.
1) Undo the two screws holding the panel.
6.2.2 SERVICE (SIDE) PANEL
1) Undo the six screws holding the panels.
2) Remove panels.
6.2.3 SERVICE (REAR) PANELS
2) Panel is now free to hinge at bottom.
When closing the panel ensure wires and
capillary tube are clear of metal or other
terminals.
Figure 6.2.1
2) Remove panel.
Figure 6.2.2
Figure 6.2.3
Six Screws
6.2.4 BURNER ACCESS PANEL
6.2.5 MANUAL ISOLATING VALVE / GAS
CONTROL VALVE ACCESS PANEL
Figure 6.2.5
Figure 6.2.4
1) Undo two screws holding the panel.
2) Remove panel.
Two Screws
1) Undo two screws holding the panel.
2) Remove panel.
Two Screws
