-43-
Revision 5/F3528

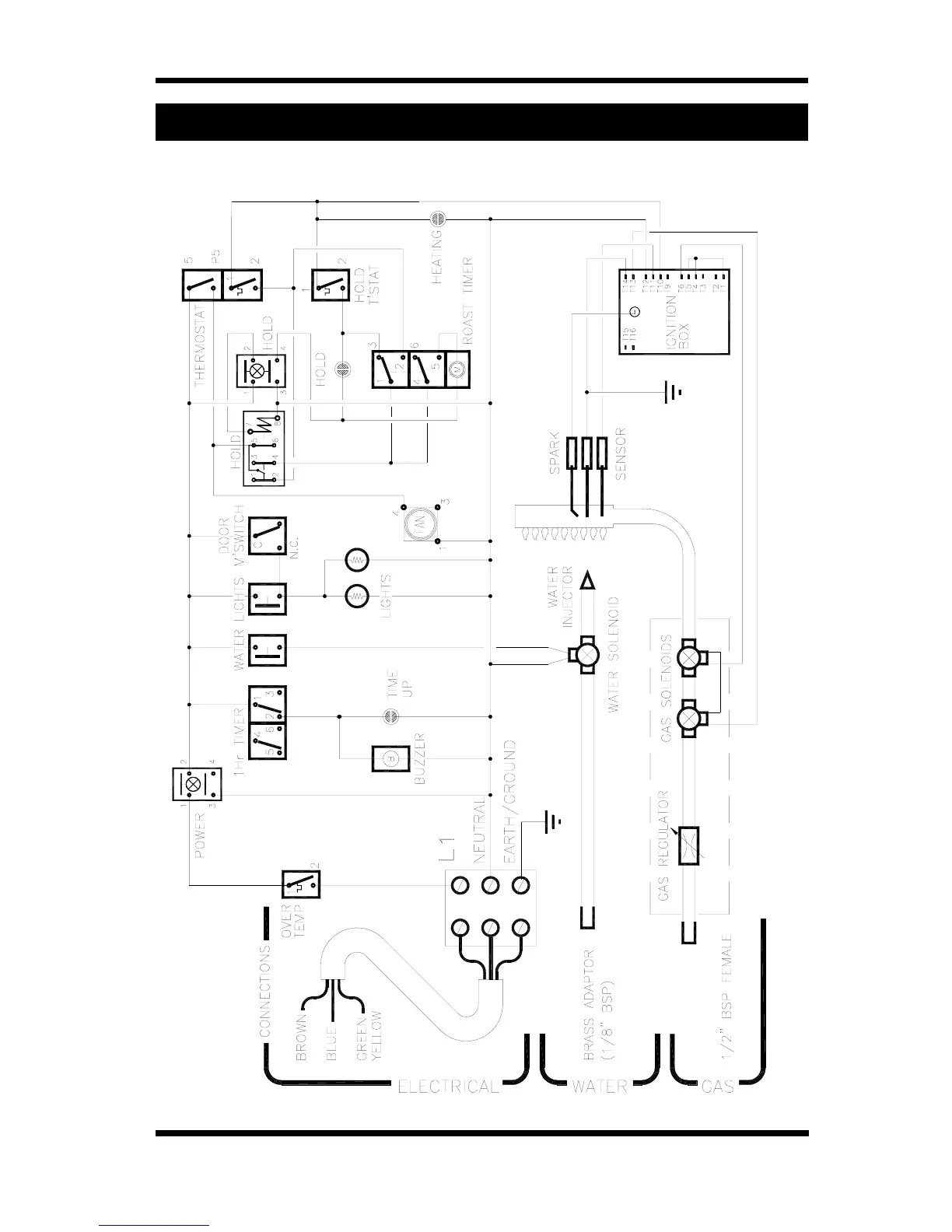

7. CIRCUIT SCHEMATICS
7.1.1 220-240V 50Hz (UK ONLY) - FROM SERIAL NO 203927
For units pre serial number 203926 refer section 7.1.2
