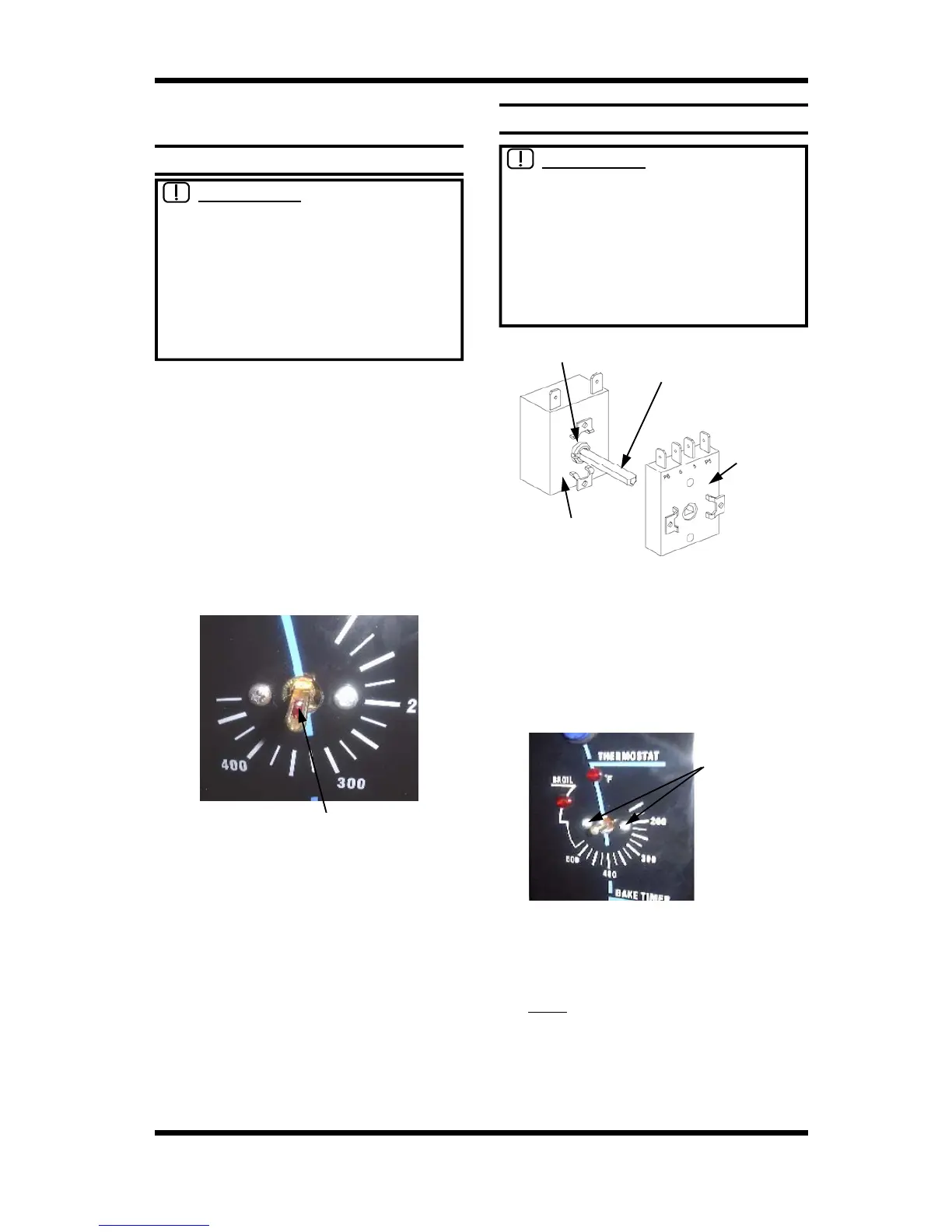

Moffat turbofan E25 - Adjustment and Calibration

Revision 6/F3501
© Moffat Ltd, August 2006 E25 Convection Oven
-28-
Thermostat Shaft
Broil Switch
1) Turn off power.
2) Remove thermostat knob by pulling it
firmly away from control panel.
3) Open control panel (refer 6.2.1). Remove
two screws on control panel holding
thermostat.
4) The thermostat can now be removed.
5) Carefully remove two screws holding broil
switch to thermostat.
HINT:
Tape broil switch assembly to-
gether before removal to prevent it from
springing apart.
Figure 6.4.3
Calibration Nut
Thermostat
Figure 6.4.2
6.4.2 THERMOSTAT CALIBRATION - E25B
IMPORTANT: IF THE OVEN
TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.
6.4 ADJUSTMENT / CALIBRATION
6.4.1 THERMOSTAT CALIBRATION - E25
IMPORTANT: IF THE OVEN
TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.
1) Turn off power.
2) Remove thermostat knob by pulling it
firmly away from control panel.
3) Adjust the calibration screw located in the
centre of the thermostat shaft.
To increase oven temperature, turn
calibration screw anticlockwise.
To decrease oven temperature, turn
calibration screw clockwise.
Adjustment of the calibration screw by 1°
angular will alter oven temperature by
approximately 0.8°C (1.5°F).
Two Screws
Calibration Screw
Figure 6.4.1
